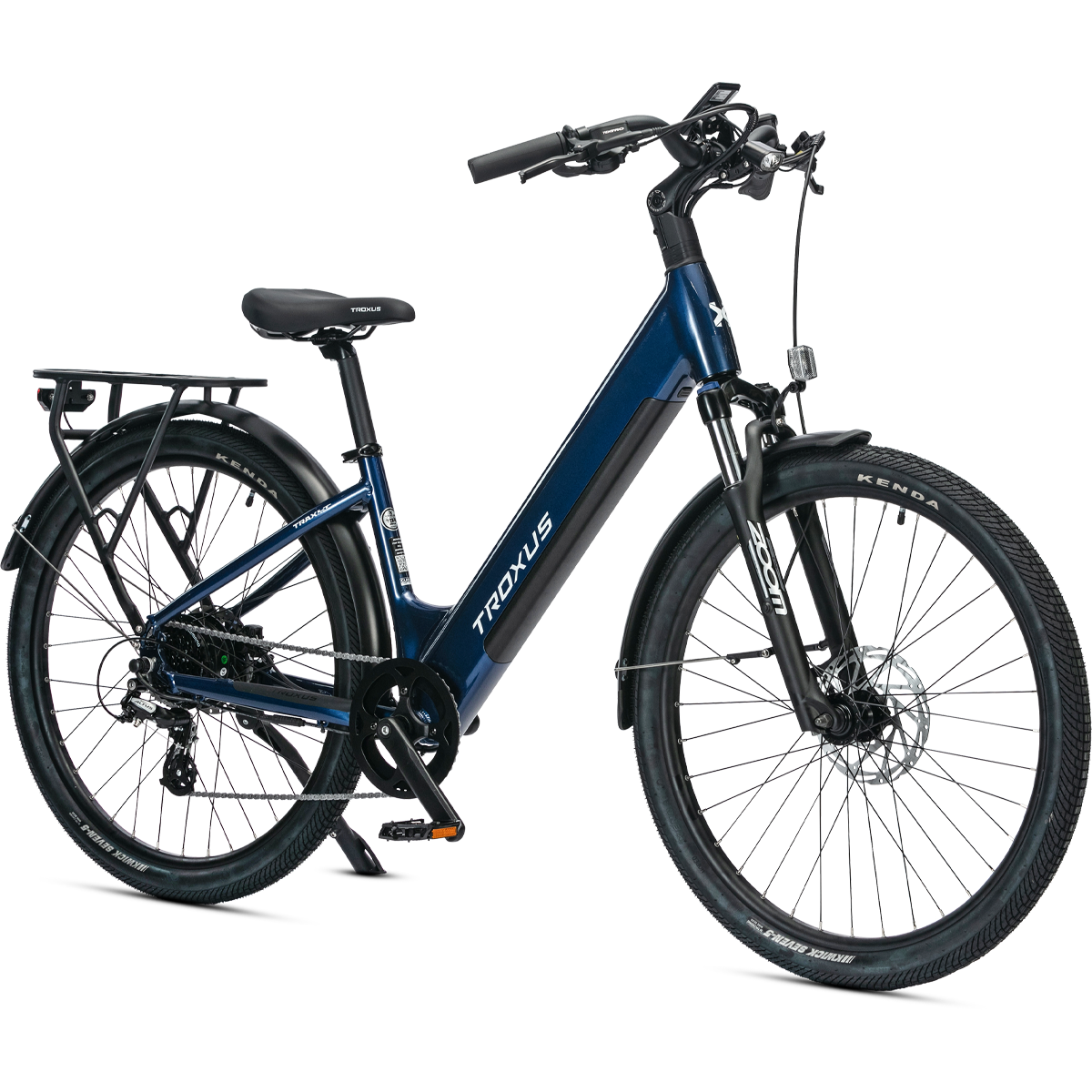

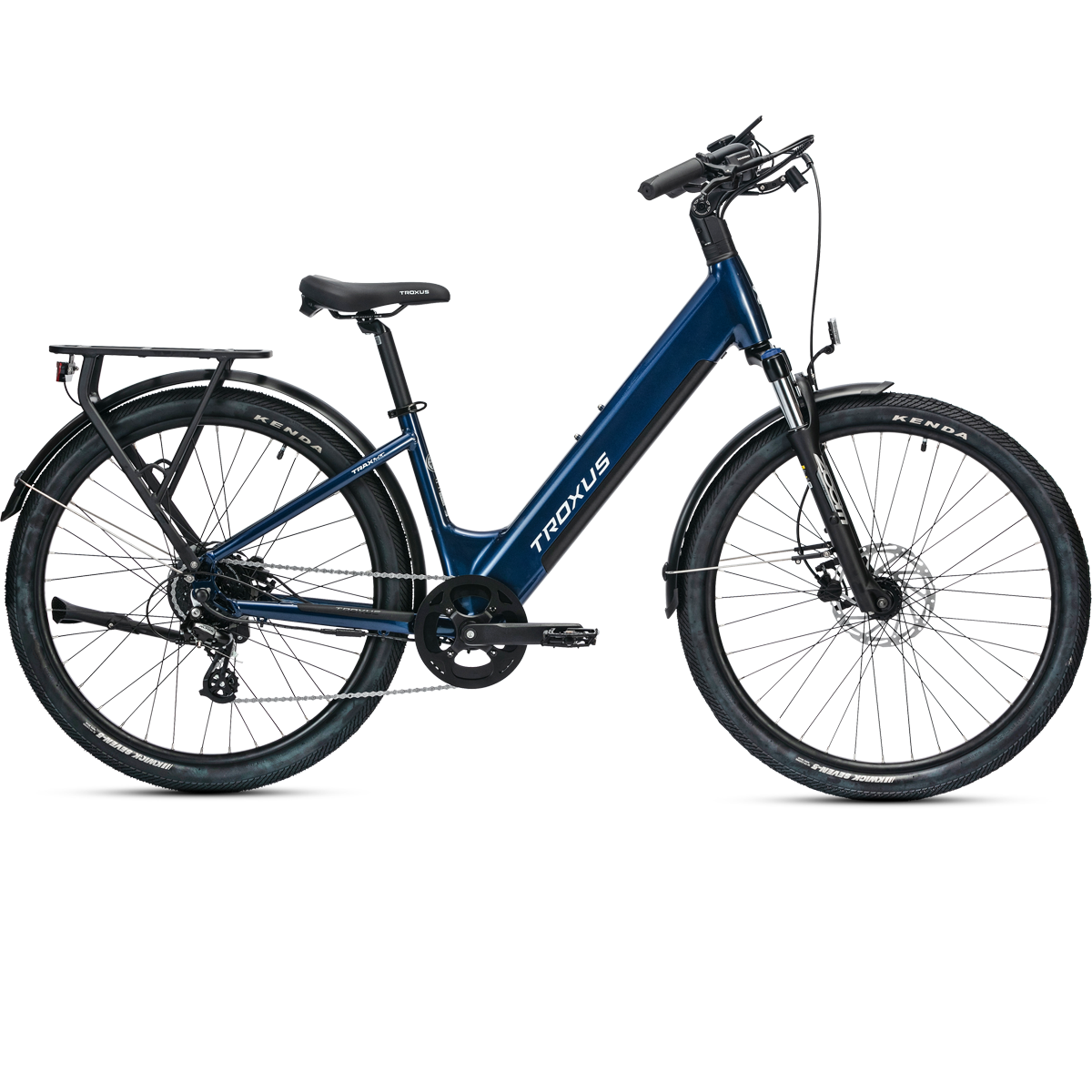

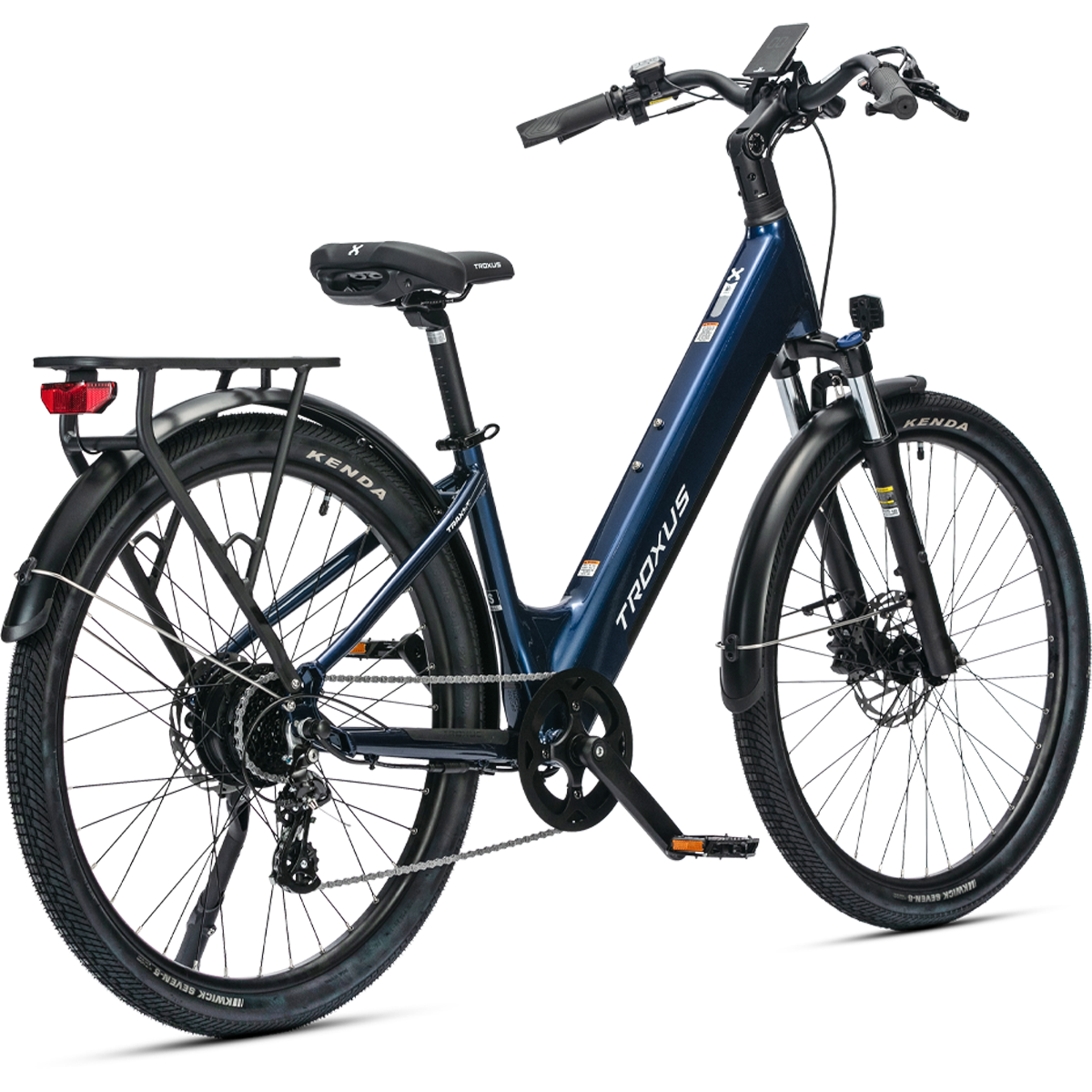

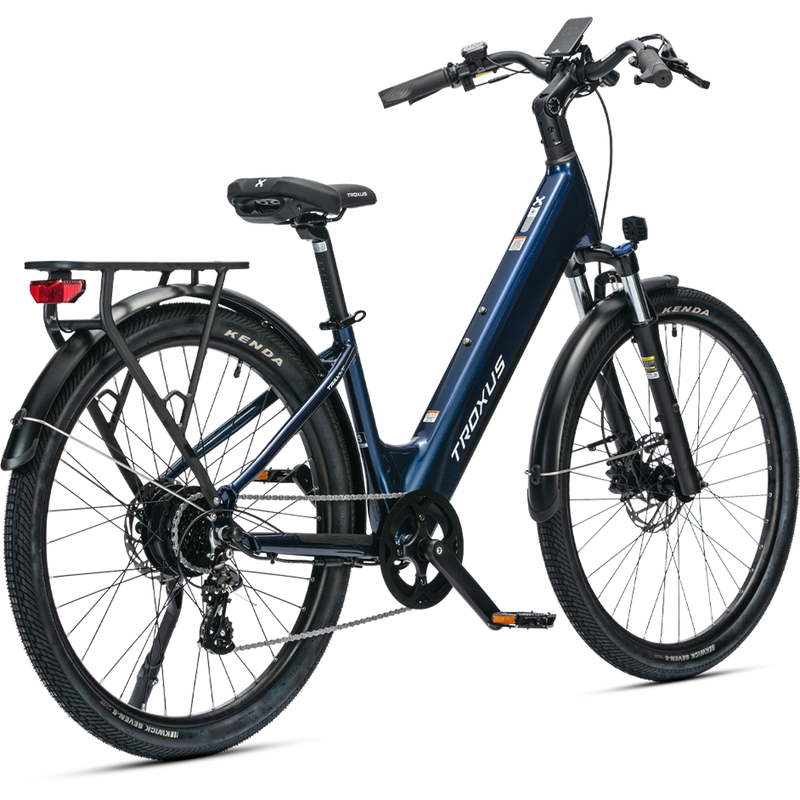

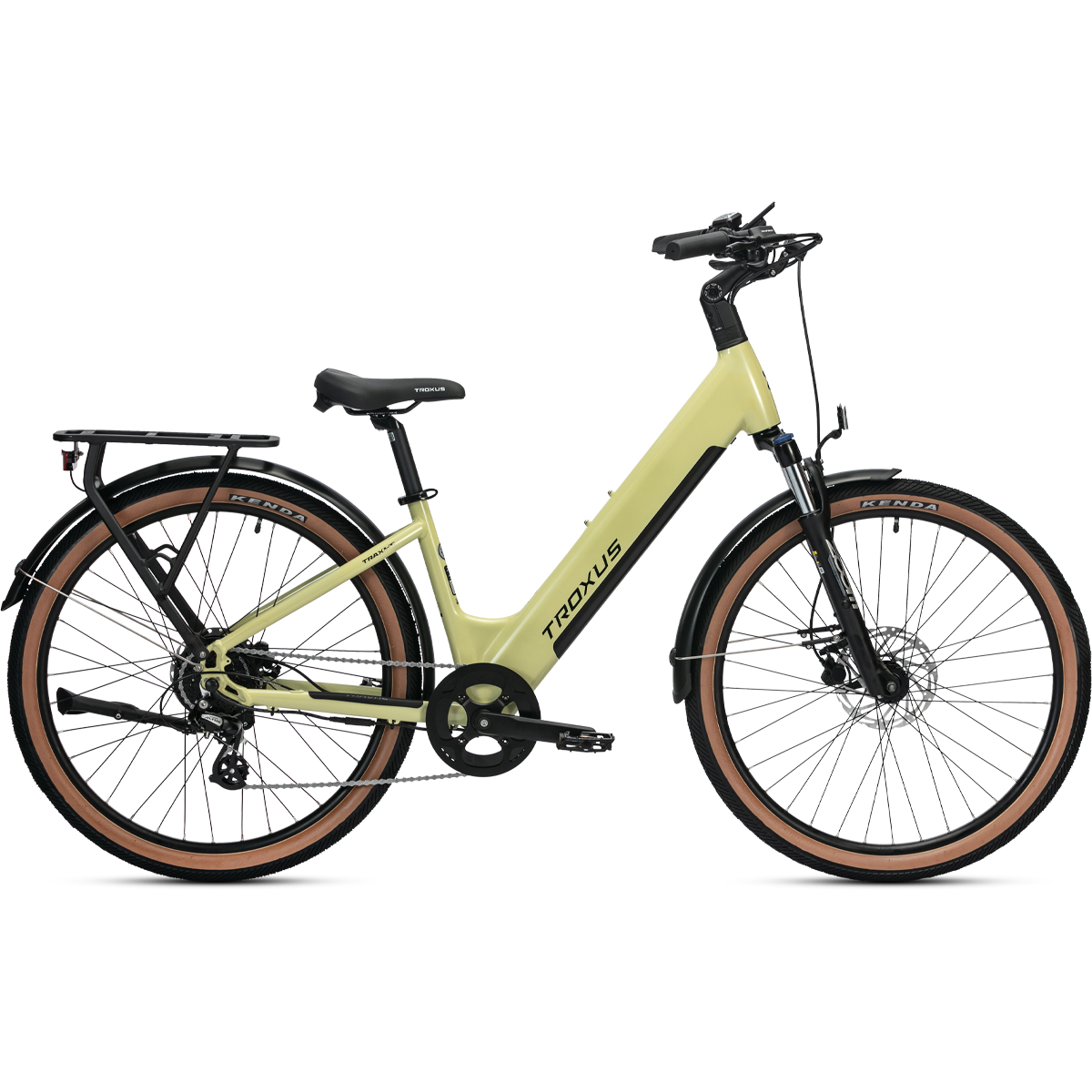

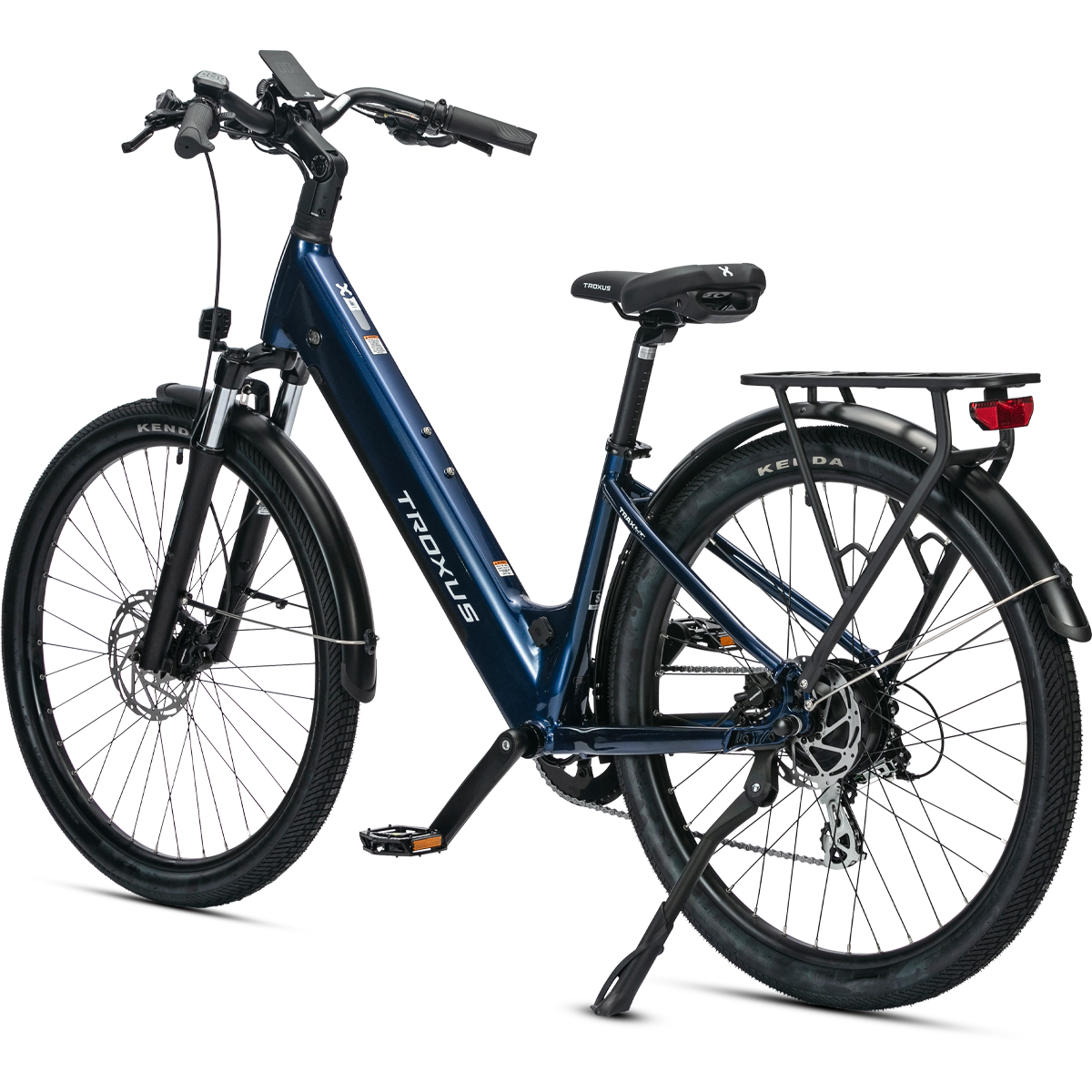

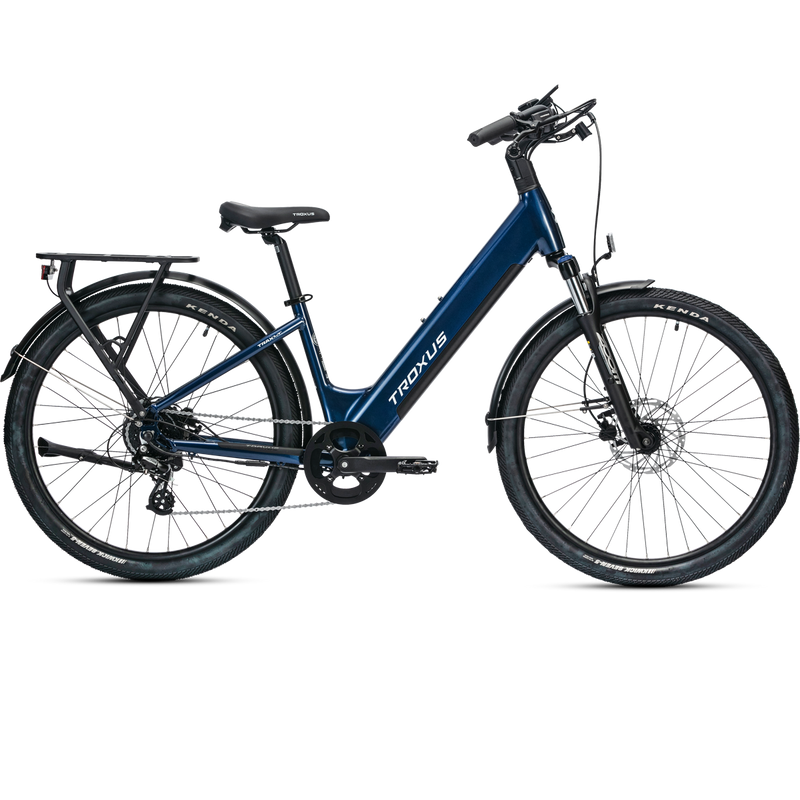

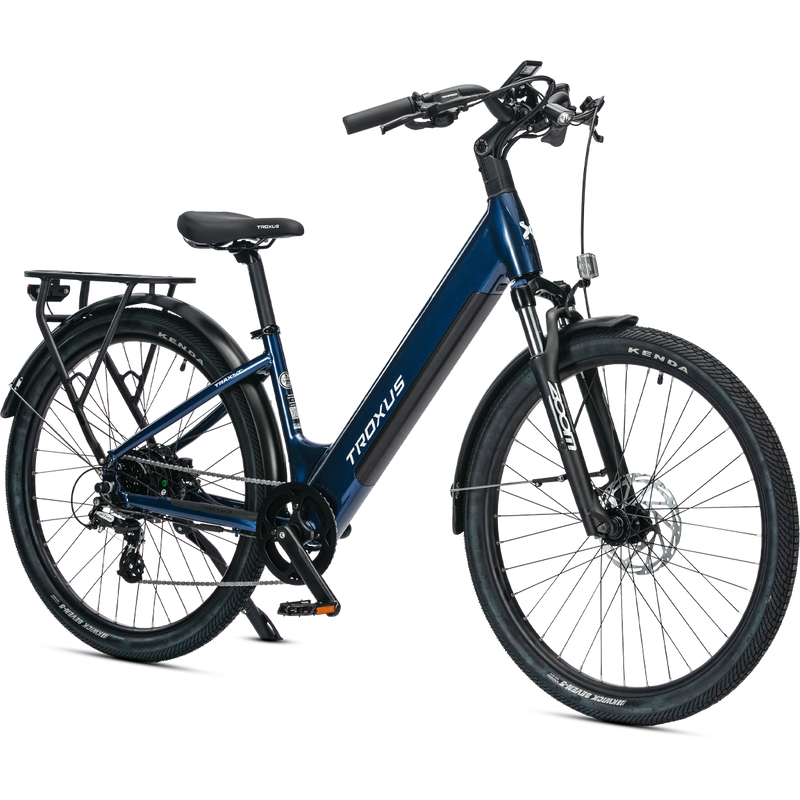

Trax LT Step-Thru
The Trax LT is your ultimate partner for urban adventures. Lightweight yet remarkably powerful, this e-bike is built for effortless commutes and smooth, enjoyable rides. Need more range? Upgrade with the optional 240Wh battery (sold separately) for e
The Trax LT is your ultimate partner for urban adventures. Lightweight yet remarkably powerful, this e-bike is built for effortless commutes and smooth, enjoyable rides. Need more range? Upgrade with the optional 240Wh battery (sold separately) for extended journeys. Equipped with hydraulic disc brakes, a vibrant color display with Bluetooth connectivity, and versatile features, the Trax LT enhances every ride. Ready to transform your daily commute and explore the city effortlessly? Let’s hit the road!
- Go Further, Ride Longer: The LT's 480Wh battery is built to keep you moving, powering your rides far and wide. Want even more freedom? Add the optional 240Wh piggyback battery (sold separately) to extend your range and explore without limits. Adventure awaits
- Intelligent Riding, Made for You: Elevate your ride with smart features designed just for you. Switch between torque and cadence sensor modes for ultimate control, and enjoy a Bluetooth-enabled color display that keeps you connected. Customize your ride, track your stats, and make every trip uniquely yours
- Safety & Utility: Stay safe and organized on every journey. The reliable hydraulic disc brakes deliver powerful stopping power for smooth and secure rides. Need to bring your gear? The MIK-compatible lightweight rear rack is ready to carry it all. Wherever the road takes you, the Trax LT has you covered. Get ready to ride with confidence and style
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
Returns & Price Matching
| COMPONENT | PART |
|---|---|
| Motor | Jiabo 48V/350W Hub-Drive Motor, 50Nm. Peak Torque |
| Battery | UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/10Ah (480Wh) with Samsung® Cells, w/ Option for Additional 240Wh Piggy-Back Battery (sold separately) |

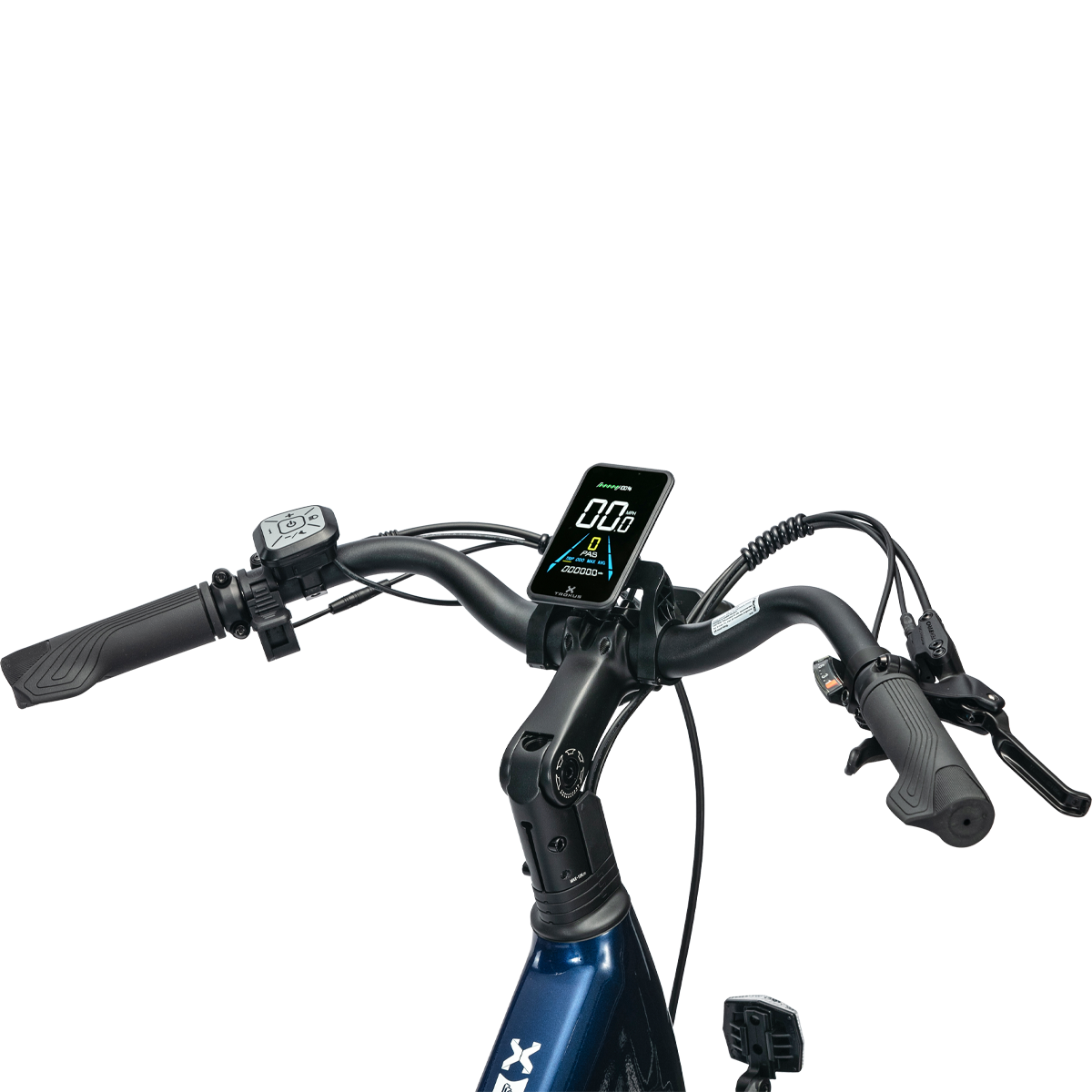

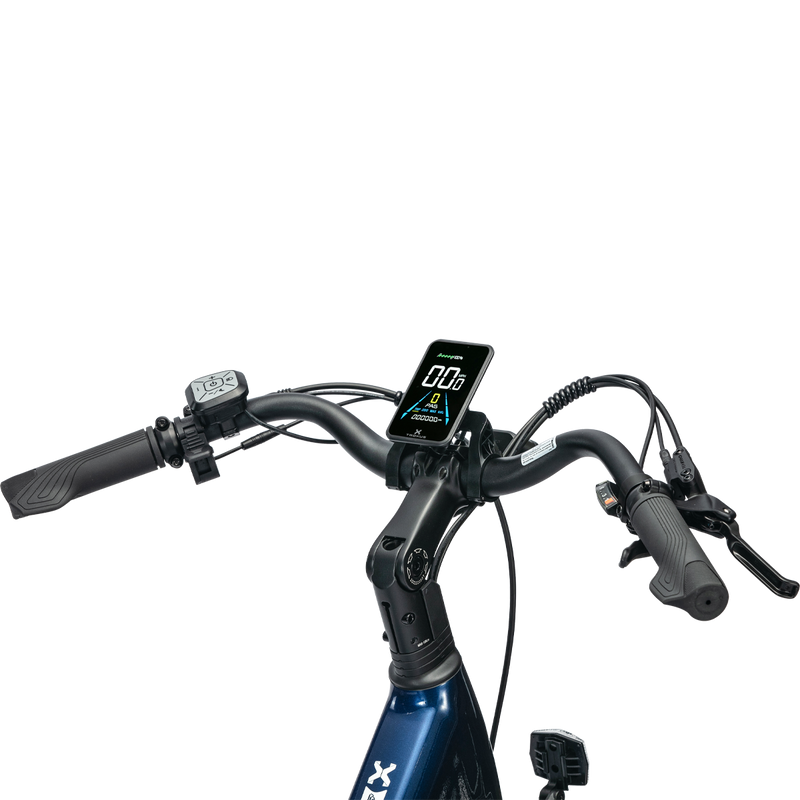

| Display | Color Display, Bluetooth, w/ Multi-Function Remote |
| Sensor | Switchable Torque And Cadence Sensor Modes |
| Pedal Assist | 0~5 Level Pedal Assist |
| Charger | 2A / 100-240V Input / 54.6V Output |
| Lights | 30 Lux Front Light, Rear Light |
| Controller | 48Vx15A/12V |
| Frame | Hydroformed Aluminum Step-Thru Lightweight Frame |
| Fork | Zoom® Front Suspension Fork, 65mm Travel |
| Chain | KMC® 1/2"x3/32" |
| Crankset | Aluminum, 44T, w/ Alloy Chainring & Single Chainguard, Square Taper, 170mm |

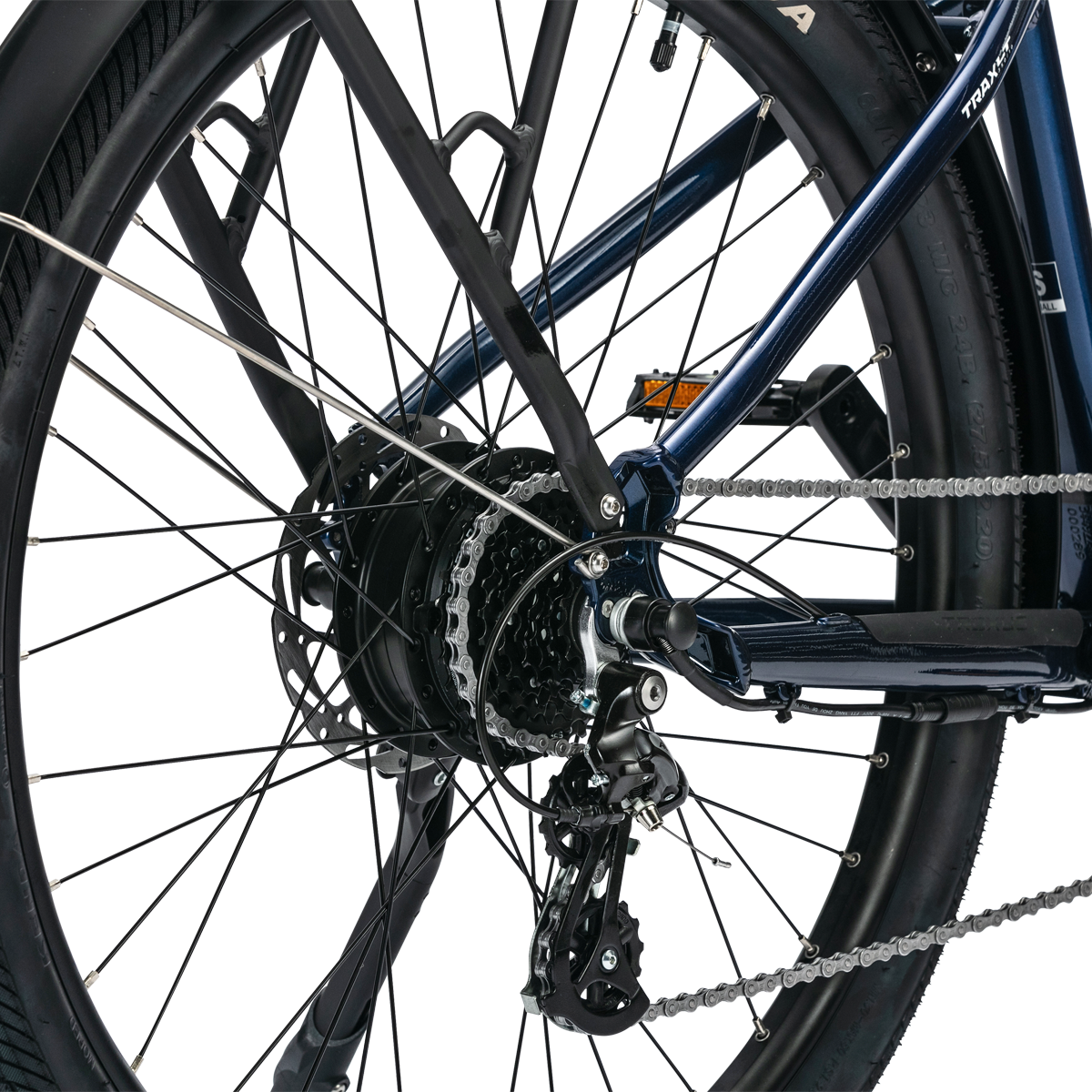

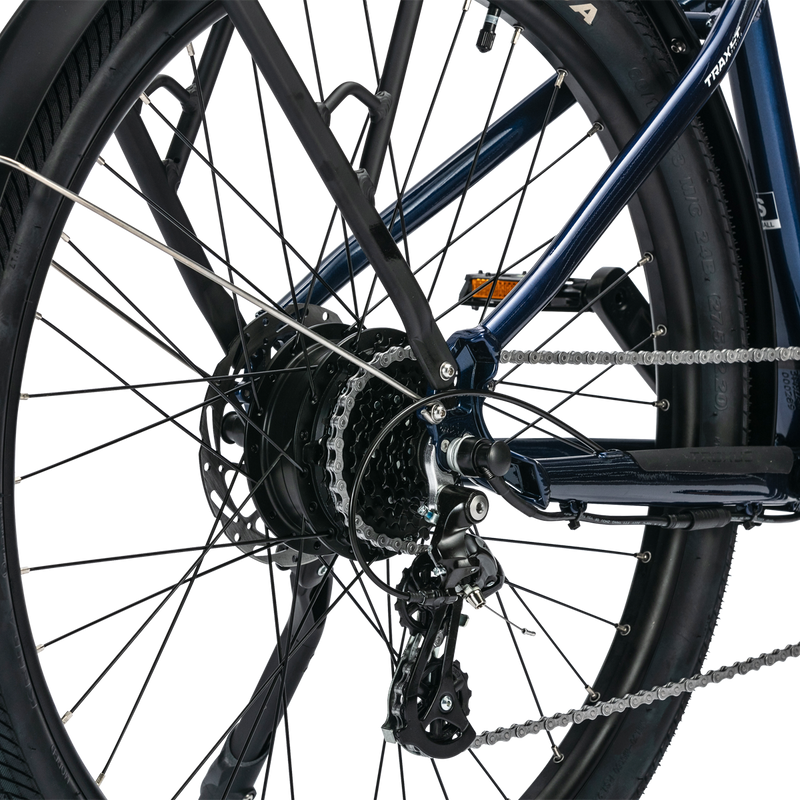

| Rear Derailleur | Shimano® RD-M310-L, Altus, 8-Speed |
| Cassette | Shimano® 8-Speed, 12-32T |
| Shifter | Shimano® 8-Speed |
| Bottom Bracket | Square Taper Sealed Bearings, Torque & Cadence Sensors Included |
| Tires | KENDA® 27.5"x2.2" |
| Front Hub | Alloy, 36H,100mm, 3/8"Axle |
| Rear Hub | Jiabo® 48V 500W/ 20 MPH, 50Nm. Peak Torque |
| Rims | Alloy Double Wall, 27.5"x2.0" w/ Eyelets |
| Spokes | Stainless 14G. Front / 13G. Rear |

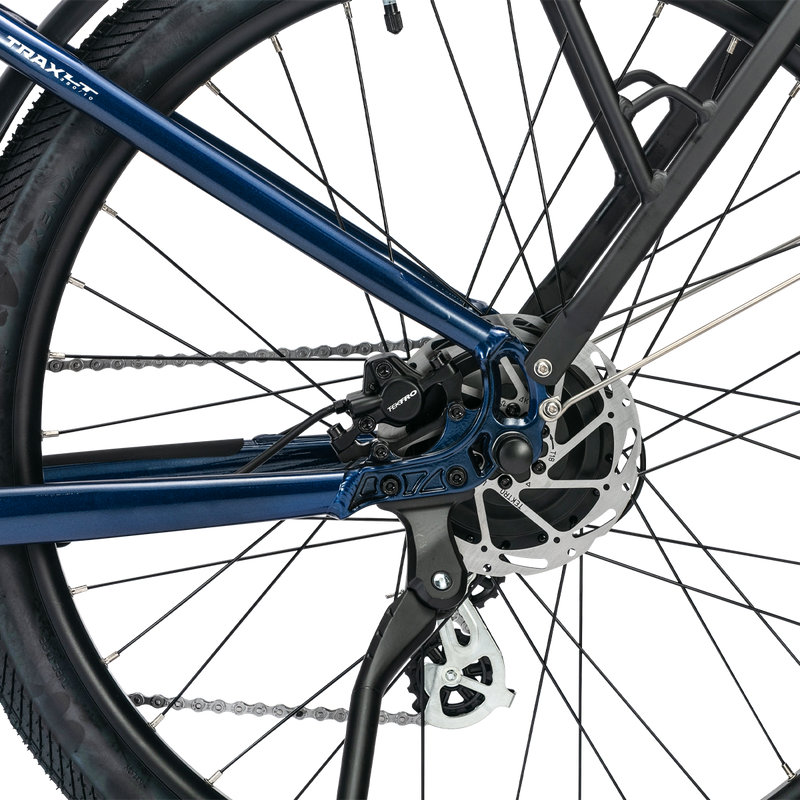

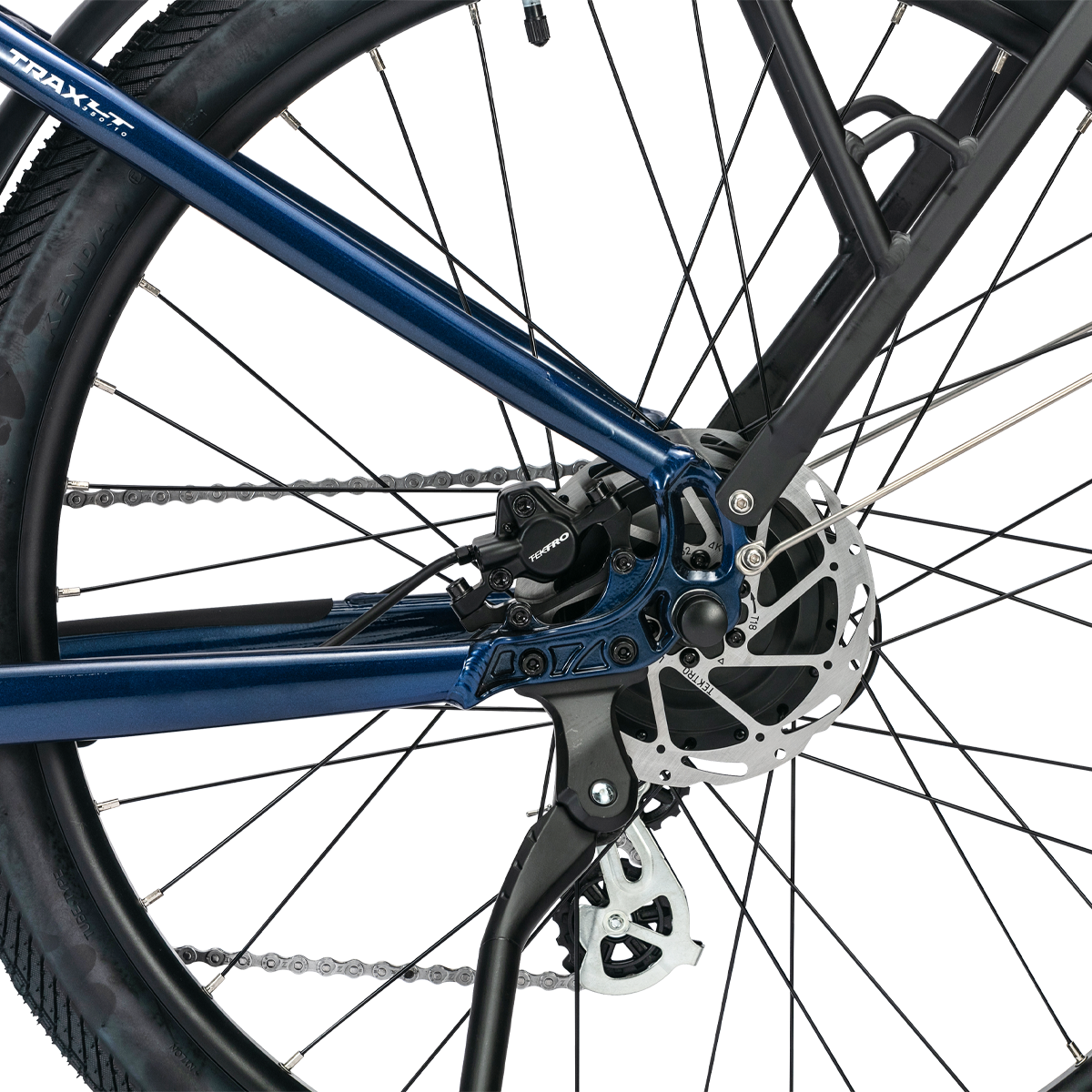

| Brakes | Tektro® Hydraulic, w/ Brake Sensors |
| Rotors | 180mm / 180mm |
| Saddle | DDK DE-430 Comfort / 200mm Wide |
| Seat Post | Alloy, 30.9x400mm, Adjustable |
| Seat Post Clamp | Alloy, 35mm w/ Quick Release |
| Stem | Zoom® Alloy, Forged, Adjustable, TDS-D634B-8/FOV, Ext. 90mm, ICR type w/ Internal Cable Routing |
| Handlebar | Zoom® Alloy, 31.8mmx650mm Wide, 35º Backsweep |
| Grips | Ergonomic Comfort |
| Pedals | 9/16″ Alloy Platform with Reflectors |
| Headset | Gyneyea T192KS-56, Threadless 57/56mm, W/ Internal Cable Routing |
| Rear Shocks | N/A |

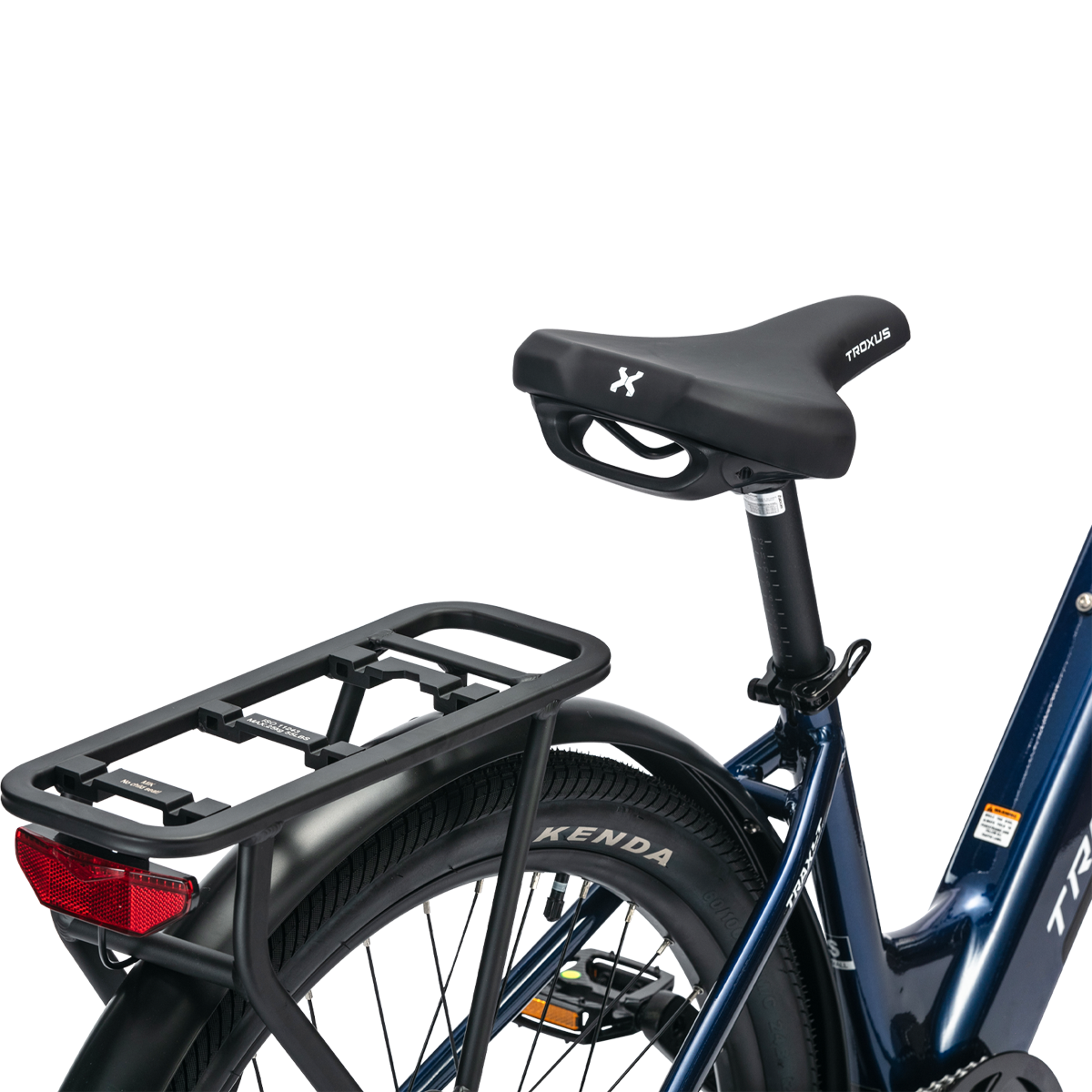

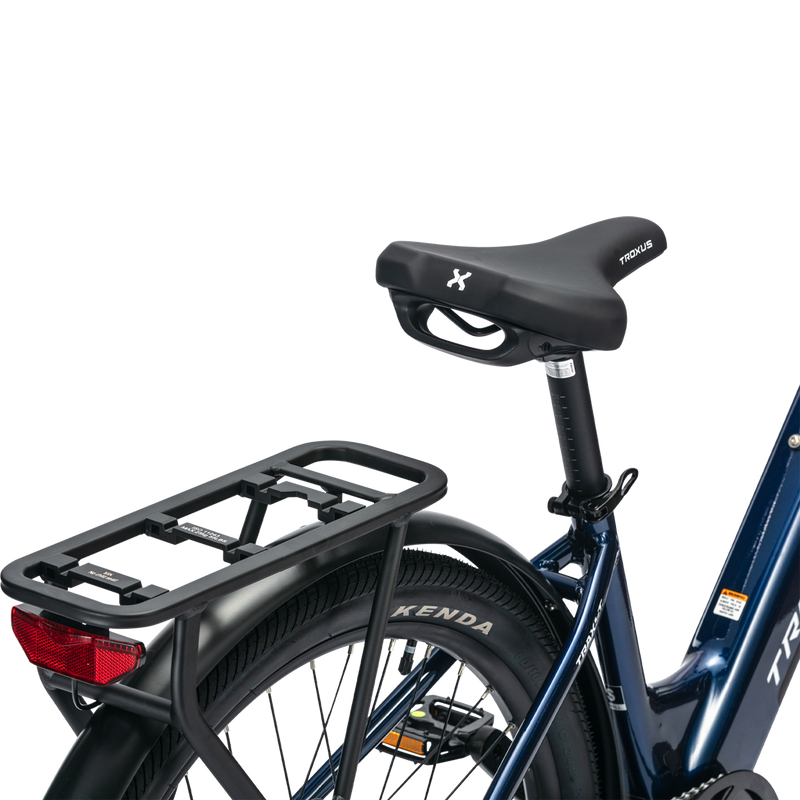

| Rack | Lightweight Alloy Rear Model / MIK-Compatible Rear Rack |
| Fender | Plastic, 27.5" |

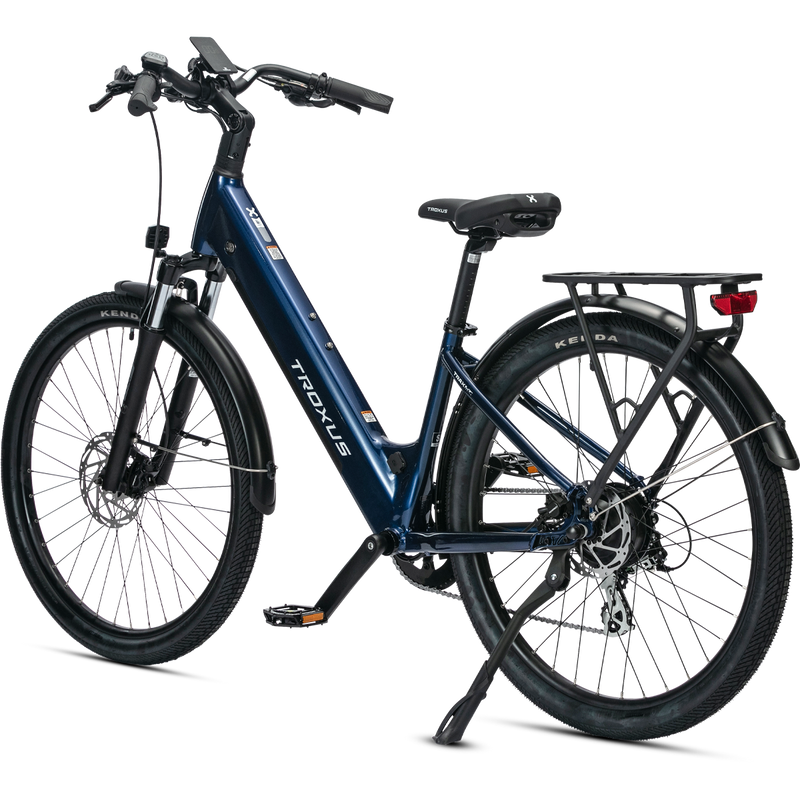

| Kickstand | Adjustable Side Kickstand |
| Max Speed | Up To 20 MPH |
| Range | Up To 55 Miles Per Charge/ Up to 80+ Miles w/Extra Battery |
| Weight Limit | Maximum Load: 285 lbs |
| Net Weight | 57 lbs |
* Specs subject to change
