Description

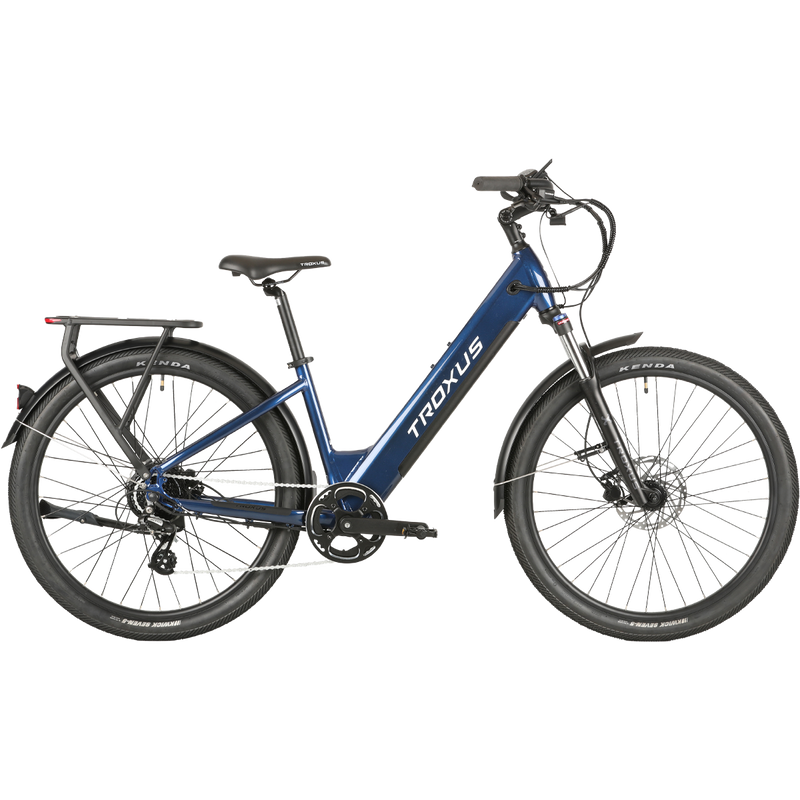

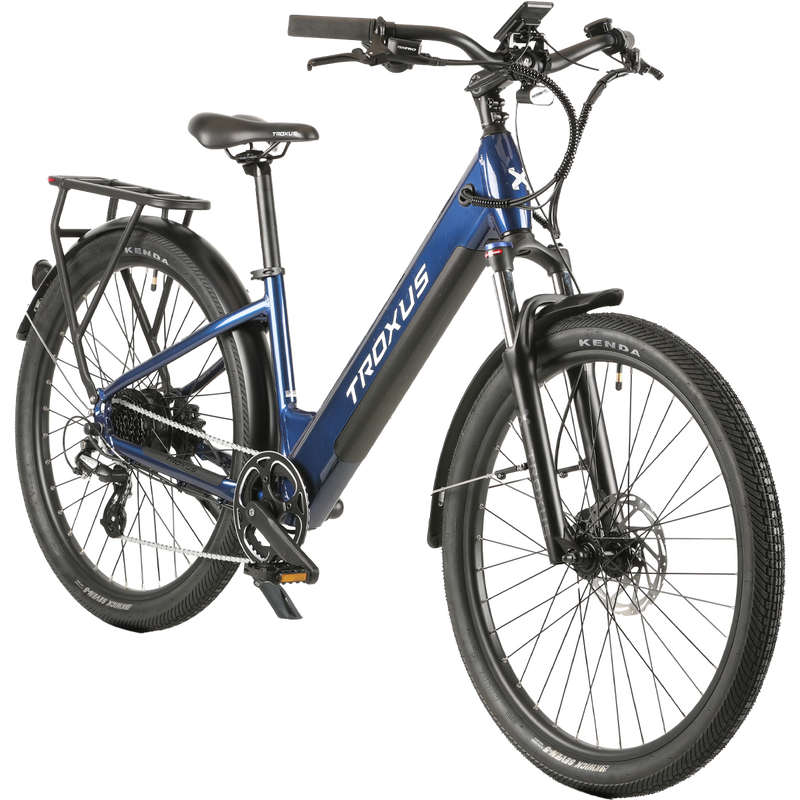

A lightweight, stylish, and nimble bike for those looking for the perfect urban companion. Smooth power and plenty of range, with the ability to switch from cadence to torque sensor on the fly, to suit your riding needs. The comfortable touchpoints make the Trax LT a joy to ride.
- Class 2:Up to 20 mph pedal assist with throttle up to 20 mph assist
- UP TO 55 Miles Per Charge
- 50 Nm Torque
- 480Wh UL-2271 Internal Battery
- 57 lbs Net Weight (Battery Included)
- Switchable Torque And Cadence Sensor Modes
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
-
Battery
48V/10Ah (480Wh) -
Max Torque
50 Nm -
Motor
Jiabo® 48V/350W -
Range
Up To 55 Miles -
Top Speed
Class 2:Up to 20 mph pedal assist with throttle up to 20 mph assist
| Component | Part |
|---|---|
| Motor | Jiabo® 48V/350W Hub-Drive Motor, 50Nm Max. Torque |
| Battery | UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/10Ah (480Wh) with Samsung® Cells |

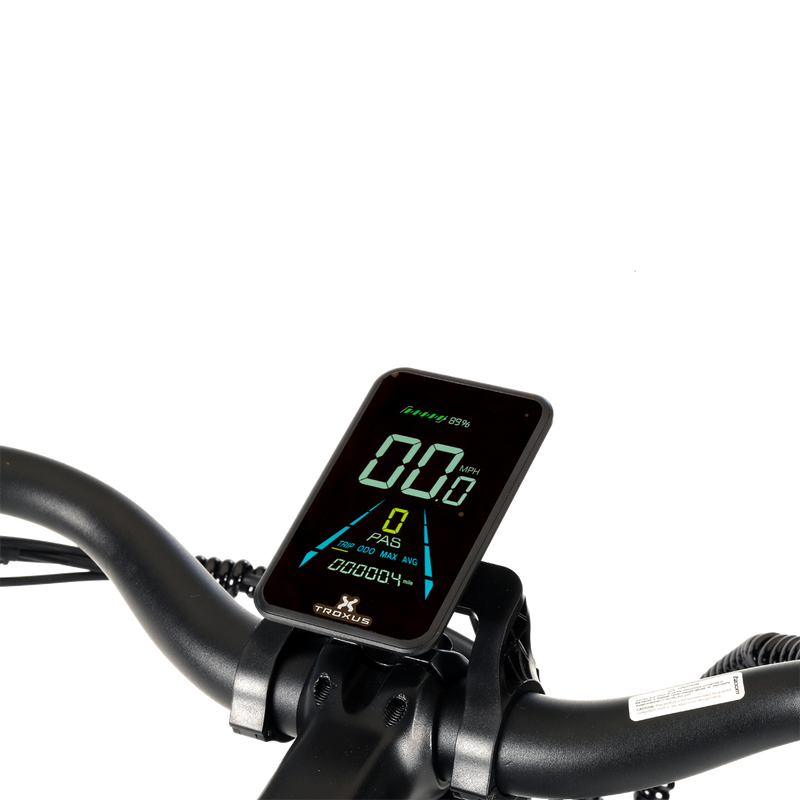

| Display | Color Display, Bluetooth, w/ Multi-Function Remote, w/ USB Charging |

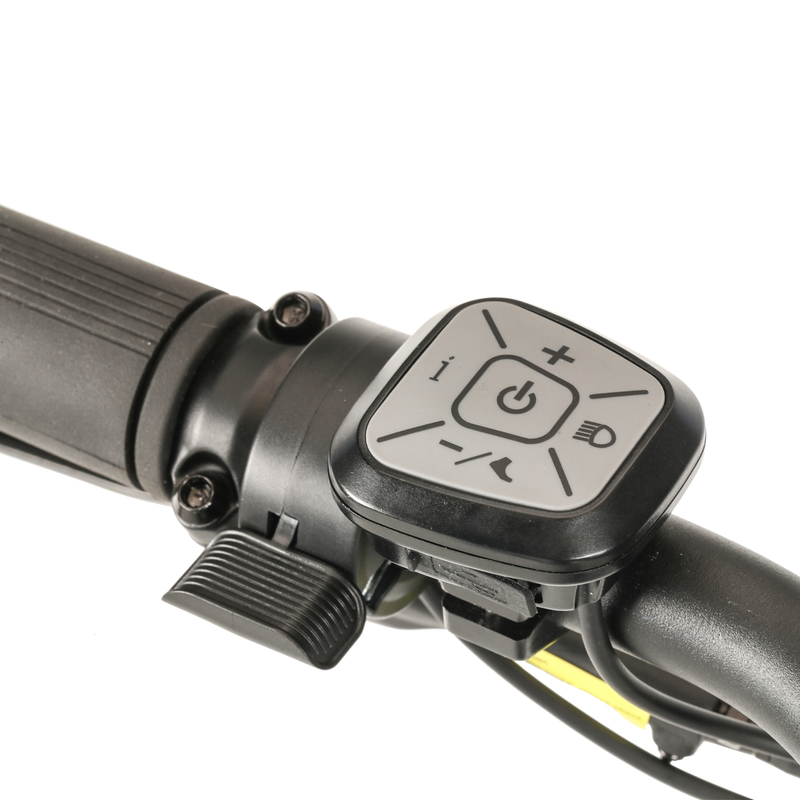

| Throttle | Thumb Throttle on Handlebar |
| Sensor | Switchable Torque And Cadence Sensor Modes |
| Pedal Assist | 0~5 Level Pedal Assist |
| Charger | 2A / 100-240V Input / 54.6V Output |

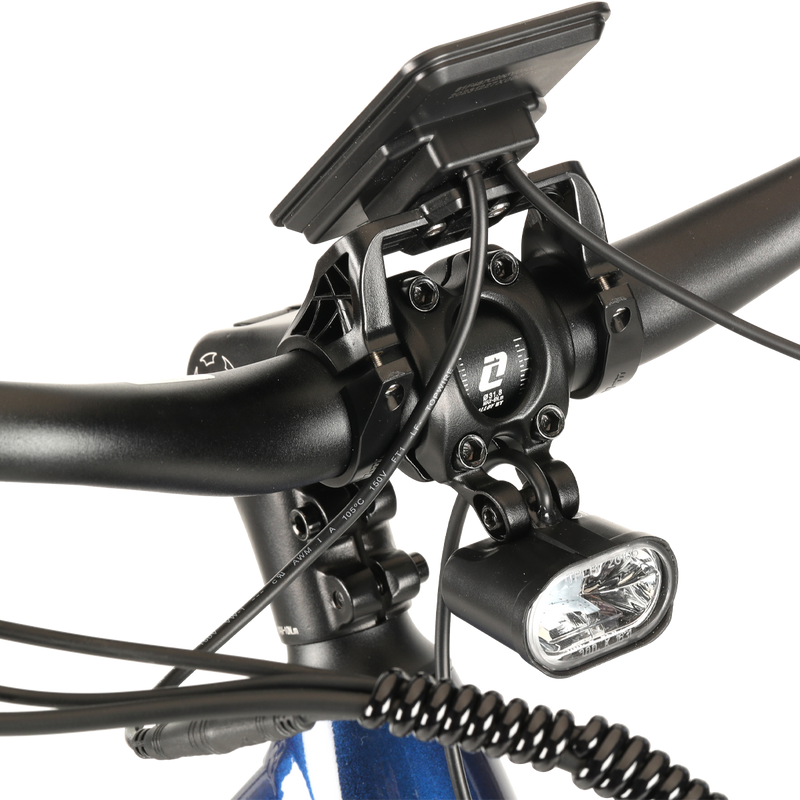

| Lights | Front & Rear Lights |
| Controller | 48Vx15A/12V |
| Frame | 6061-T6 Aluminum Step-Thru Lightweight Frame |
| Fork | Front Suspension Fork, 73mm Travel |
| Chain | KMC® 1/2"x3/32" |
| Crankset | Aluminum, 42T, w/ Alloy Chainring & Single Chainguard, Square Taper, 170mm |
| Rear Derailleur | Shimano® RD-M310-L, Altus, 8-Speed |
| Cassette | Shimano® 8-Speed, 12-32T |
| Shifter | Shimano® 8-Speed |
| Bottom Bracket Set | Square Taper Sealed Bearings, Torque & Cadence Sensors Included |
| Tires | KENDA® 27.5"x2.2" |
| Front Hub | Alloy, 36H,100mm, 3/8"Axle |

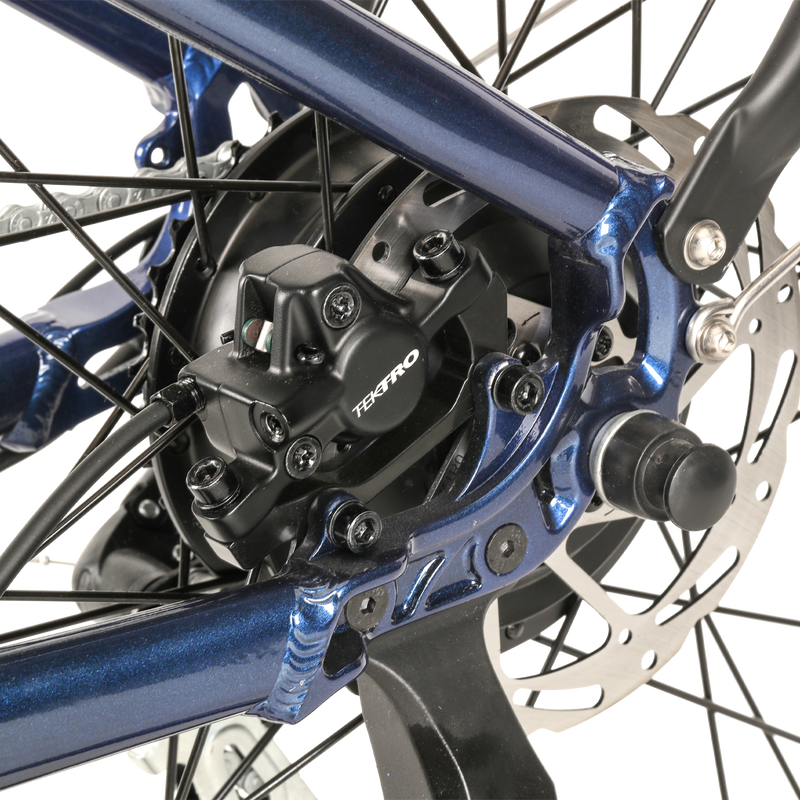

| Rear Hub | Jiabo® 48V 350W/ 20 MPH. 50Nm |
| Rims | Alloy Double Wall, 27.5"x2.0" w/ Eyelets |
| Spokes | Stainless 14G. Front / 13G. Rear |
| Brakes | Tektro® Hydraulic, w/ Brake Sensors |
| Rotors | 180mm / 180mm |

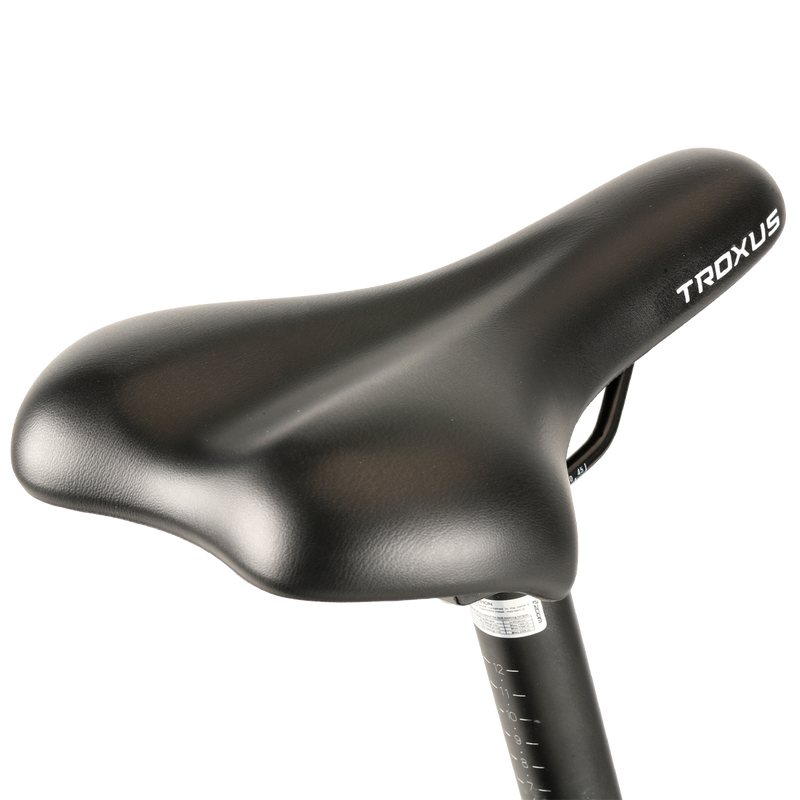

| Saddle | Troxus Comfort / Lightweight |
| Seat Post | Alloy, 30.4x400mm, Adjustable |
| Seat-Post Clamp | Alloy, 35mm w/ Quick Release |

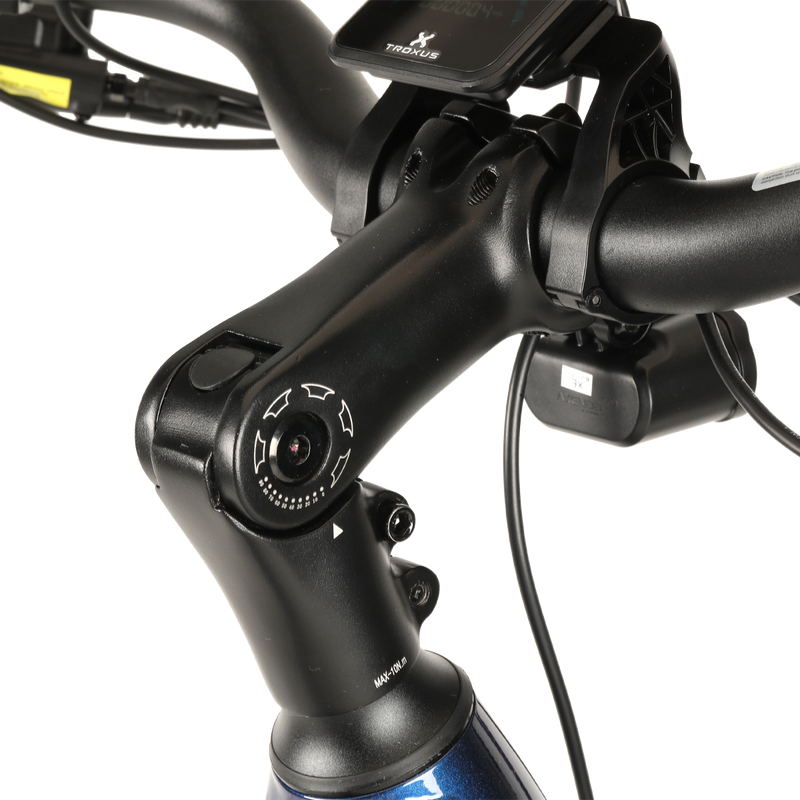

| Stem | Zoom® Alloy, Forged, Adjustable, TDS-D299-8/FOV, Ext. 90mm |
| Handlebar | Zoom® Alloy, 31.8mmx700mm Wide, 35 Deg. Backsweep |
| Grips | Ergonomic Comfort |
| Pedals | 9/16″ Alloy Platform with Reflectors |
| Headset | Threadless, Locking Internal 1-1/8" |
| Max Speed | Up To 20 MPH |
| Range | Up To 55 Miles Per Charge |
| Weight Limit | Maximum Load: 300 lbs |
| Net Weight | 57 lbs |

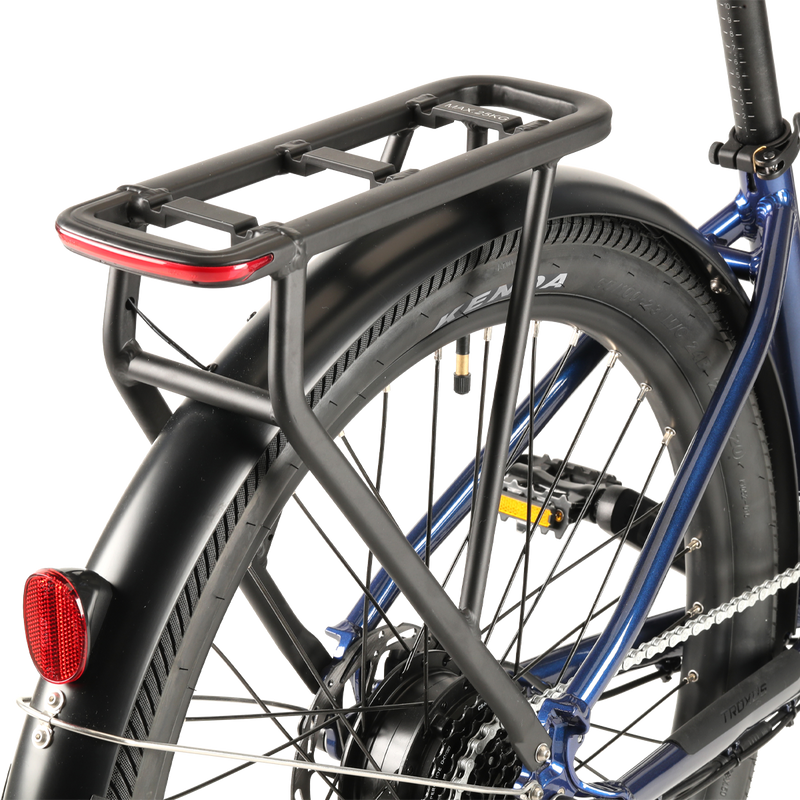

| Rack | Alloy Rear Model |
| Fenders | Lightweight, 27.5" |
| Kickstand | Adjustable Side Kickstand |
* Specs subject to change
