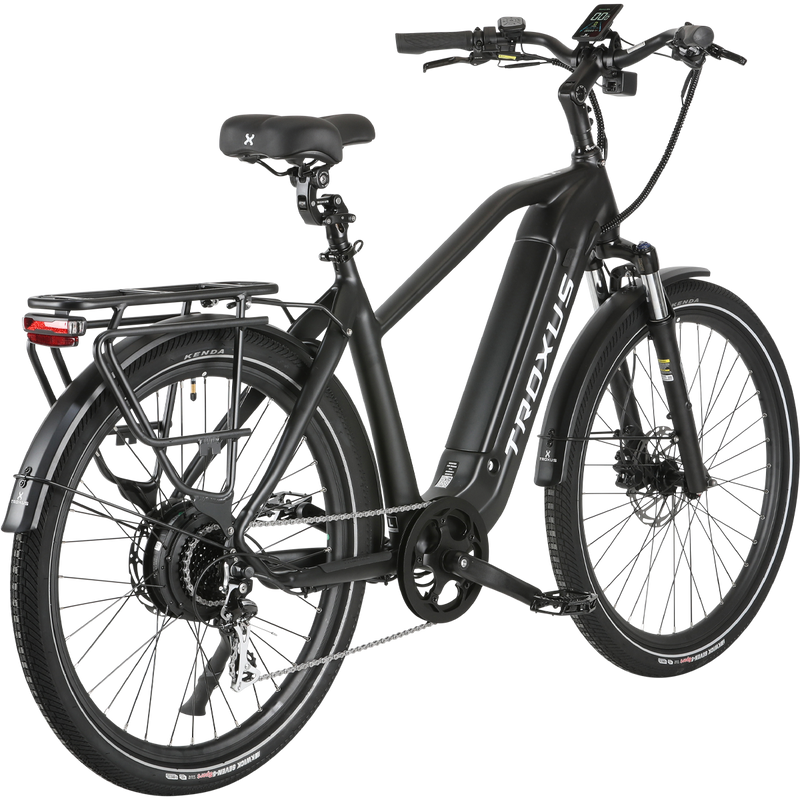

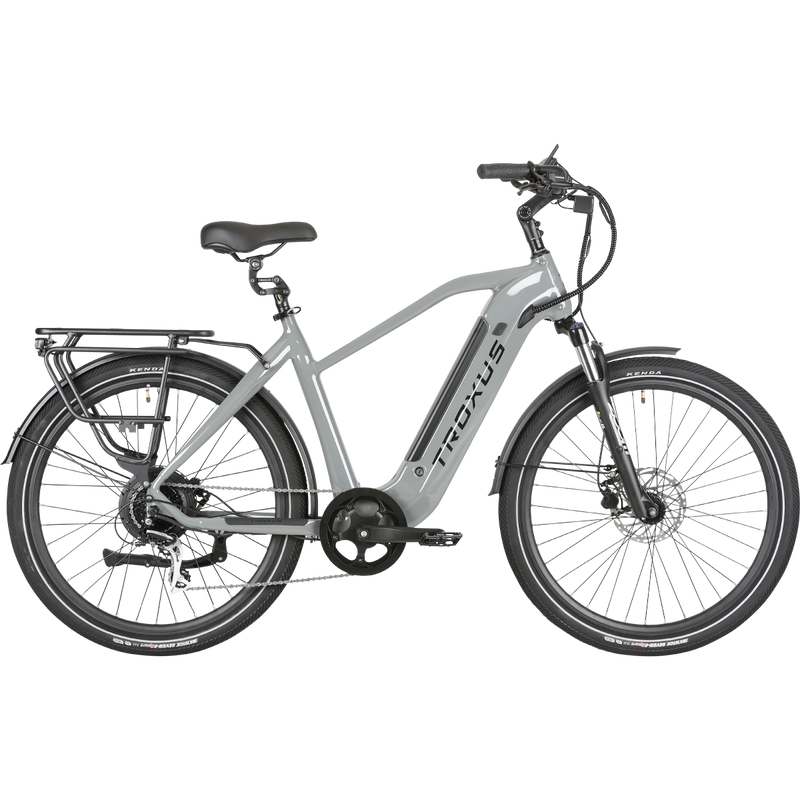

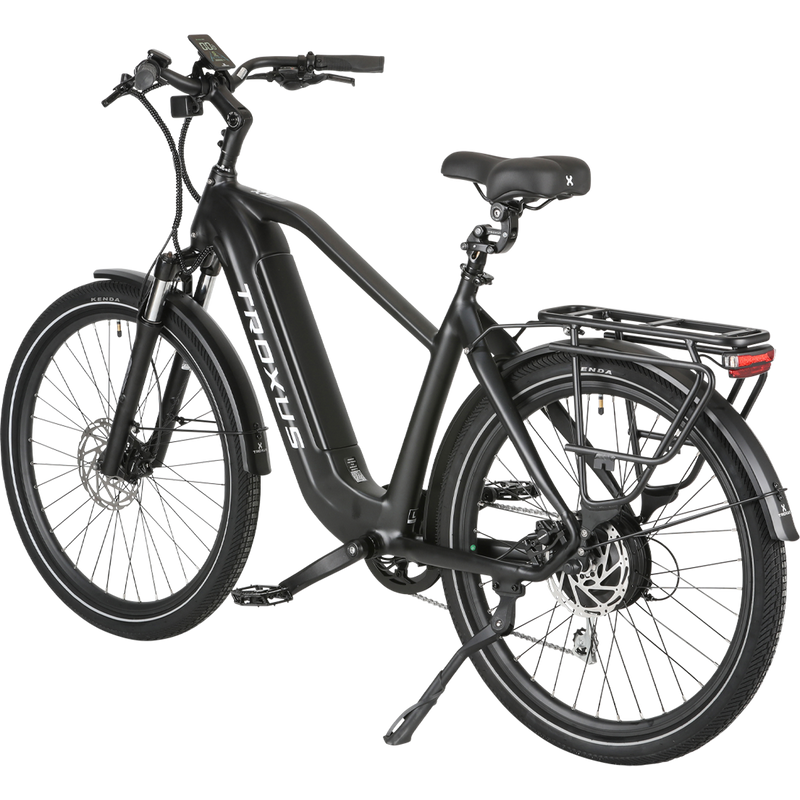

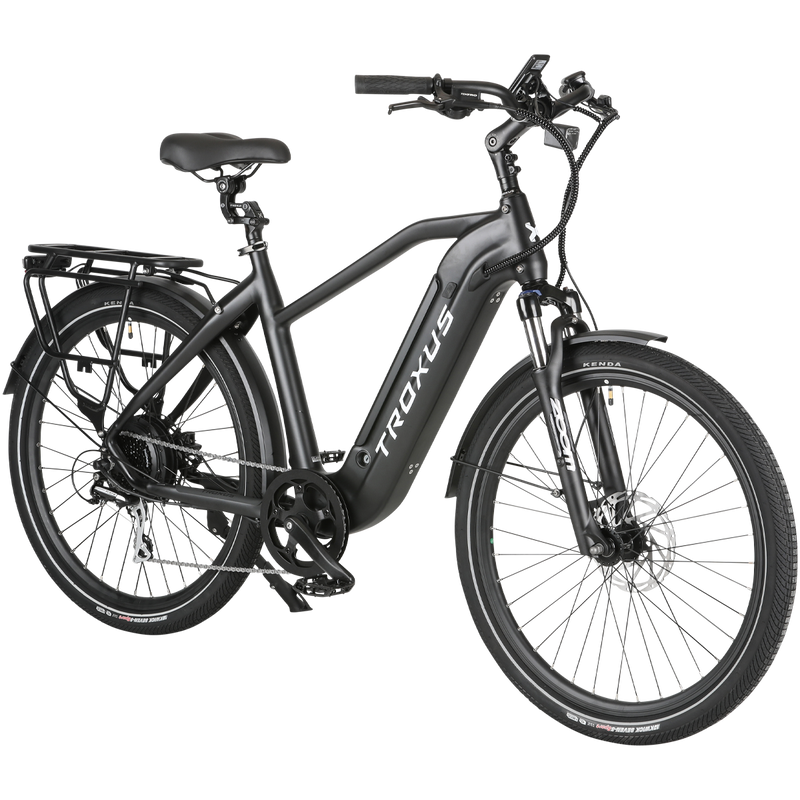

Trax 1.0 500W/15Ah Step Over
$1,999.00
$1,999.00
Free Bike Adjustments for 6 Months
Six months of free bike adjustments are included with the cost of any new bike. Plus, get 50% off the bike fit of your choice!
Article #100276828001
Description
Take control of the streets and your comfort, while you take the "grind" out of the daily grind. Using a powerful Bafang® 500W hub motor and switchable torque and cadence sensors, you'll have power to cruise and the ability to choose how you want to. Comfort is built in with ergonomic component design, as well as suspension. And safety is not an afterthought, with built-in lighting, so you can feel confidently safe on every ride.
- Class 3:Up to 28 mph pedal assist with throttle up to 20 mph assist
- UP TO 70 Miles Per Charge
- 500W Bafang® Hub Motor
- 48V 15Ah SAMSUNG® Cells
- 350 lbs Payload Capacity
- Switchable Torque And Cadence Sensor Modes
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
-
Battery
48V/15Ah (720Wh) -
Max Torque
65 Nm -
Motor
Bafang® 48V/500W -
Range
Up To 70 Miles -
Top Speed
Class 3:Up to 28 mph pedal assist with throttle up to 20 mph assist
| Component | Part |
|---|---|
| Motor | Bafang® 48V/500W Hub-Drive Motor, 65Nm Max. Torque |
| Battery | UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/15Ah (720Wh) with Samsung® Cells |
| Display | Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote |
| Throttle | Thumb Throttle on Handlebar |
| Sensor | Switchable Torque And Cadence Sensor Modes |
| Pedal Assist | 0~5 Level Pedal Assist |
| Charger | 2A / 100-240V Input / 54.6V Output |
| Lights | 80 Lux Front Light, Rear Light w/ Turn & Hazard Signals |
| Controller | 48Vx18A/12V |
| Frame | Aluminum Frame |
| Fork | Zoom® Front Suspension Fork, 80mm Travel |
| Chain | KMC® 1/2"x3/32" |
| Crankset | Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm |
| Rear Derailleur | Shimano® RD-M310-L, Altus, 8-Speed |
| Cassette | Shimano 8-Speed, 12-32T |
| Shifter | Shimano® 8-Speed |
| Bottom Bracket Set | Square Taper Sealed Bearings, Torque & Cadence Sensors Included |
| Tires | KENDA® 27.5"x2.2", w/ Reflective Stripes, Puncture-Resistant, E-50 Rated |
| Front Hub | Alloy, 36H, 100mm, 3/8"Axle w/ Nuts |
| Rear Hub | Bafang® 48V 500W/ 28 MPH. 65Nm |
| Rims | Alloy Single Wall Front / Double Wall Rear, 36H, 27.5"x2.2", w/ Eyelets |
| Spokes | Stainless 13G. Front / 12G. Rear |
| Brakes | Tektro® Hydraulic, w/ Brake Sensors |
| Rotors | 180mm / 180mm |

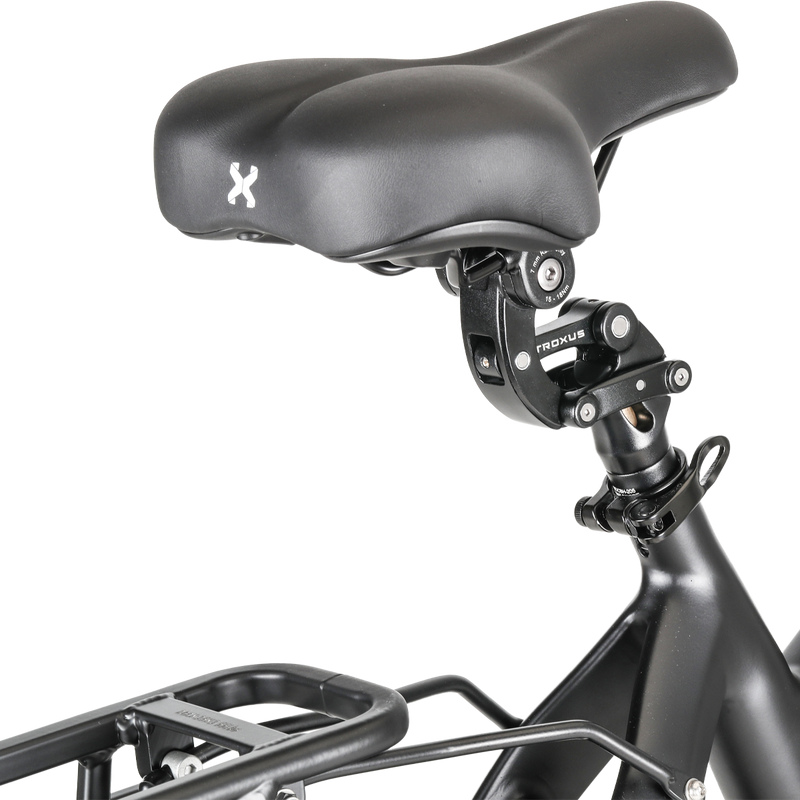

| Saddle | Troxus Comfort |
| Seat Post | Troxus w/ Suspension, Alloy 30.9x360mm, Adjustable |
| Seat-Post Clamp | Alloy, 35mm w/ Quick Release |

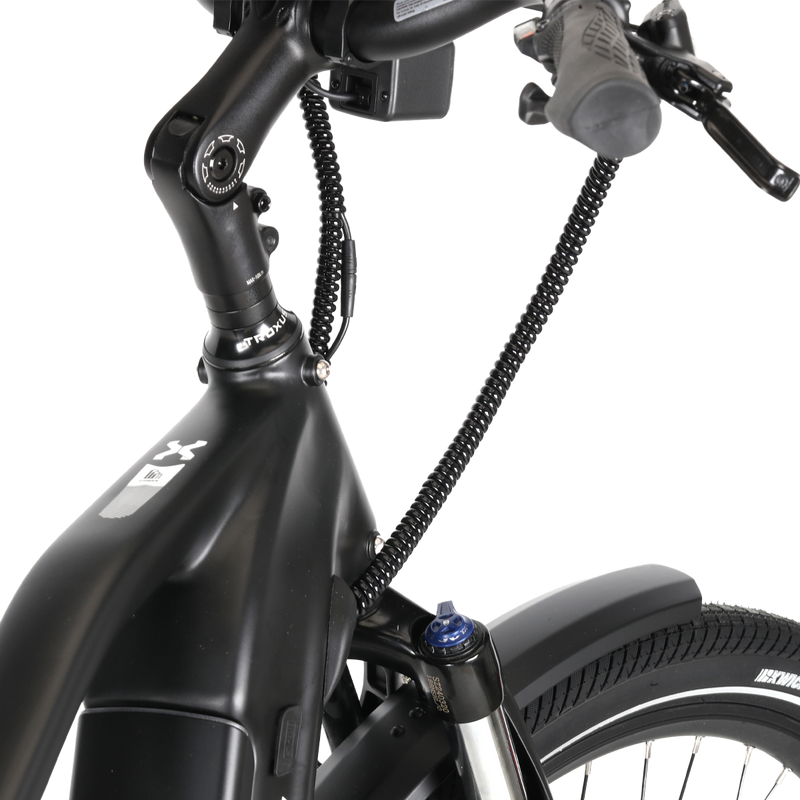

| Stem | Zoom® Alloy, Forged, Adjustable, Ext. 90mm |
| Handlebar | Zoom® Alloy, 31.8mmx620mm, 35˚ Backsweep |
| Grips | Ergonomic Comfort |
| Pedals | Alloy, 9/16"axles, w/ BS reflectors |
| Headset | Threadless, Internal 1-1/8" |
| Max Speed | Up To 20 MPH on Throttle / 28 MPH on Pedal Assist |
| Range | Up To 70 Miles Per Charge |
| Weight Limit | Maximum Load: 350 lbs |
| Net Weight | 68.5 lbs |

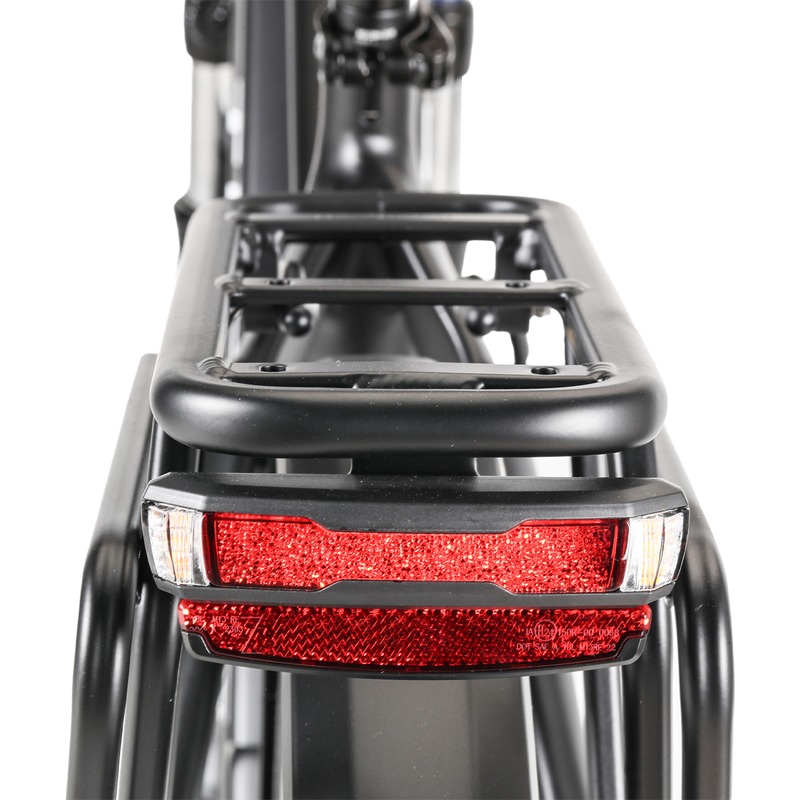

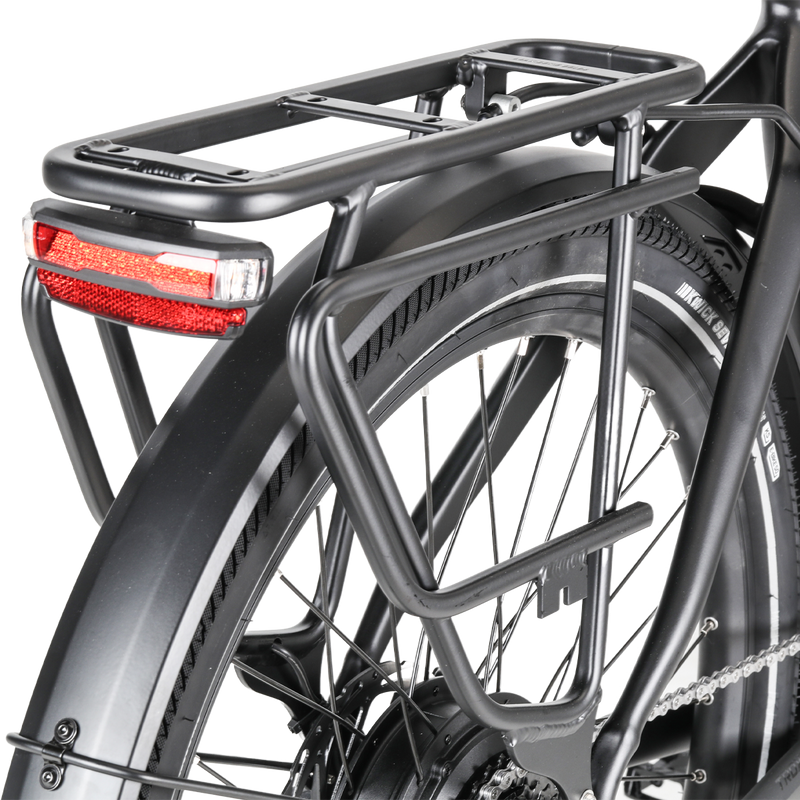

| Rack | Alloy Rear Model |
| Fenders | Alloy, 27.5", Full coverage |
| Kickstand | Adjustable Side Kickstand |
* Specs subject to change
