Sub Active eRIDE

Minimum quantity	Discount
Buy 2 +	Get 10% discount

Bike

/

Hardgoods

/

Men's Electric Bike

/

Commuter

Are you a fan of this product? Help your community by sharing your thoughts

Scott Bikes

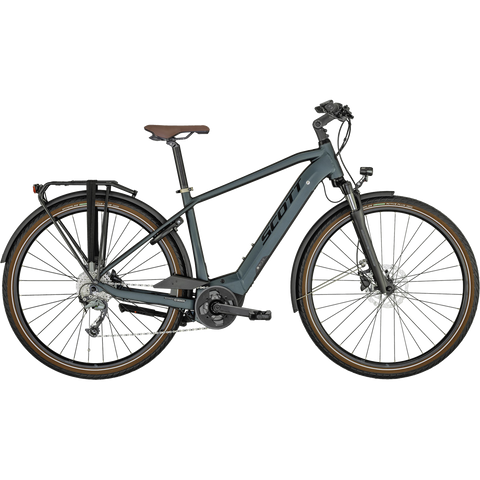

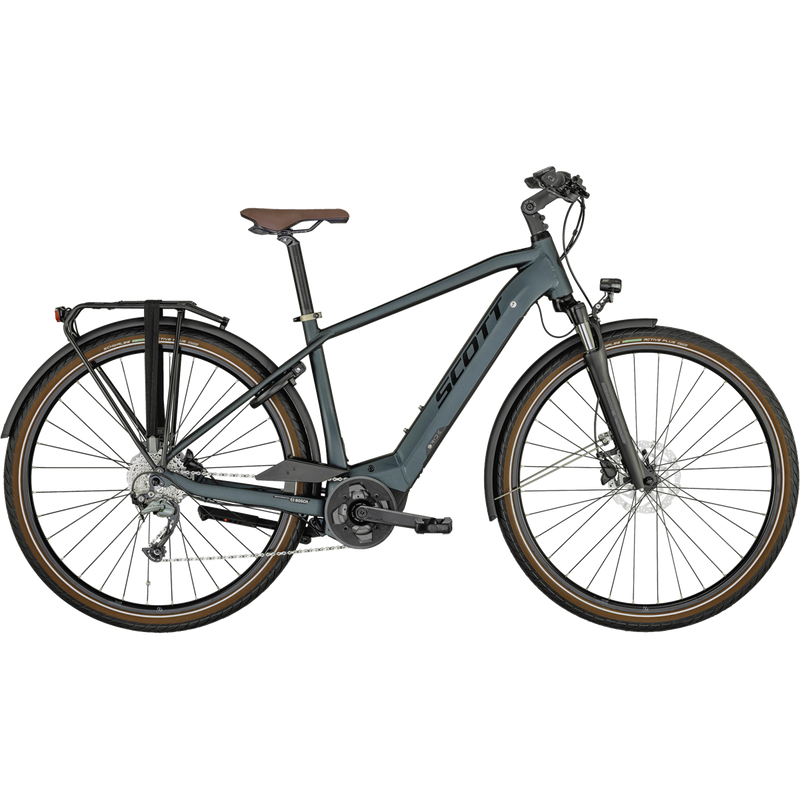

Sub Active eRIDE

$1,500.00 $2,999.99

Color Mat/Gry Blue/Beige

Size S Size Chart

Rider Height	Bike Size
<5'7"	S or M
5'5" - 5'11"	M or L
5'8" to 6'3"	L or XL
6'2" +	L or XL

Quantity:

Battery: PowerTube 400Wh
Brakes: Shimano BR-M200 Disc
Max Torque: 40 Nm
Motor: Bosch Active
Range: 37 Miles
Top Speed: Class 1: up to 20 MPH

The Sub Active eRIDE provides outstanding comfort. Thanks to the wide saddle and the high cockpit, never feel uncomfortable on your bike. The lights, the rack and the fenders makes it city ready. Sub eRIDE 6061 Alloy Suntour NEX-E25, 63mm Fork Shima

The Sub Active eRIDE provides outstanding comfort. Thanks to the wide saddle and the high cockpit, never feel uncomfortable on your bike. The lights, the rack and the fenders makes it city ready.

Sub eRIDE 6061 Alloy
Suntour NEX-E25, 63mm Fork
Shimano Alivio 3100 9 Speed
Bosch Active, PowerTube 400Wh
Shimano Disc Brakes
Schwalbe Energizer Active Plus
Selle Royal Essenza saddle
Fr: Axa Compactline 35 / Re: Axa

Returns & Price Matching

We Want you to

Lve your purchase

Love the price

We'll price-match if you find a better deal

Love it now

If you find it for less within 1 month we'll give you a gift card for the difference

Don't love it? Bring it Back

If at any time you don't love your purchase, bring it back for a refund, credit or repair

COMPONENT	PART
Frame	Sub eRIDE 6061 Alloy
Fork	Suntour NEX-E25 Ds Qr 700c Steel Tapered / 63mm Travel
Drive Unit	Bosch Active - US 20 mph - Class 1
Battery	PowerTube 400Wh
Display	Purion Display
Charger	2A Charger
Rear Derailleur	Shimano Alivio 3100 9 Speed
Shifters	Shimano Alivio 3100 9 Speed
Crankset	Miranda 172,5MM
Chainring	38T Chainflow / Chainprotector
Chain	KMC E9s NPBK
Cassette	Shimano CS HG400 11-36
Brake Levers	Shimano BR-M200 Disc
Brakes	Shimano BR-M200 Disc
Handlebar	Syncros UC3.0 680mm / 10° bend
H'Stem	Syncros UC 3.0 adjustable
Seatpost	Syncros 3.0 / 31.6mm / 350mm
Seat	Selle Royal Essenza
Headset	GW semi integrated
Front Hub	Shimano HBMT200B 32H QR CL
Rear Hub	Shimano FHMT200B 32H QR CL
Spokes	BLACK spokes - F
Rims	Cross X17 Disc 32h
Front Tire	Schwalbe Energizer Active Plus 700x50c
Rear Tire	Schwalbe Energizer Active Plus 700x50c
Lights	Front
Rack	Racktime w/ spring clamp
Pedals	Syncros SP-828
Extras	AXA Block XXL ART approved / Battery Lock
Accessories	Curana wide extruded fenders, Ursus Mooi Central kickstand
Weight	58.2 lbs
Max. System Weight	264 lbs

* Specs subject to change

FIG	NAME	S	M	L	XL
A	Head Tube Angle	69.5º	70º	70.5º	70.5º
B	Head Tube Length	5.1 in	5.5 in	6.3 in	7.3 in
C	Top Tube Horizontal	22.8 in	23.6 in	24.4 in	25.2 in
D	Standover Height	30.5 in	31.7 in	32.7 in	34.2 in
E	BB Offset	3 in	3 in	3 in	3 in
F	BB Height	17.3 in	17.3 in	17.3 in	17.3 in
G	Wheel Base	45 in	45.2 in	45.9 in	46.7 in
H	BB Center to Toptube Center		N/A	N/A	N/A
I	BB Center to Top of Seattube	17.3 in	18.9 in	20.5 in	22 in
J	Seat Angle	74.5º	74.5º	74.5º	74.5º
K	Chainstay	18.9 in	18.9 in	18.9 in	18.9 in
L	Reach	15.9 in	16.6 in	17.2 in	17.7 in
M	Stack	24.8 in	25.2 in	26.1 in	27 in
N	Stem Length	4.3 in	4.3 in	4.3 in	4.3 in
O	Trail	3.5 in	3.4 in	3.2 in	3.2 in

Rider Height	Bike Size
<5'7"	S or M
5'5" - 5'11"	M or L
5'8" to 6'3"	L or XL
6'2" +	L or XL
