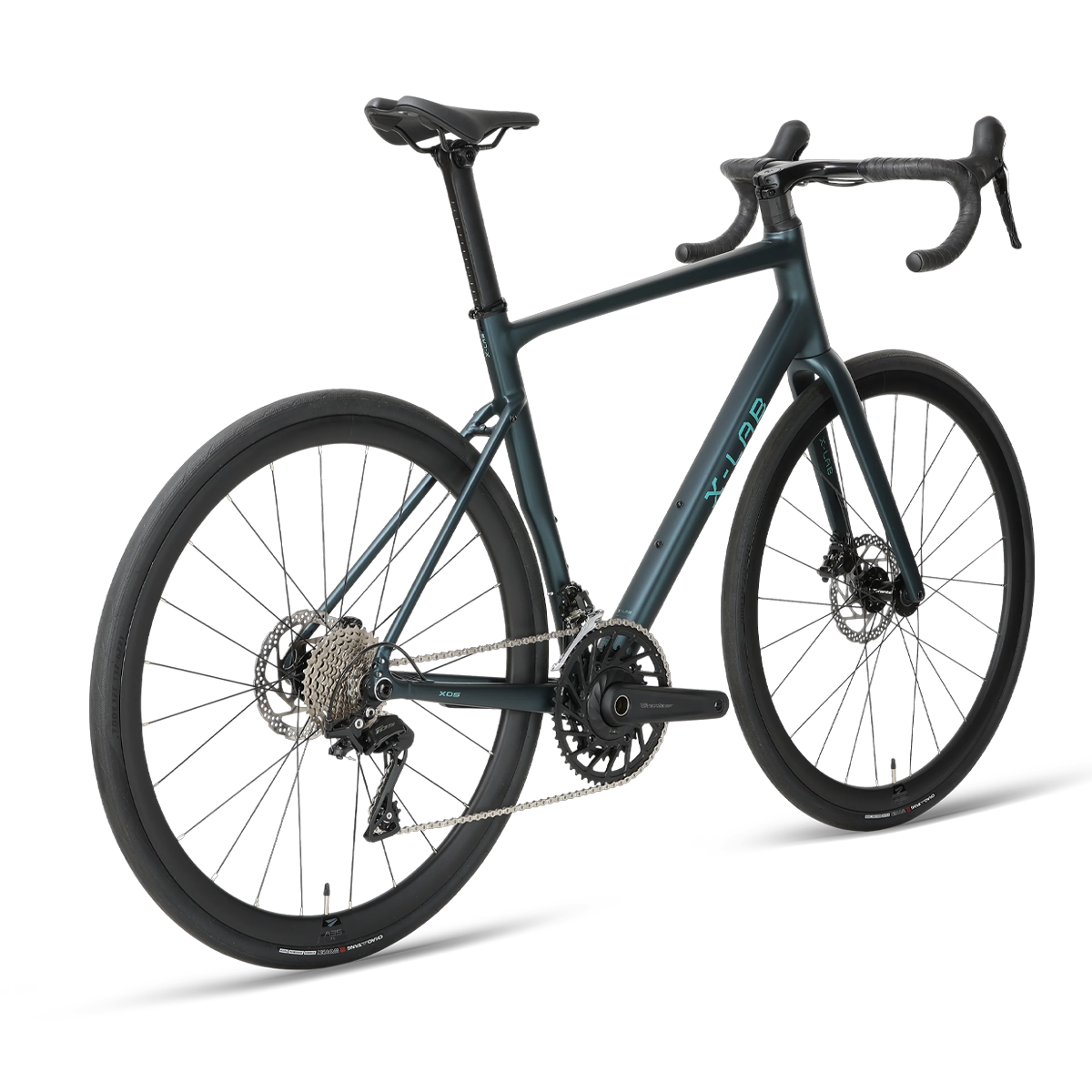

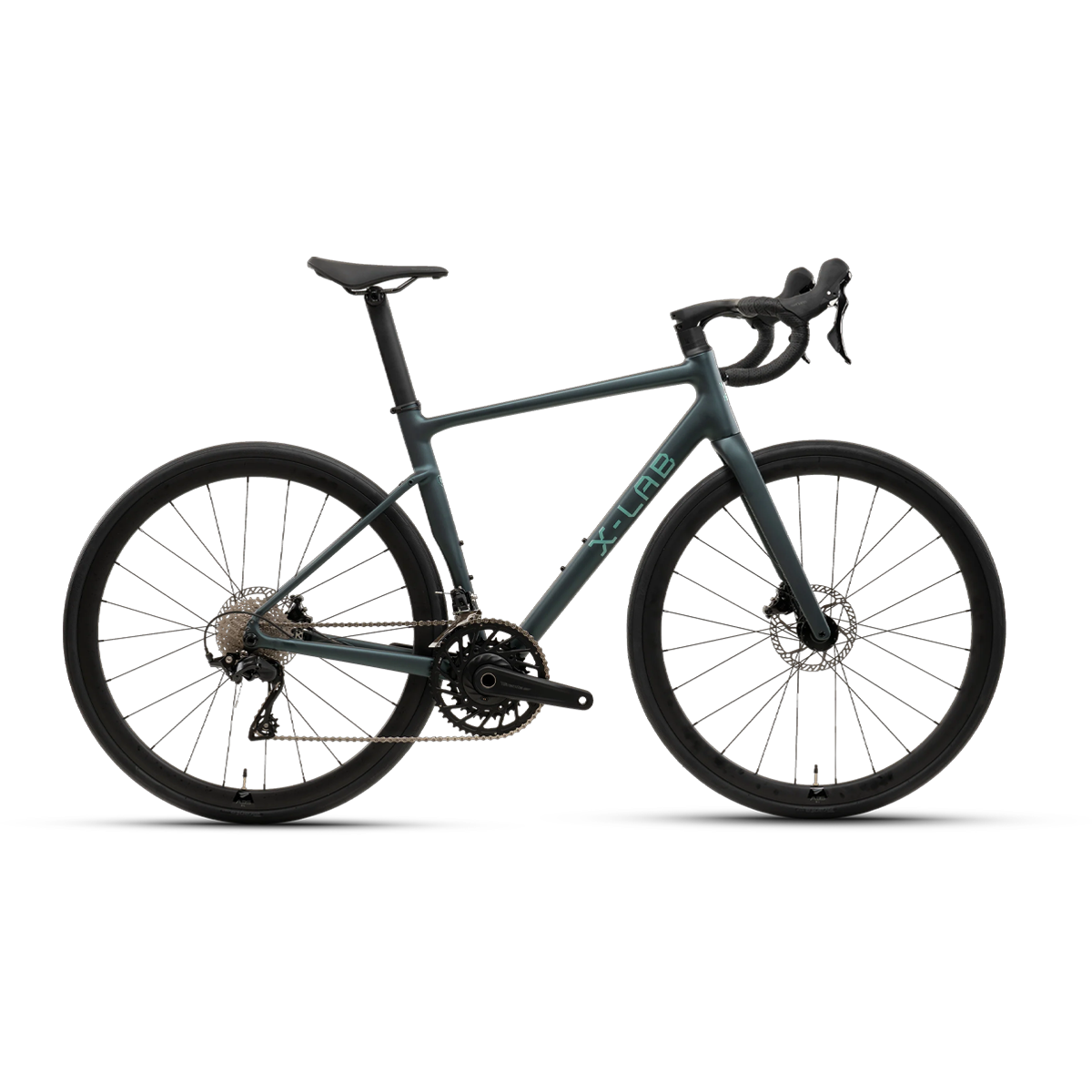

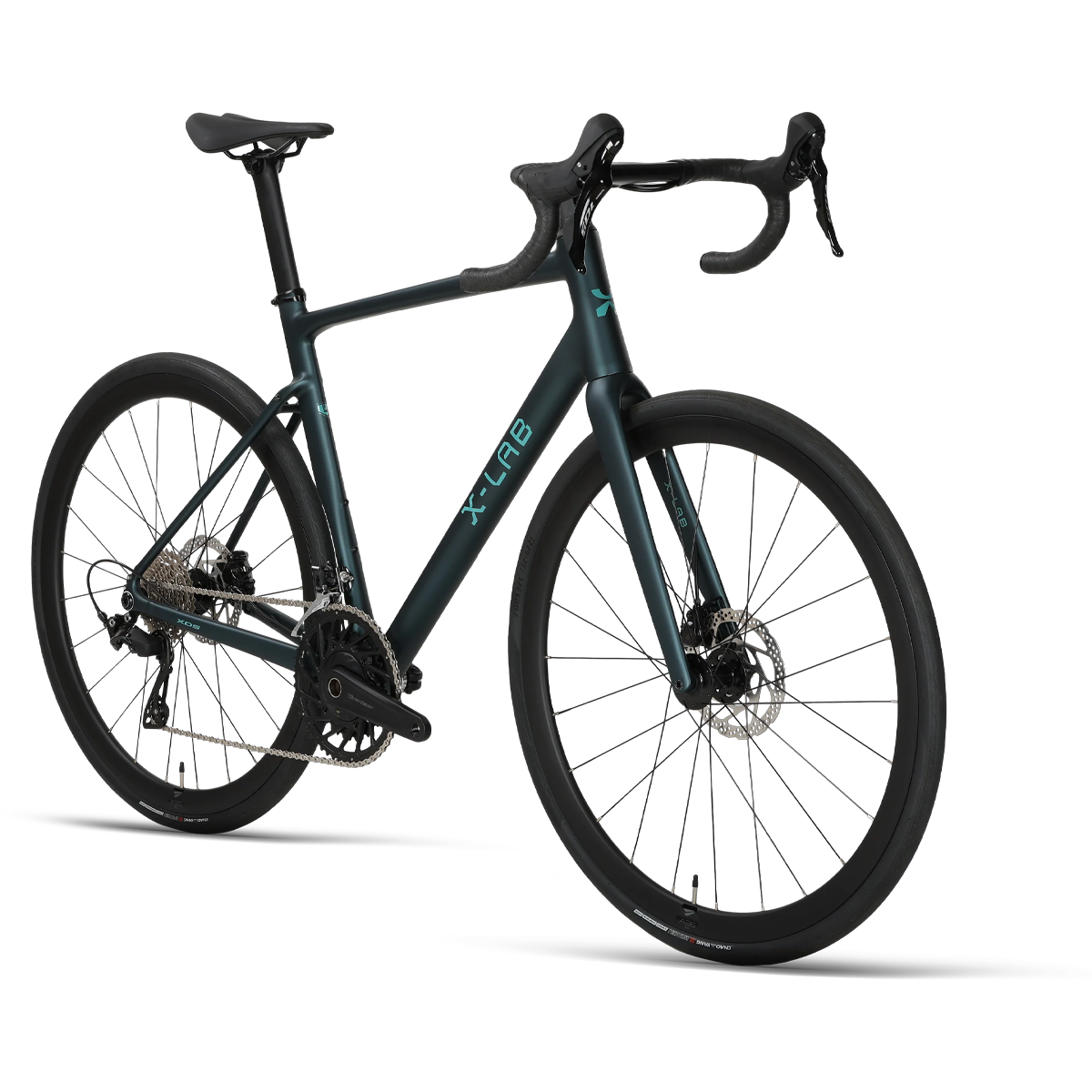

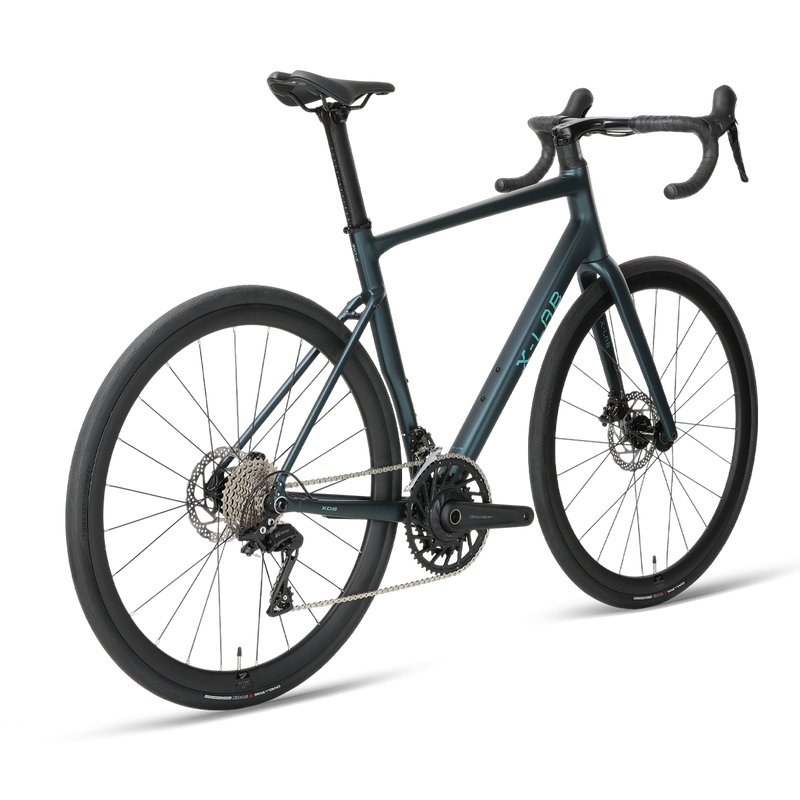

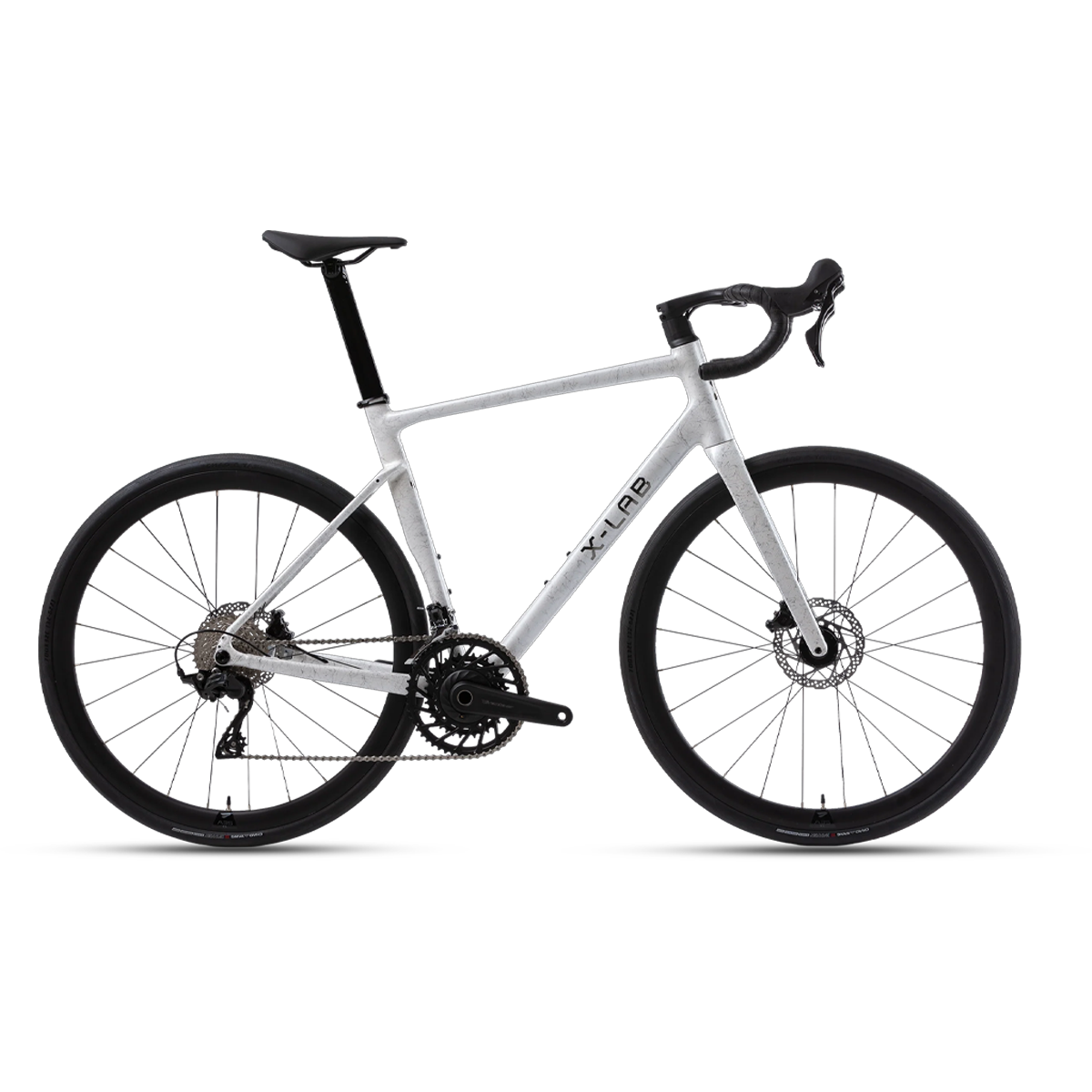

RS5
The RS5 delivers the X-LAB riding experience in a versatile and approachable form. Built with durable X6 aluminum alloy and a semi-integrated cockpit, it offers reliable performance, confident handling, and lasting comfort. Whether you're discovering
The RS5 delivers the X-LAB riding experience in a versatile and approachable form. Built with durable X6 aluminum alloy and a semi-integrated cockpit, it offers reliable performance, confident handling, and lasting comfort. Whether you're discovering the sport or simply enjoying the ride, the RS5 is designed to make every mile feel smooth, responsive, and rewarding.
- XDS X6 aluminum frame + carbon fork - Full bike 9.54 kg
- Branta alloy power meter crankset + Apple Find My anti-theft technology
- Shimano groupset

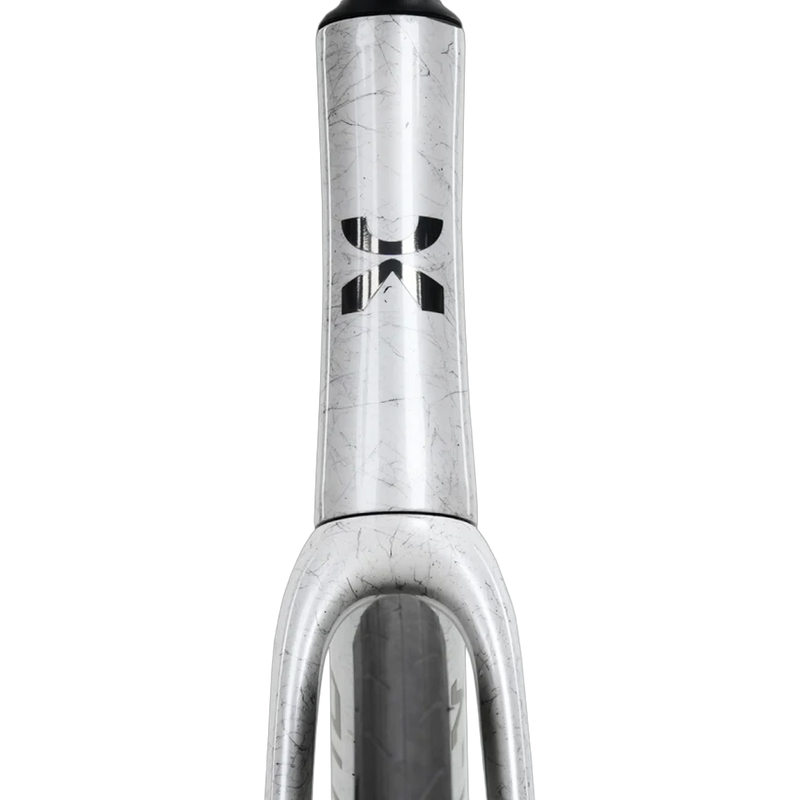

- 38mm tire clearance
- Semi-integrated alloy cockpit
- Aero carbon seatpost Compatible with aftermarket fenders
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
Returns & Price Matching
| COMPONENT | PART |
|---|---|
| Frame | XDS X6 Alloy Frame, UDH Compatible |

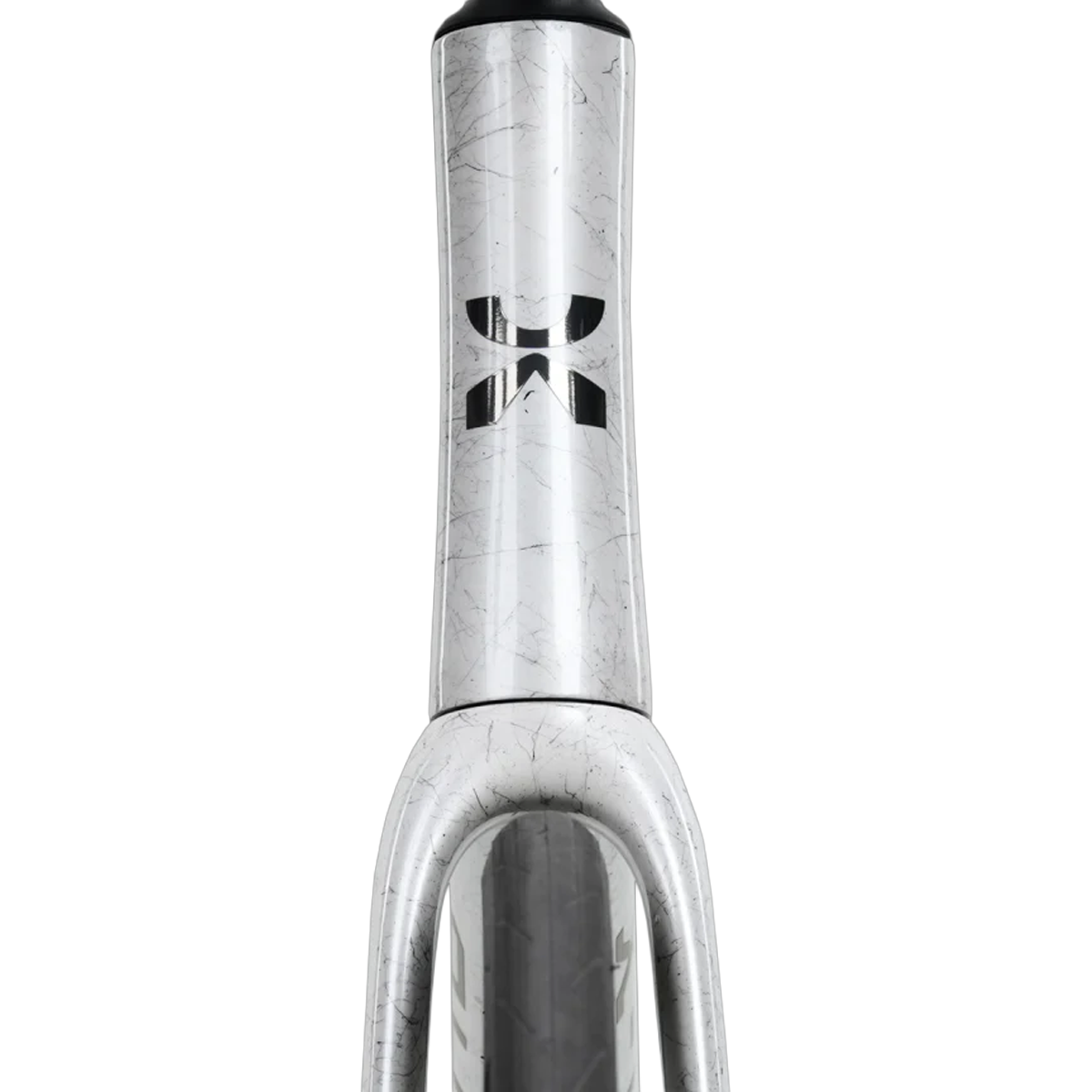

| Fork | XDS Carbon Fork, 100x12mm Thru-axle |

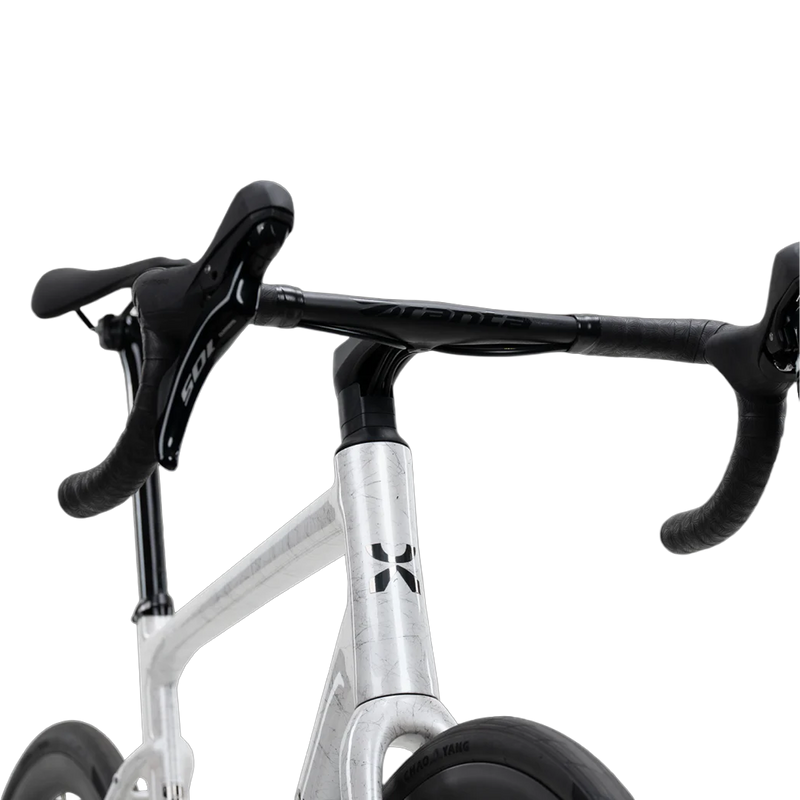

| Handlebar / Stem | Branta Alloy Integrated |

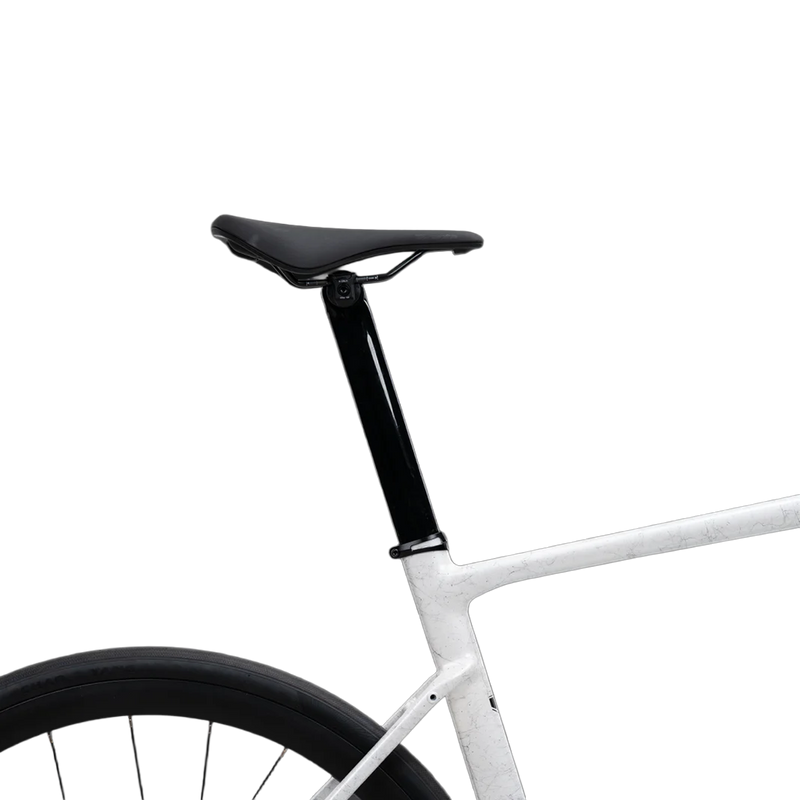

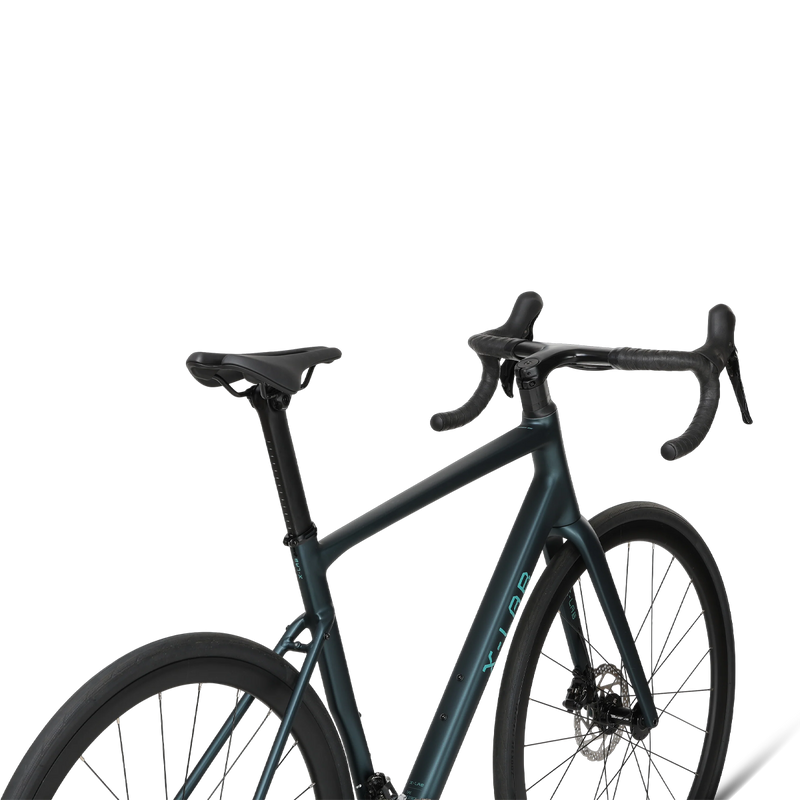

| Seatpost | XDS Carbon Seatpost, Aero Profile |

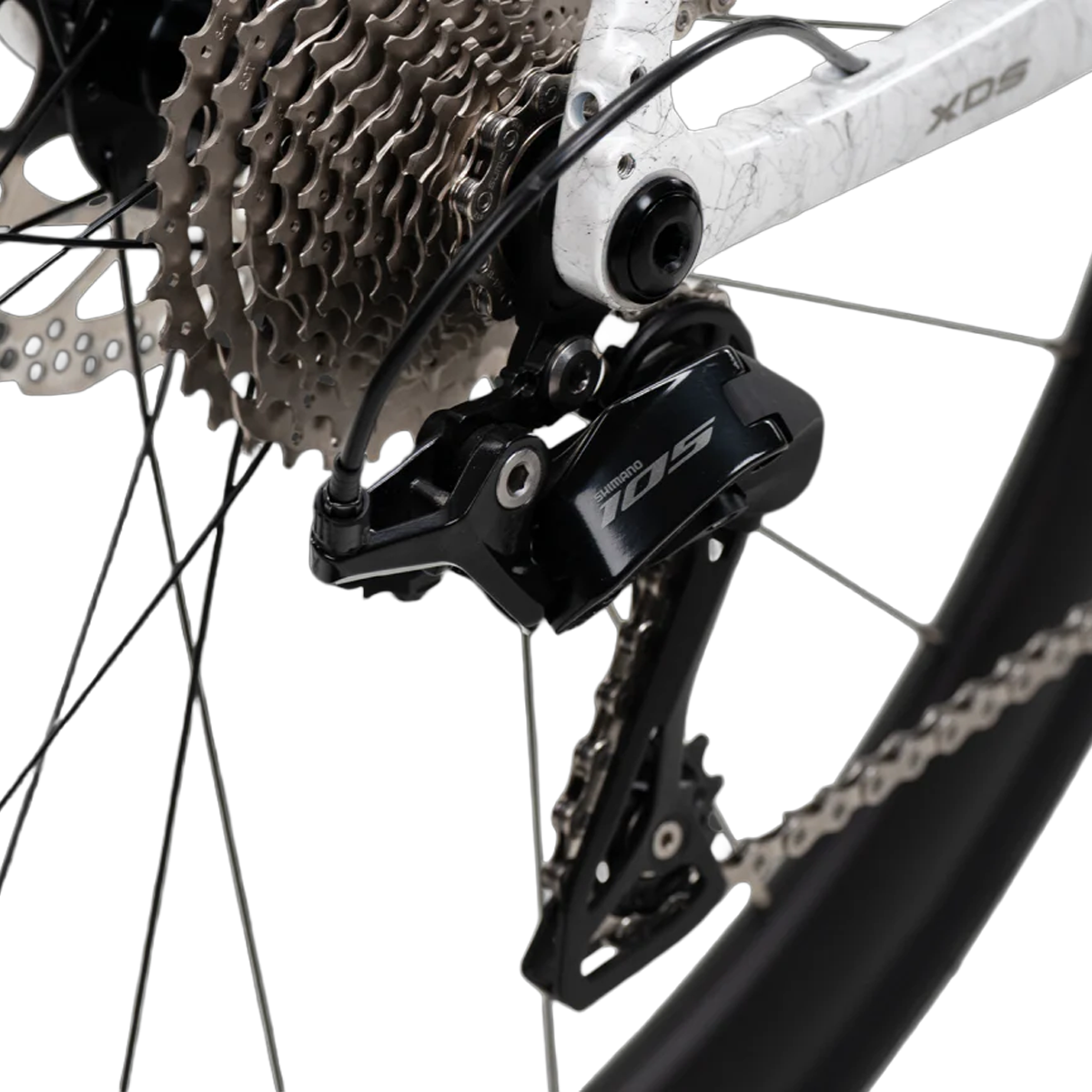

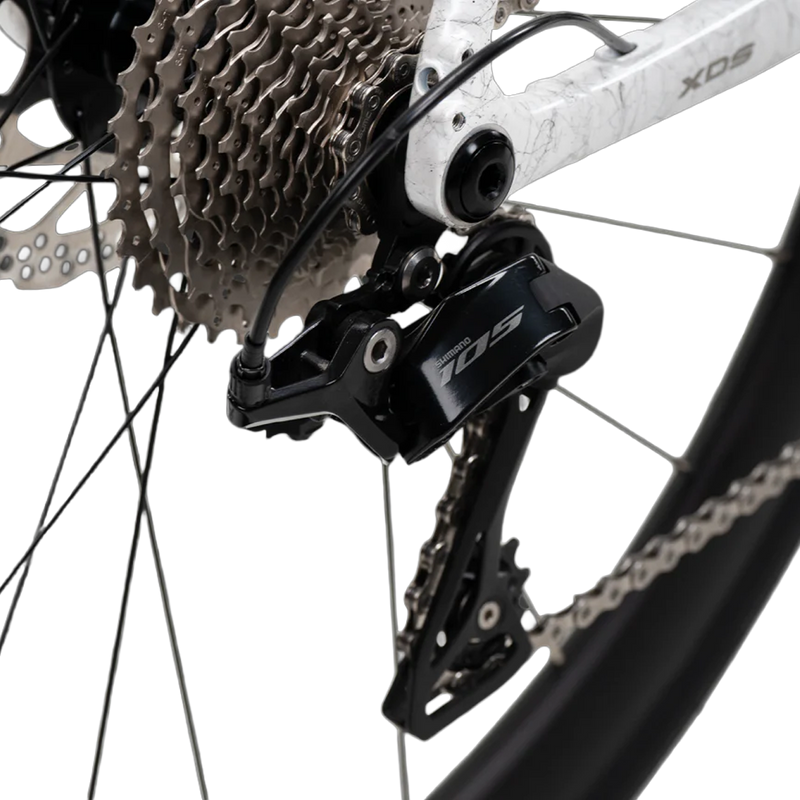

| Rear Derailleur | Shimano 105 RD-R7100 |
| Front Derailleur | Shimano 105 FD-R7100 |
| Shifters | Shimano 105 ST-R7120 |
| Brakes | Shimano 105 BR-R7170 |
| Cassette | CS-R9012, 12-speed, 11-34T |

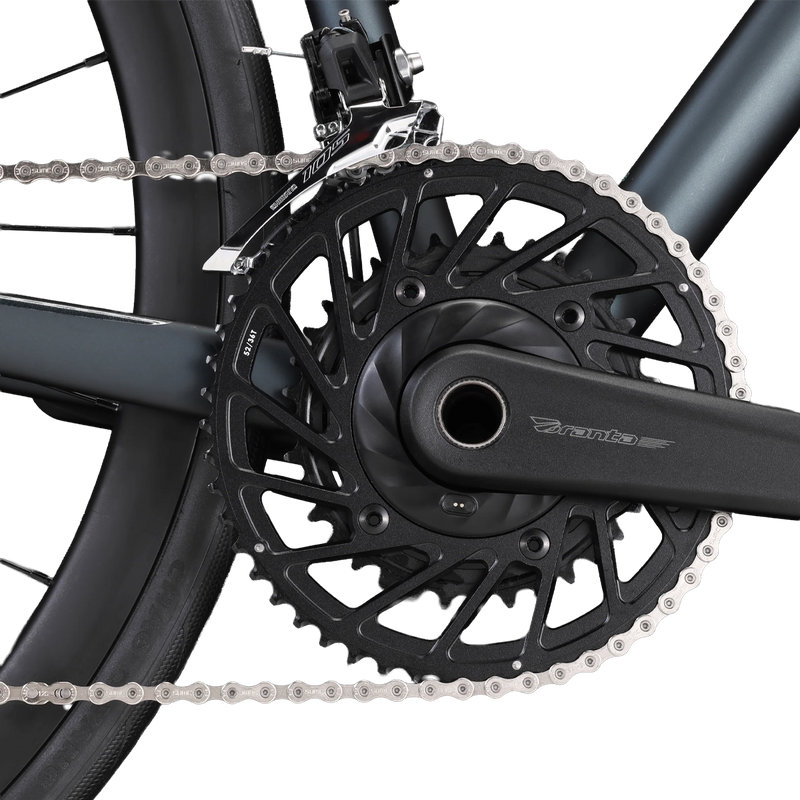

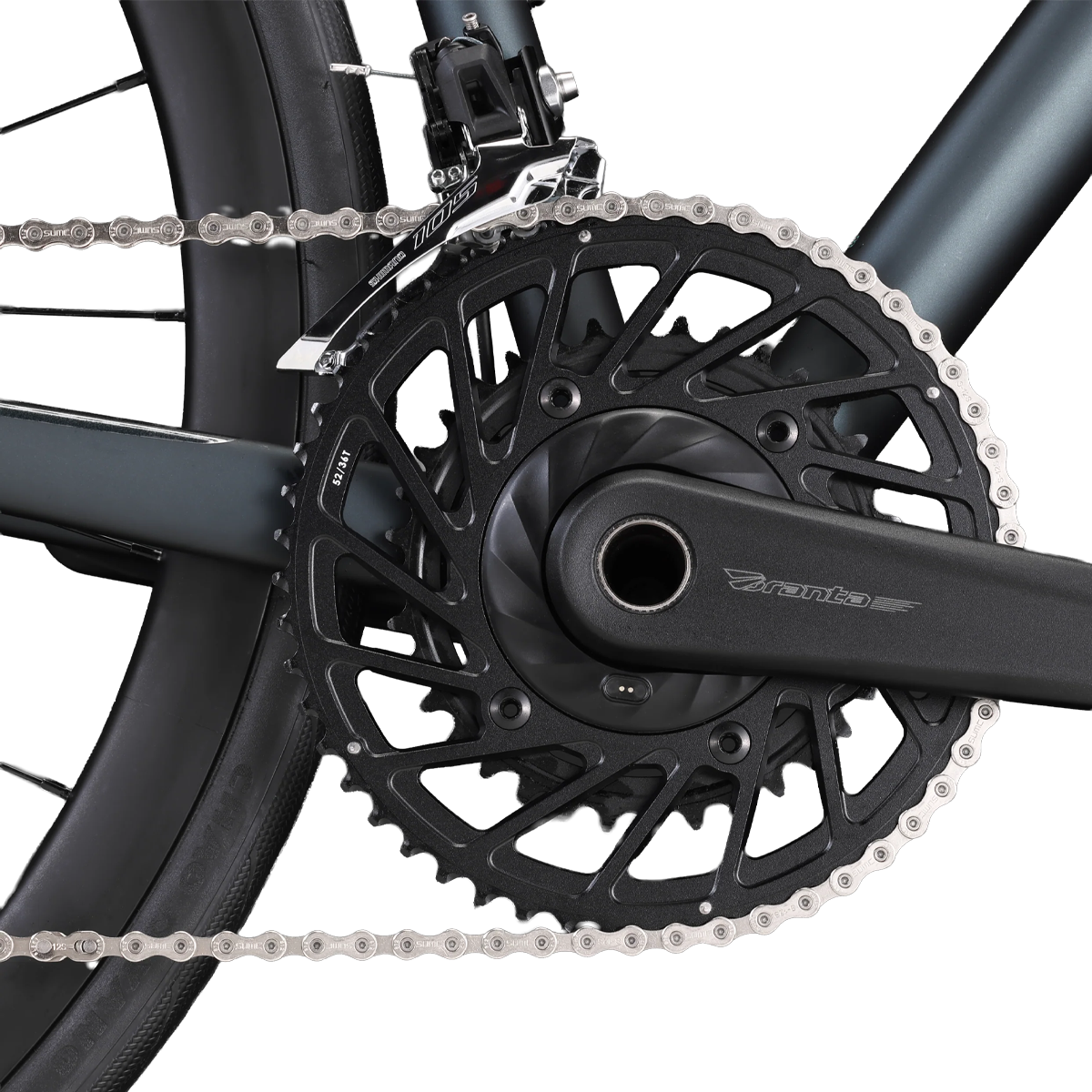

| Crankset | Branta Alloy Power Meter Crankset, 52-36T, 24mm Steel Spindle, Apple Find My Anti-Theft Technology |
| Bottom Bracket | BSA 24mm |
| Rotors | Shimano SM-RT56-S, F: 160mm / R: 160mm |
| Chain | SUMC SX12 |
| Wheelset | Branta A35 SL, Alloy Rims |
| Tires | Branta R332, 700x32C, 60TPI (Max clearance: 38C) |
| Saddle | Branta R302, Steel Rails |
| Weight | 9.54 kg / 21.03 lbs (Size L) |
* Specs subject to change
