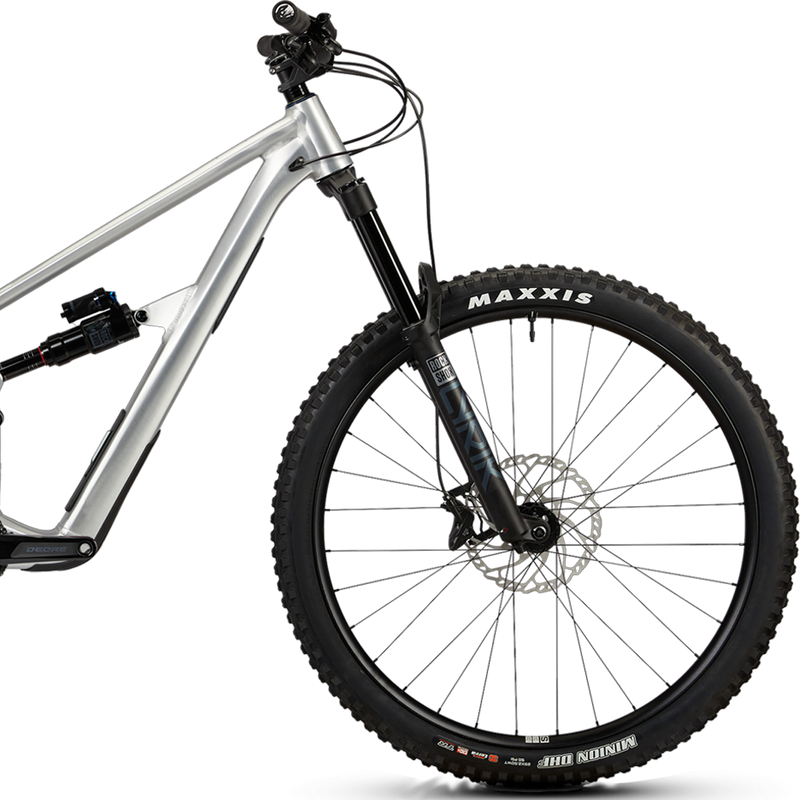

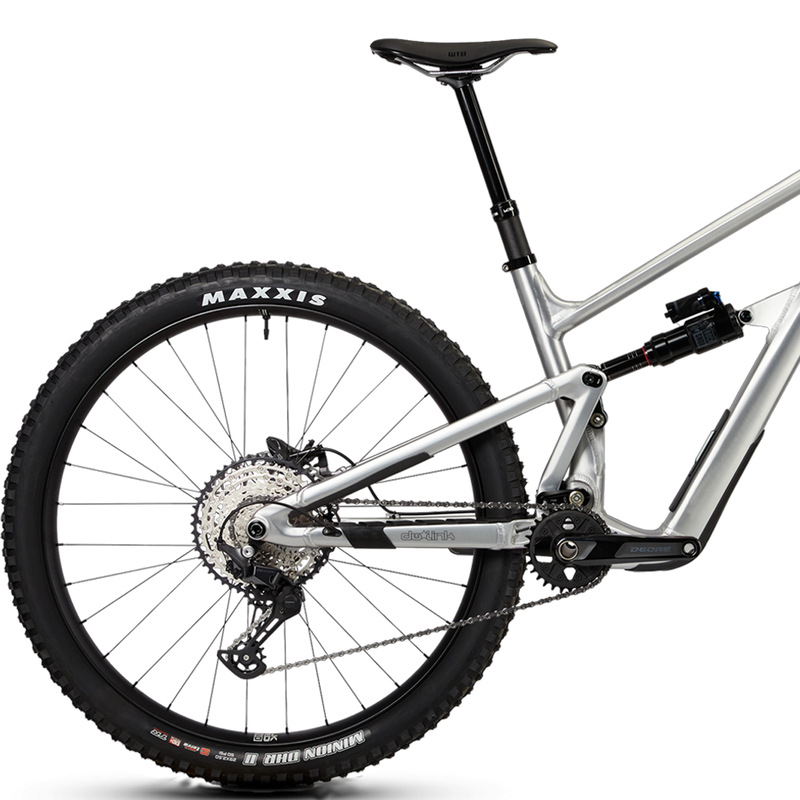

Ripmo AF Deore
The Ripmo AF legend continues, bringing big-mountain capability to a rugged, aluminum package — blending long-travel confidence with trail-friendly efficiency. With 160mm front and 150mm rear travel, dw-link suspension, and Flip chips for using a 27.5” or 29” rear wheel, it’s built for steep descents, chunky terrain, and climbs better than it should. Progressive geometry and a durable frame make it ideal for riders who push hard and want a bike that can keep up, lap after lap. Whether you're racing enduro, exploring alpine singletrack, or sending the local lines, the Ripmo AF delivers the same legendary performance as its carbon sibling. The Ripmo AF has all of the same features as the carbon bike; in-frame storage with two bags, coil compatibility, progressive geometry, all at a more approachable price.
- With 80% of riders falling between 5’5” and 6’0”, Ibis introduced a new "Extra-Medium" size. The extra-medium now sits in the middle of their size range
- Ripmo now has a coil spring friendly progressive shock rate and shorter clevis which makes it compatible with pretty much any coil shock
- Get that gear off your back and into your bike with the frame storage system. The latch operates effortlessly, even in cold, muddy conditions while wearing gloves. The door is water-resistant, rattle-free, and robust
- Set of two internal bags for your snacks, tools, or whatever
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
| COMPONENT | PART |
|---|---|
| Version | V2 |
| Frame Material | Aluminum |
| Fork | RockShox Lyrik, 15QRx110, 160mm |
| Shock | RockShox Super Deluxe Select 230mm x 60mm |
| Shock Specs | 230mm x 60mm (coil shock compatible) |
| Wheel Size | (SM-MD): MX wheels (XM-XL): 29" wheels *MX or 29" option in all sizes via flip chip |
| Wheels | Blackbird Send Alloy (Send I front, Send II rear) |
| Front Tire | Maxxis Assegai 29x2.5 EXO+ |
| Rear Tire | Maxxis DHR II, EXO+ (S-M: 27.5" x 2.5", XM-XL: 29" x 2.5") |
| Front Travel | 160mm |
| Rear Travel | 150mm |
| Boost Axles | 148mm rear / 110mm front |
| Brakes | Shimano Deore, M6120, 4-Piston |
| Rotors (F/R) | Shimano RT-66 6-Bolt 200F/200R |
| Crankset | Shimano Deore M6120 24mm spindle |
| Bottom Bracket | Shimano MT501 (73mm English threaded) |
| Rear Derailleur | Shimano Deore M6100 SGS |
| Derailleur Hanger | SRAM UDH |
| ISCG 05 Compatible | ISCG 05 Tab Mount available separately |
| Shifter | Shimano Deore, M6100 |
| Cassette | Shimano Deore, M6100, 10-51T |
| Chain | KMC X12 |
| Chainstay Length | 29": 435-440mm, MX: 432-437mm |
| Chainline | 55mm chainline |
| Headset | Cane Creek 50: ZS44/ZS56 |
| Grips | Lizard Skins Single Clamp |
| Handlebar | Ibis Aluminum, 780mm |
| Stem | Ibis 31.8mm (S-M: 40mm, L-XL: 50mm) |
| Seatpost | KS Vantage Dropper (S: 110-140mm, M-XM:140-170mm, L-XL: 180-210mm) |
| Seatpost Diameter | 34.9mm |
| Rear Brake | 180mm Post mount / 220mm max rotor |
| Saddle | WTB Silverado Fusion CrMo 142 |
| Bottle Mounts | 26oz bottles fit inside the front triangle on all sizes |
| Frame Storage | Large Internal frame storage with easy access door |
| Frame Storage Bag | Ibis Stow bag |

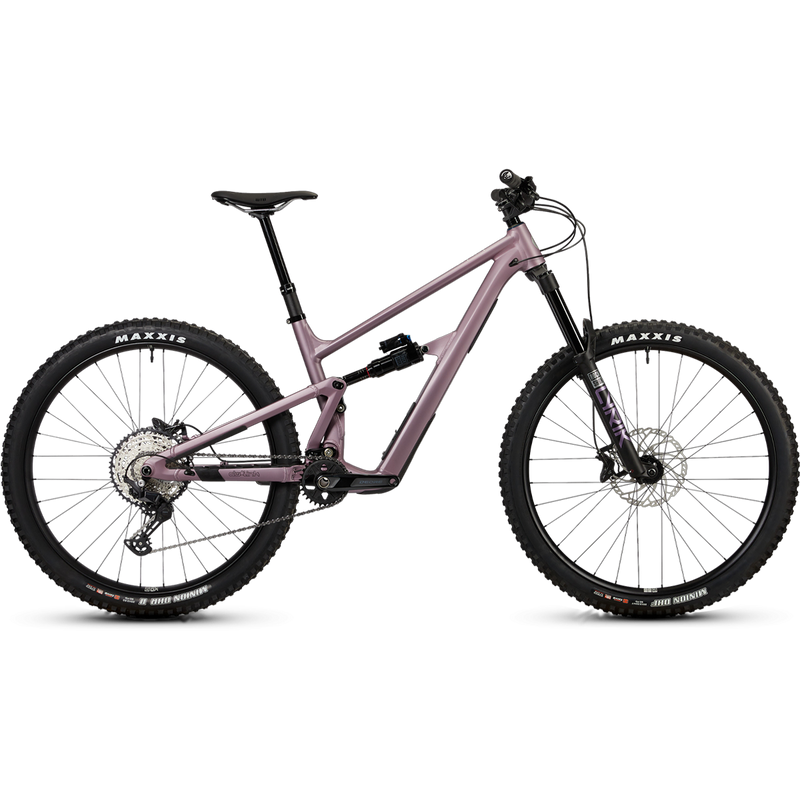

| Colors | Metal AF or Rose Dust |
| Sizes | Small (S), Medium (M), Extra medium (XM), Large (L) and Extra Large (XL) |
* Specs subject to change
