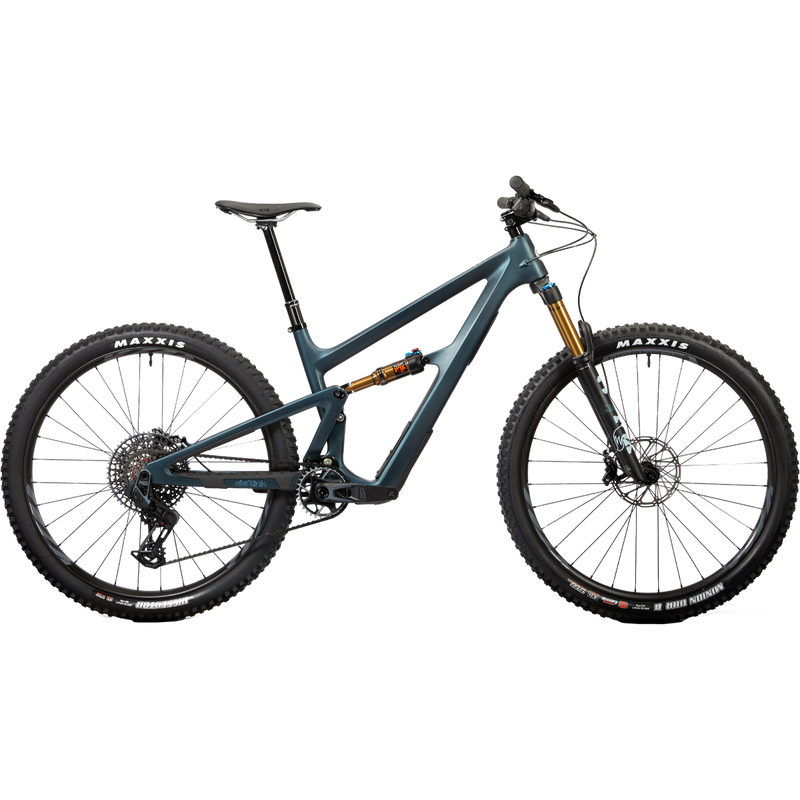

Ripley V5 X0 Transmission
Meet the Ripley, your new best friend for every trail adventure. The award-winning bike has been updated with more travel and slacker geometry, making it even more capable and fun. It rivals the speed of an e-bike uphill while offering snappy, playful performance with 130mm of ultra-efficient dw-link travel. Need to stash your snacks? The Ripley now features internal frame storage for all your stuff. Plus, with expanded size ranges, everyone gets the perfect fit. Whether you’re popping wheelies or conquering climbs, the Ripley is game.
Images may not show actual build kit content. Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
| Component | Part |
|---|---|
| Frame Material | Carbon Fiber Monocoque |
| Fork | Fox Float 34, Factory Series, Grip X, 140mm, 29", 110mm x 15mm |
| Shock | Fox Float, Factory Series, Float w/EVOL, 210mm x 52.5mm |
| Wheels | Blackbird Send Alloy, 32 Hole, Ibis Logo Hubs, 29" |
| Front Tire | Maxxis DHR2, 29" x 2.4", Exo, TR |
| Rear Tire | Maxxis Rekon, 29" x 2.4", Exo, TR |
| Brakes | SRAM Code RSC, 4 Piston |
| Rotors (F/R) | SRAM Centerline, F/R: 180mm |
| Crankset | SRAM X0, Eagle Transmission, DUB Wide S-M: 165mm, XM-XL: 170mm |
| Bottom Bracket | SRAM DUB BSA |
| Rear Derailleur | SRAM X0, Eagle Transmission |
| Shifter | SRAM X0, Eagle Transmission |
| Cassette | SRAM X0, Eagle Transmission, 10-52T |
| Chain | SRAM X0, Eagle Transmission |
| Headset | Cane Creek 40 ZS44/ZS56 |
| Grips | Lizard Skin Charger |
| Handlebar | Blackbird Hi Fi, 35mm, 800mm |
| Stem | Blackbird, 35mm S-M: 35mm, XM-XL: 50mm |
| Seatpost | Bike Yoke Revive Dropper 34.9mm S: 125mm, M: 160mm, XM: 185mm, L-XL: 213mm |
| Saddle | WTB Silverado, Fusion, 142mm |
| Power | SRAM AXS Battery & Power Pack Charger |
| Frame Weight | 7.3 lbs XM frame w/ Fox Float |
| Wheel Size | 29" (MX optional via Flip Chip) |
| Front Travel | 140mm |
| Rear Travel | 130mm |
| Shock Specs | 210mm x 52.5mm |
| Boost Axles | 148mm rear / 110mm front |
| Seatpost Diameter | 34.9mm |
| Rear Brake | 180mm Post mount / 220mm max rotor |
| Chainstay Length | 433-438mm |
| Bottom Bracket | Threaded BB (73mm BSA) |
| Chainline | 55mm chainline |
| Derailleur Hanger | SRAM UDH |
| ISCG 05 Compatible | ISCG 05 Tab Mount available separately |
| Headset | ZS44 upper / ZS56 lower |
| Bottle Mounts | 22oz bottle on size small, 26oz on all other sizes |
| Frame Storage | Large Internal frame storage with easy access door |
| Colors | Blue Hour or Green Flash |
| Frame Storage Bag | Sustainably sourced internal frame bags produced in partnership with Cotopaxi |
| Sizes | Small (S), Medium (M), Extra medium (XM), Large (L) and Extra Large (XL) |
* Specs subject to change
