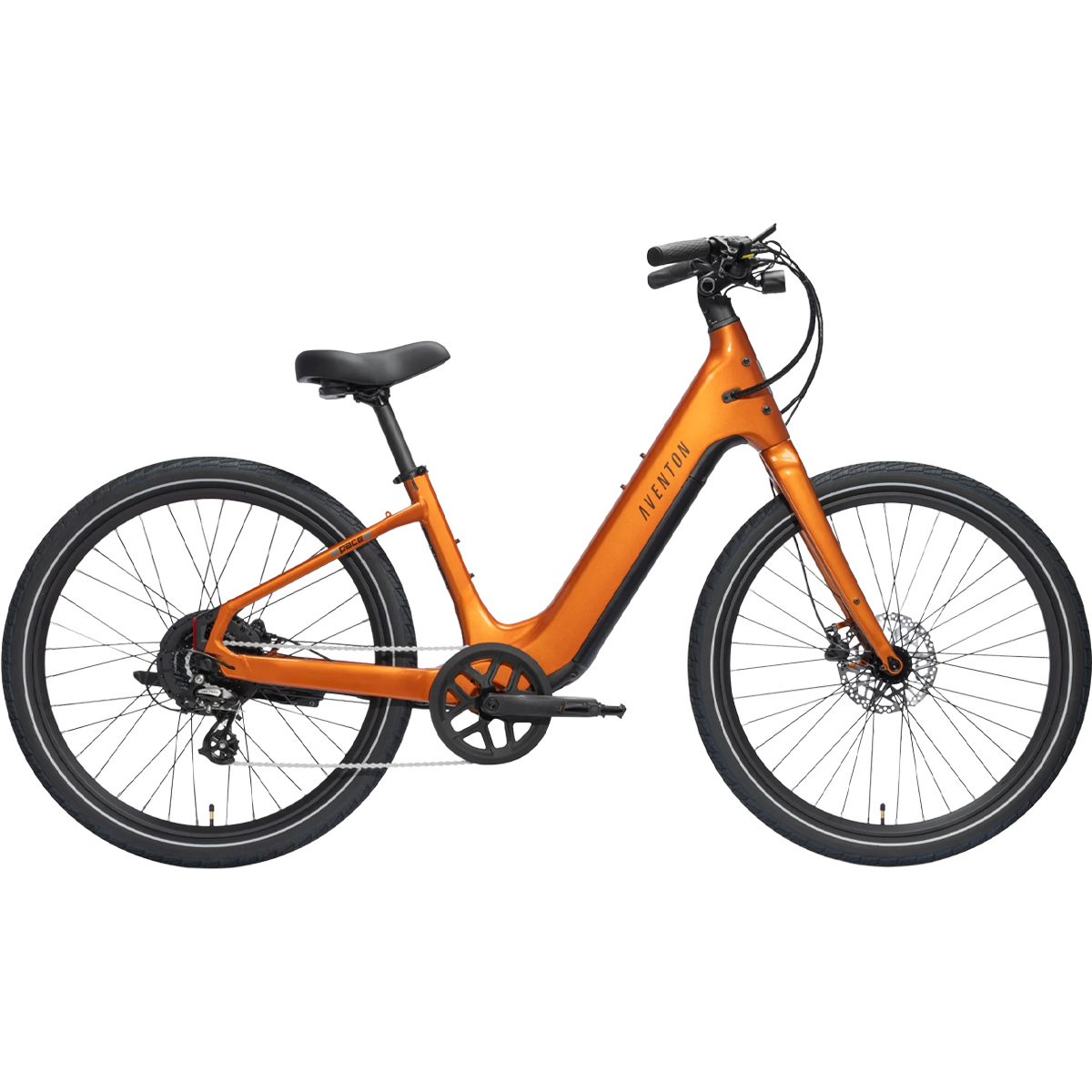

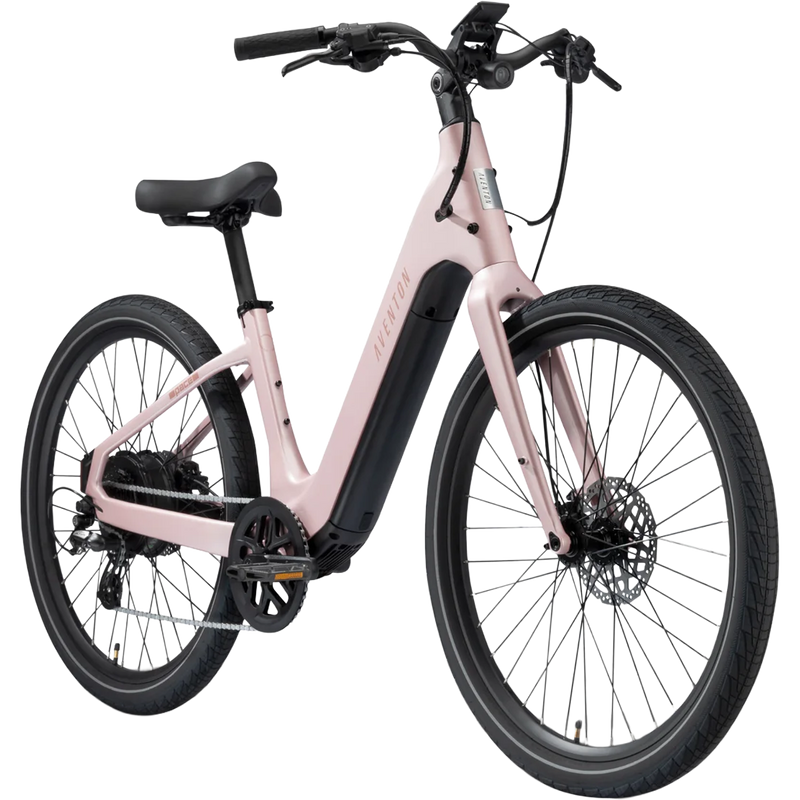

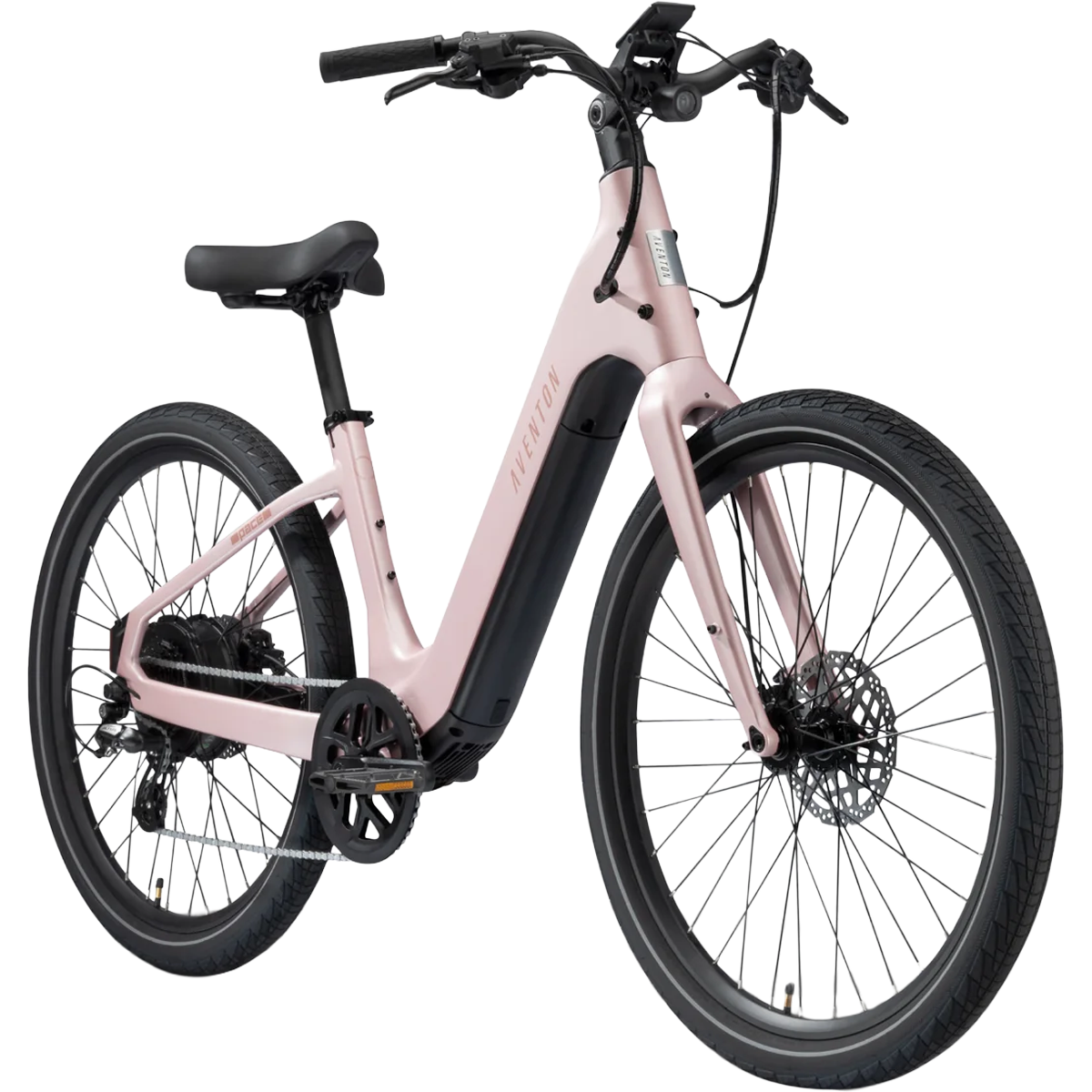

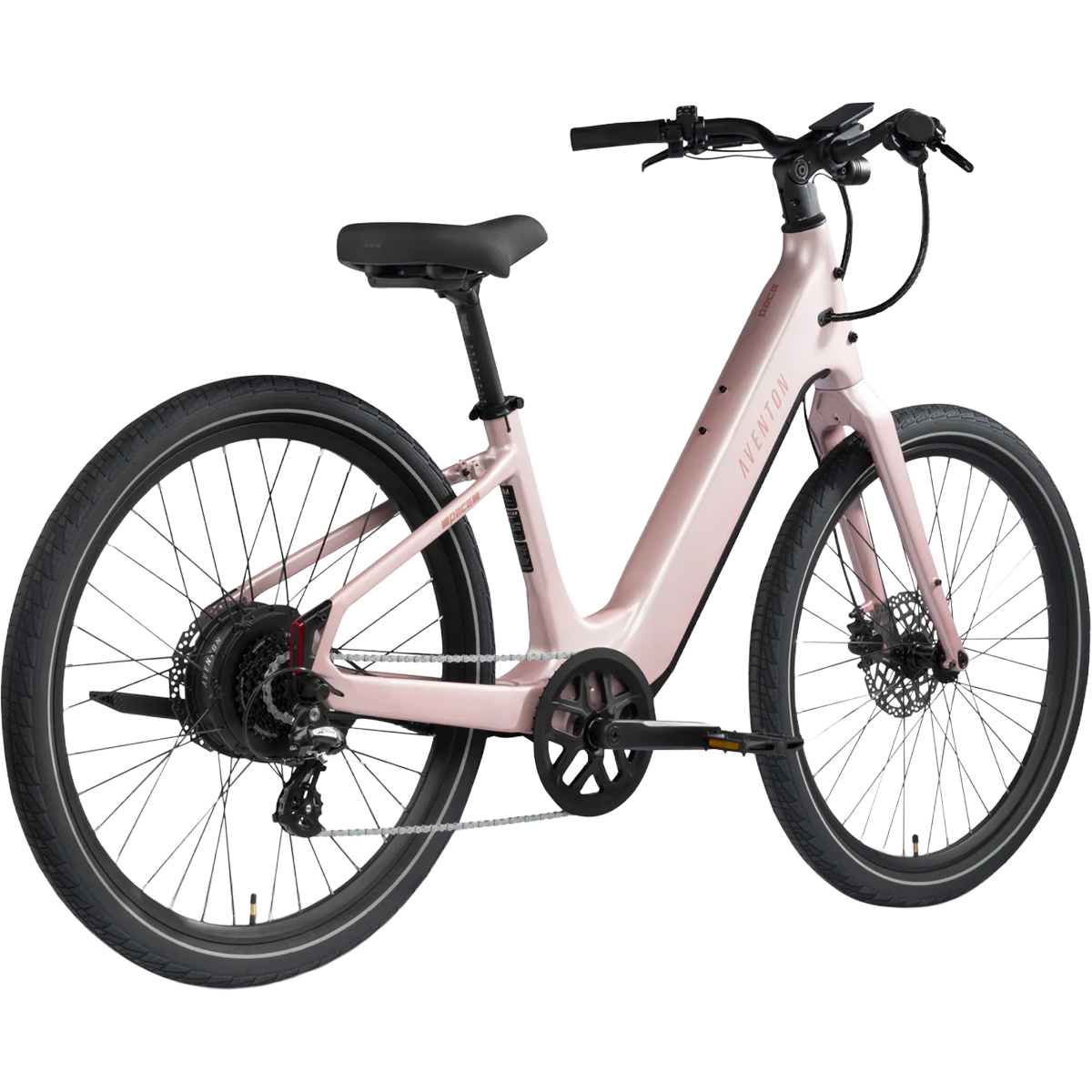

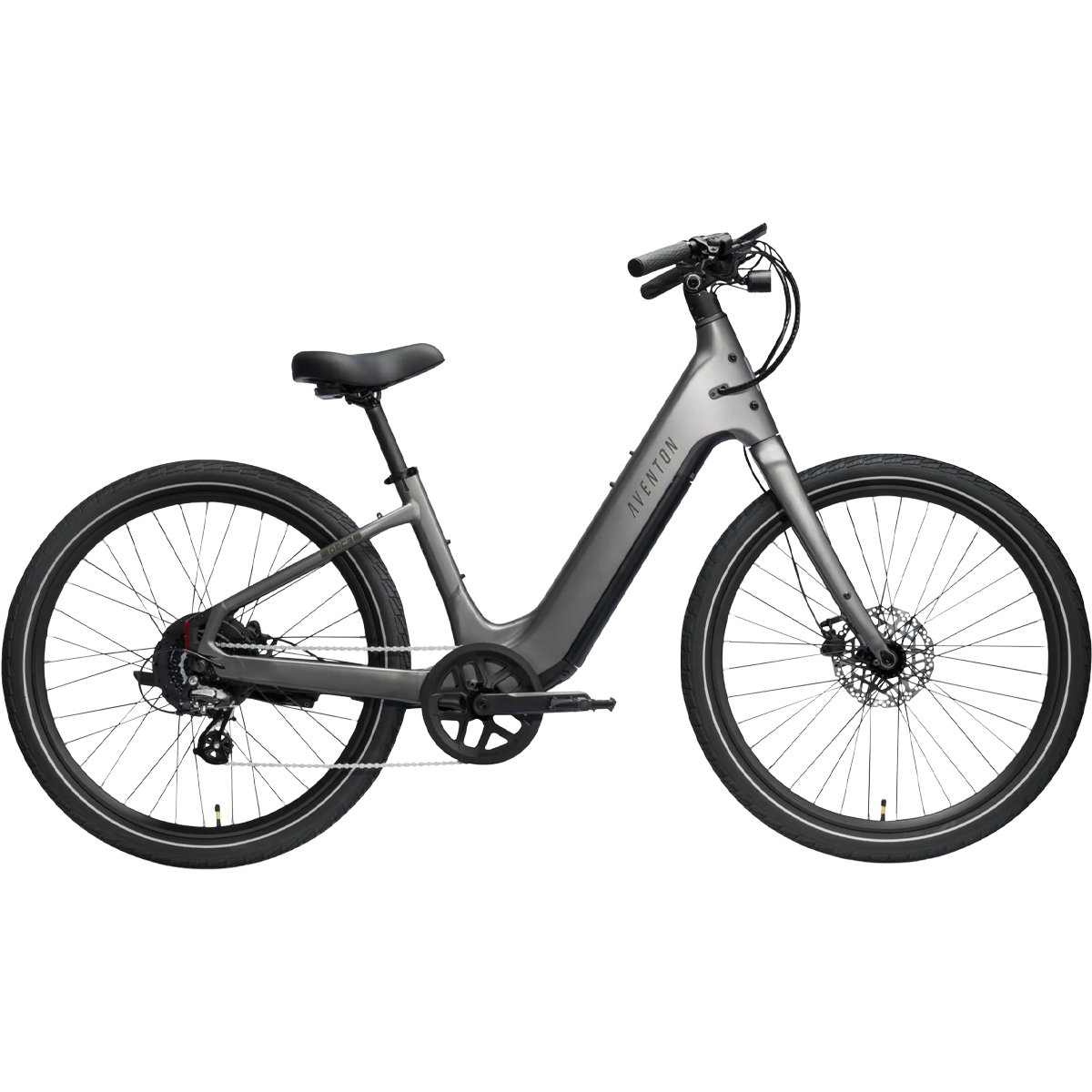

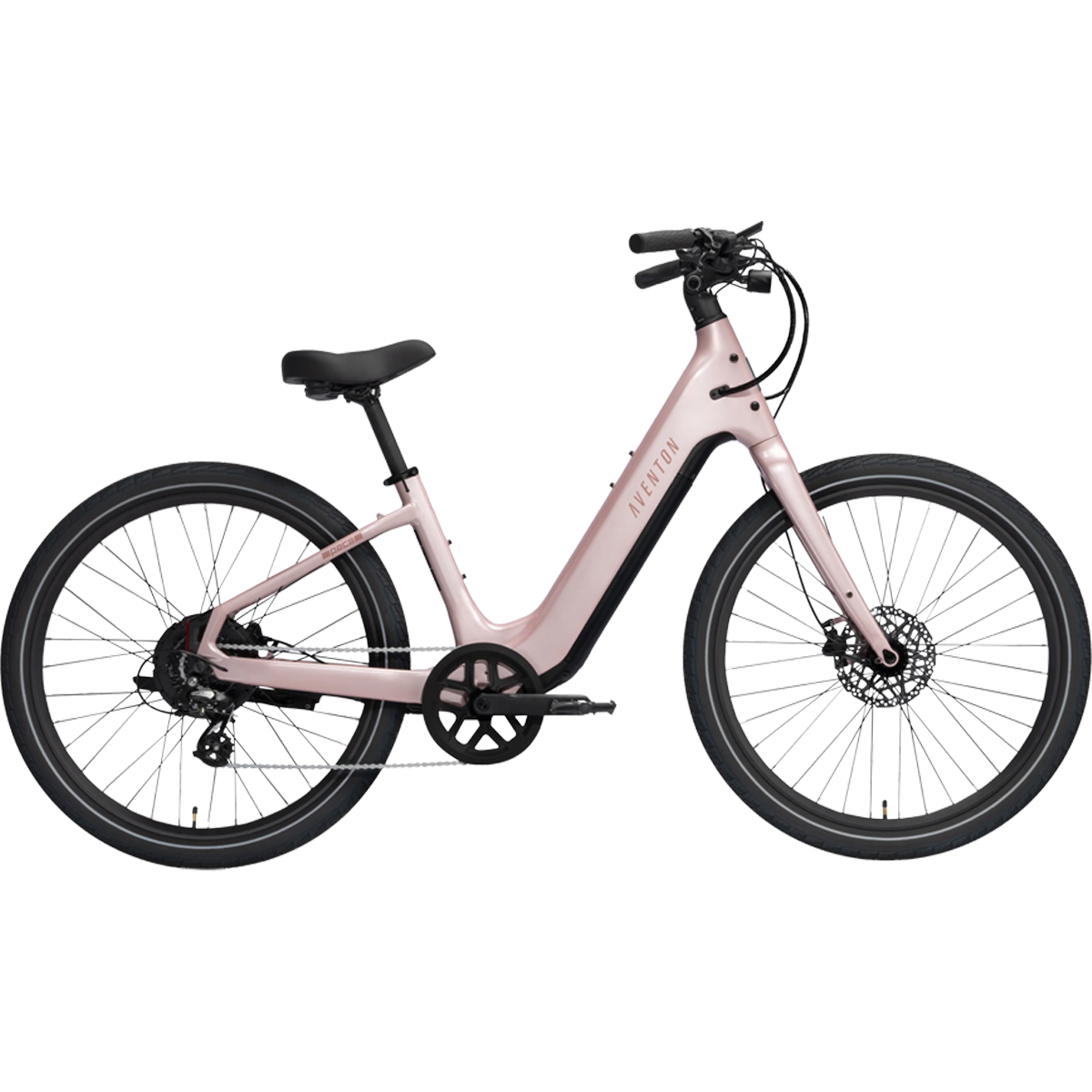

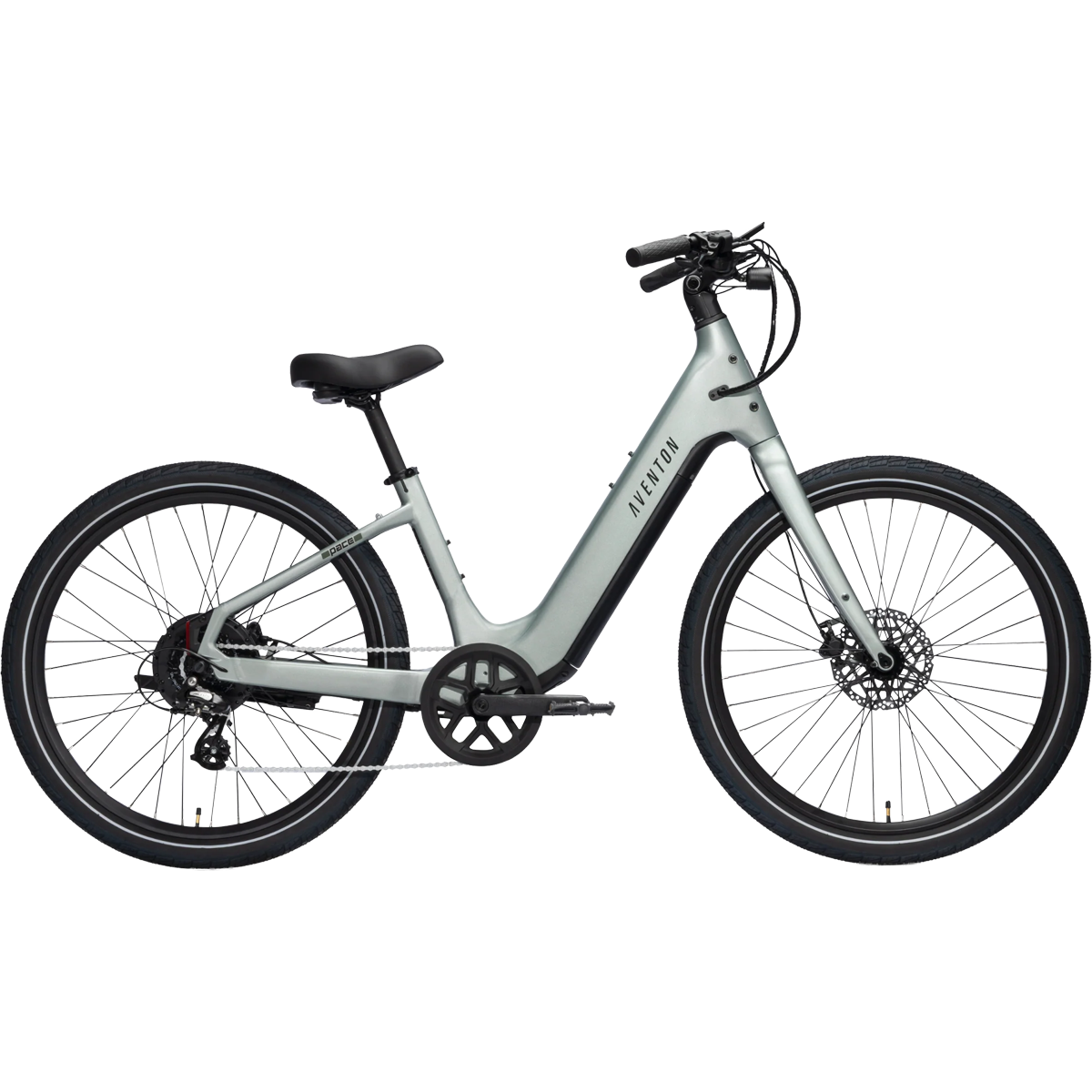

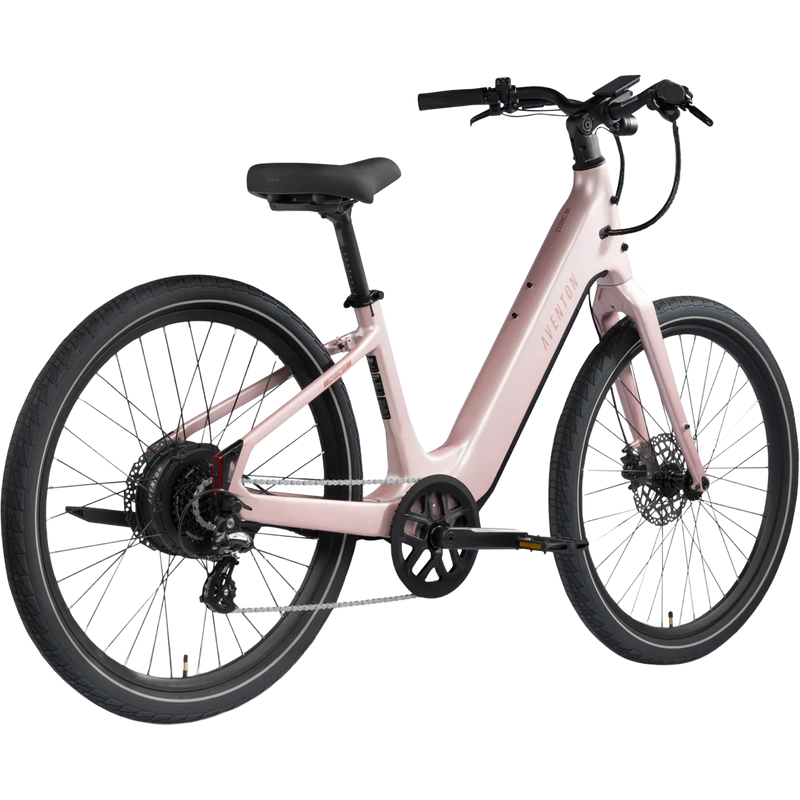

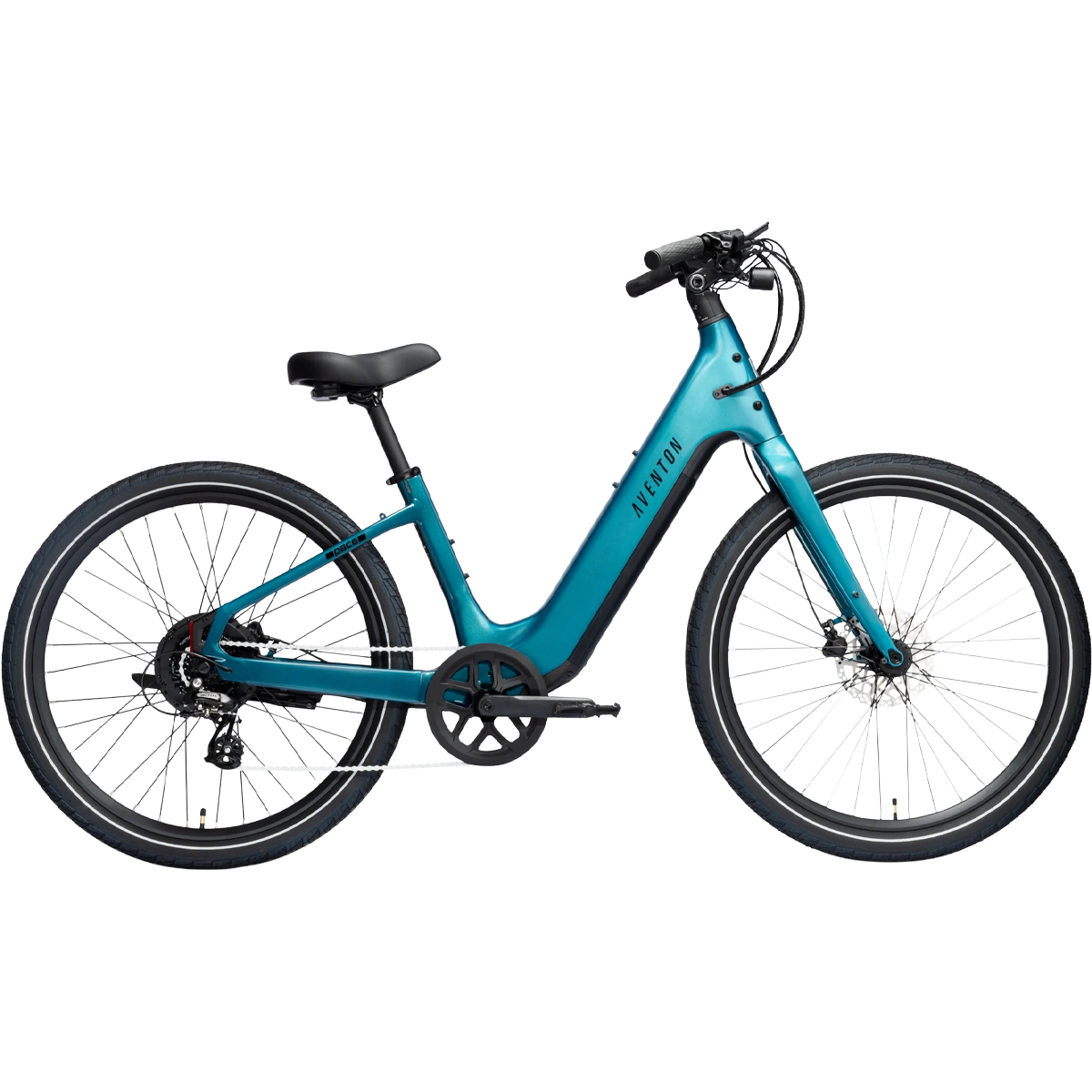

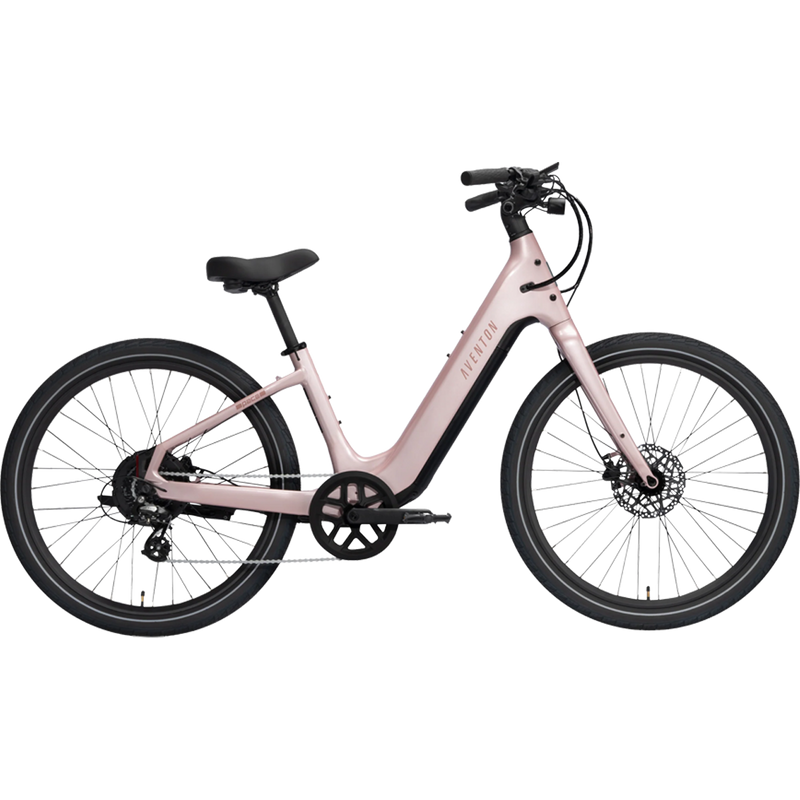

Pace 5 REC
The Aventon Pace 5 Rec is built for riders who demand more from every mile. Its gravity-cast aluminum frame houses a powerful 36V, 750W motor — capable of surging to 1,440W in Boost Mode — paired with a high-capacity 733Wh LG 21700 battery that goes further thanks to regenerative braking: a system that captures kinetic energy during braking and coasting, converting it back into usable charge so less energy is ever wasted. Four pedal assist modes — Eco, Sport, Turbo, and Boost — let you dial in exactly the ride you want, while Class 2 throttle and pedal assist keep you cruising up to 20mph (convertible to Class 3 where permitted). ACU Technology ensures smooth, intelligent power delivery across every mode, and an integrated rear wheel lock means security is always with you. The Pace 5 Rec isn't just an e-bike — it's a smarter way to ride.
- Class 2 throttle and pedal assist up to 20mph (convertible to Class 3 where local laws and regulations allow)
- Gravity cast aluminum construction
- Motor: 36V, 750W (1188W Peak, 1440W
in Boost Mode)
- Battery: 36V, 20Ah, 733Wh, LG21700
cells
- Controller: 36V, 33A
- ACU Technology
- Integrated Rear Wheel Lock
- PAS Modes: Eco, Sport, Turbo, Boost
- Regenerative Braking
- 300lb weight limit
- Up to 75 miles of range
- Weight: 61 pounds
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
| COMPONENT | PART |
|---|---|
| Motor | 36V, 750W Hub Motor (1440W peak in Boost Mode) |
| Throttle | Aventon LH Handlebar Mounted |
| Display | Aventon A280 Customizable Center Display |
| Battery | Removable internal lithium-ion 36V, 20Ah, 733Wh (LG 21700 cells) |
| Charger | 36V Output: 42V/4A |
| Range | Up to 75 miles |
| Frame | 6061 Aluminum, Gravity Cast Front Triangle |
| Fork | Aventon Rigid Alloy |
| Bottom Bracket | Square taper, sealed, double-sided torque sensor, 83mm x 158.5mm |
| Crankset | 3-piece, 165mm crank arm |
| Rear Derailleur | Shimano Altus 8-speed RD-M310 |
| Cassette | Shimano CS-HG200-8, 8-speed, 12-32T |
| Chain | 7/8 speed, 122L |
| Shifter | Shimano 8-speed trigger SL-M315-8R |
| Brakes | Tektro HD-E310 hydraulic disc, 180mm 6-bolt rotors (front & rear) |
| Front Wheel | 27.5" double wall aluminum rim, 36h, 13g spokes, 15x100mm thru-axle, Schrader valve |
| Rear Wheel | 27.5" double wall aluminum rim, 36h, 12g spokes, 750W nutted hub motor, Schrader valve |
| Tires | 27.5 x 2.1", 33 TPI |
| Handlebars | Aventon aluminum swept-back, 31.8mm clamp, 620mm width, 38mm rise |
| Stem | 60mm length, adjustable rise, 31.8mm clamp |
| Grips | Aventon lock-on grips |
| Saddle | Aventon saddle, 250mm wide |
| Seatpost | Aventon seatpost, 30.9mm, 300mm (Size R) / 350mm (Size L) |
| Seat Clamp | 34.9mm |
| Pedals | 9/16" composite platform |
| Water Resistance | IPX5 |
| Safety Certs | UL 2849 (bike), UL 2271 (battery) |
| Ebike Class | Class 2 (Class 1 & 3 capable) |
| Weight | 60.48 lbs / 27.2 kg |
| Weight Limit | 300 lbs |
* Specs subject to change
