Description

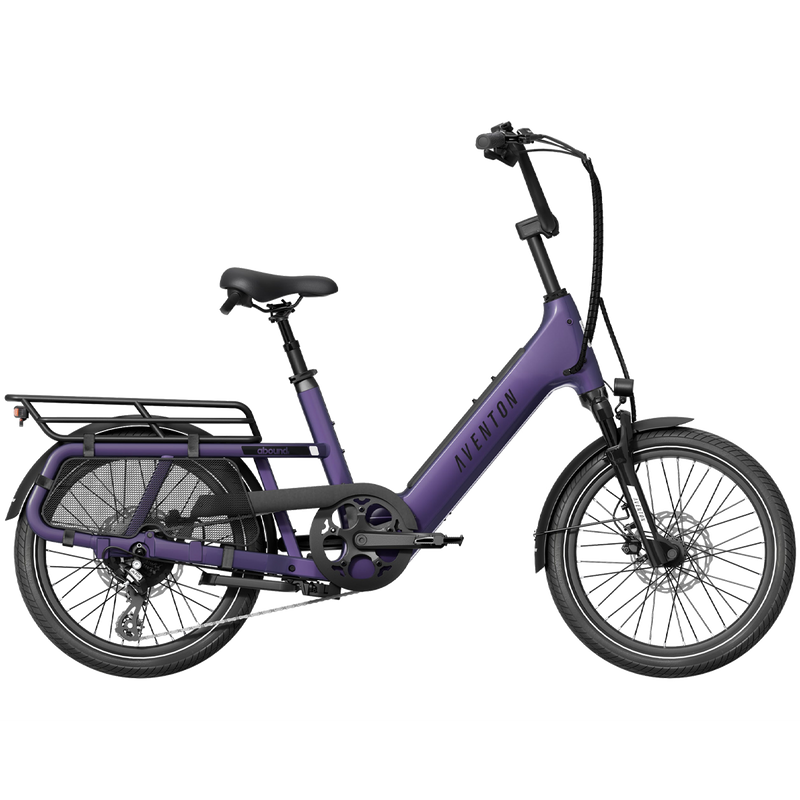

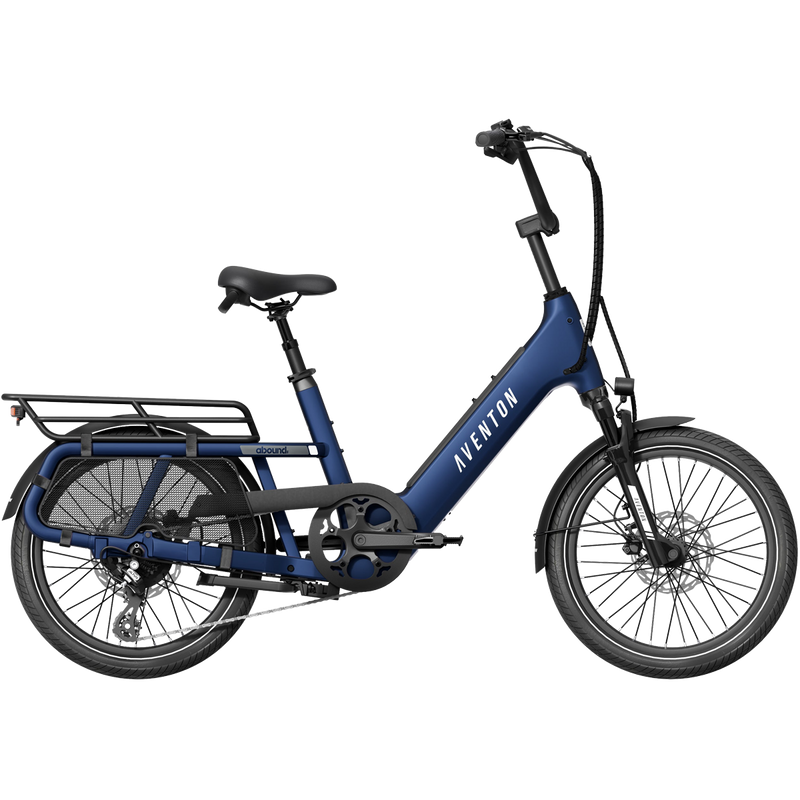

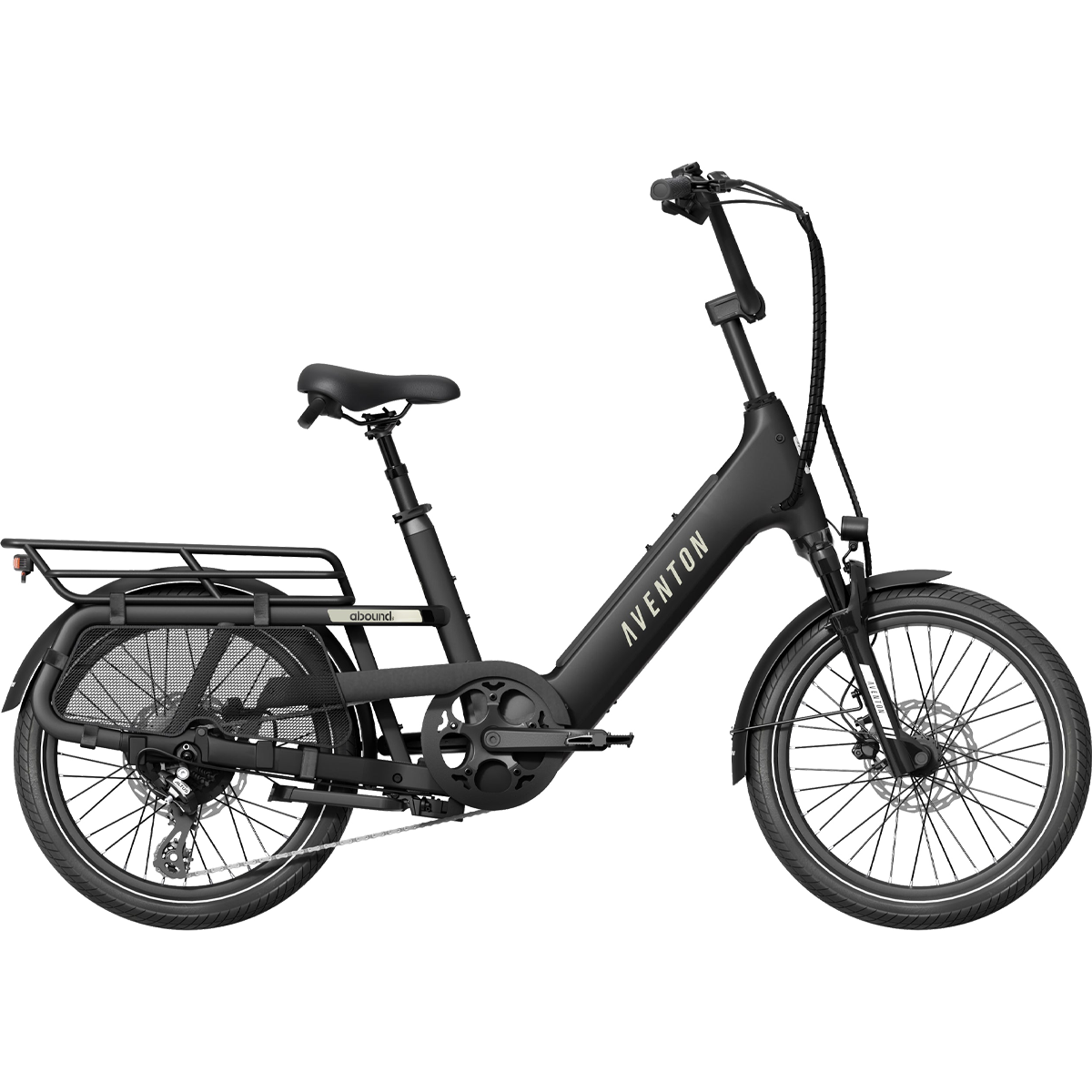

Introducing the all-new Abound SR—the enhanced cargo ebike built to carry anything and tackle every challenge. Whether you're cruising through the streets or bike pooling with a friend, the Abound SR is always ready for any action. Its compact frame keeps you agile, while advanced security and GPS features give you total peace of mind. Outfitted with an adjustable quill stem, suspension seatpost, and cutting-edge theft deterrent features, every ride is smooth, secure, and stress-free. Whether it’s a quick trip or a big haul, the Abound SR is your go-to for dominating the road. It’s SRsly fun.
- The revolutionary Aventon Control Unit (ACU) keeps you fully protected and always connected — all at the same time. Augmented security features including Remote Lock, Geofencing and Passcode safeguards your Abound SR and deliver an ultimate peace of mind
- The Abound SR’s Ride Tune feature, available in the Aventon app, allows for custom motor tuning in Eco, Trail, and Turbo modes. Riders can adjust Assistance, Max Torque, and Acceleration settings, enhancing the riding experience through the app or handlebar controls
- The Abound SR shines when it comes to utility, making it an excellent choice for cargo transportation. It comes equipped with a sturdy rear rack, fenders, and a mesh wheel guard, offering plenty of space for groceries, school bags, or gear for weekend adventures. With its 440 lbs weight capacity, it’s the ultimate workhorse on two wheels
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
-
Battery
36V, 20Ah, 708Wh, LG 21700 cells -
Max Torque
80Nm -
Motor
36V 750w Hub Drive with 6 speed sensors -
Range
Up to 60 miles -
Top Speed
Class 2: Top speed 20 mph
Component | Part |
---|---|
MOTOR | 36V 750w Hub Drive with 6 speed sensors |
MOTOR TORQUE | 80Nm |
THROTTLE | Aventon LH Handlebar Mounted |
DISPLAY | Aventon BC147 |
SPEED | (Class 2) 20 mph top speed |
BATTERY | Aventon 36V, 20Ah, 708Wh, LG 21700 cells |
SENSORS | Double Sided Bottom Bracket Torque Sensor |
PEDAL ASSIST | 3 Levels |
CHARGER | Aventon 4A 42V |
RANGE | Up to 60 miles |
FRAME | 6061 Aluminum Alloy with Internal Battery. One piece - Diecast aluminum front triangle |
WEIGHT | 80 lbs |
PEDALS | 9/16" Composite Platform |
FORK | Threaded Steerer Tube for Quill Stem 15x110 spacing, 50mm travel, adjustable lockout, black stanchions |
TOTAL WEIGHT LIMIT | 440 lbs |
REAR RACK WEIGHT LIMIT | 143 lbs |
REAR DERAILLEUR | Shimano Altus RD-M310 8 Speed |
CRANK | 3 piece with 165mm crank arms |
CASSETTE | Shimano CS-HG200-8 8 speed Cassette, 12-32T |
SHIFT LEVER | Shimano SL-M315-8R 8 Speed |
BRAKES | Tektro HD-E3520 hydraulic disc brakes |
BRAKE ROTOR | (F) Tektro 180mm 6 bolt (R) Tektro 203mm 6 bolt |
CHAIN | 122 Link, 8 Speed |
CHAINRING | 52 tooth |
WHEELS | 20-inch, 12-gauge, 36-hole, double-wall aluminum, black |
TIRES | 20 x 3.0 urban tire with reflective sidewalls |
SADDLE | Aventon by SelleRoyal |
SEATPOST | 30.9mm Suspension Seatpost with 50mm travel |
STEM | Quill Stem with 31.8mm bar clamp diameter, 40mm length, and 140mm of vertical adjustment |
SEAT CLAMP | 34.9mm Quick Release |
HANDLEBARS | BMX Style, 31.8mm bar clamp, 680mm width |
GRIPS | Lock-on ergonomic |
ECU | Aventon ECU Module featuring wired CAN communication, GPS positioning support, wireless Bluetooth connectivity, and cellular communication capabilities |
WATER RESISTANCE | IPX4 |
SAFETY CERTIFIED | UL Certified - Abound SR UL 2849, Battery UL 2271 |
IDEAL USE | Cargo & Utility |
INCLUDED ACCESSORIES | Rear Rack, E-lock Kickstand, Rear Wheel Mesh Guards |
* Specs subject to change
