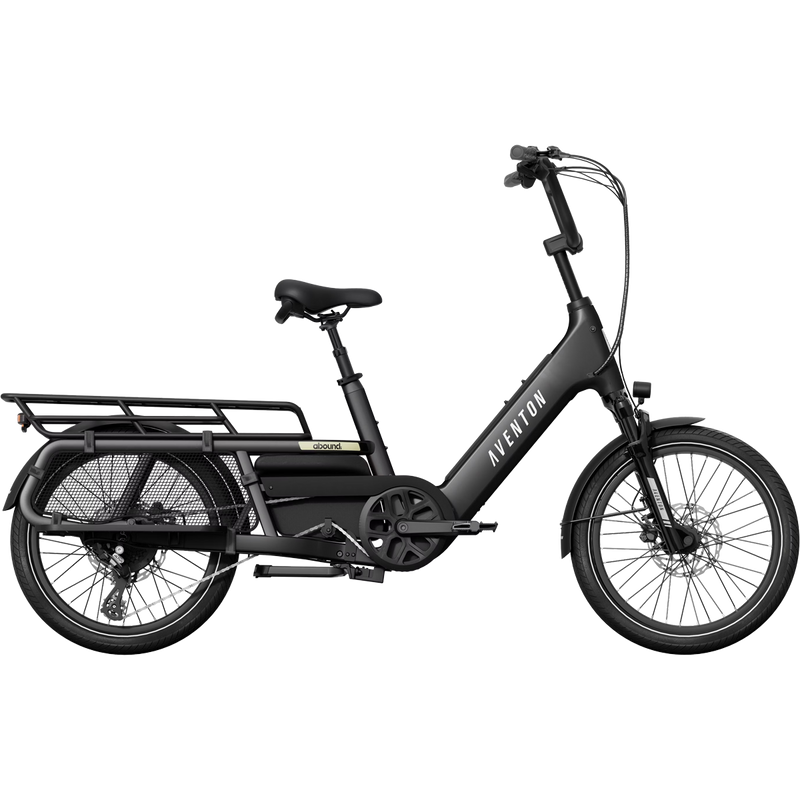

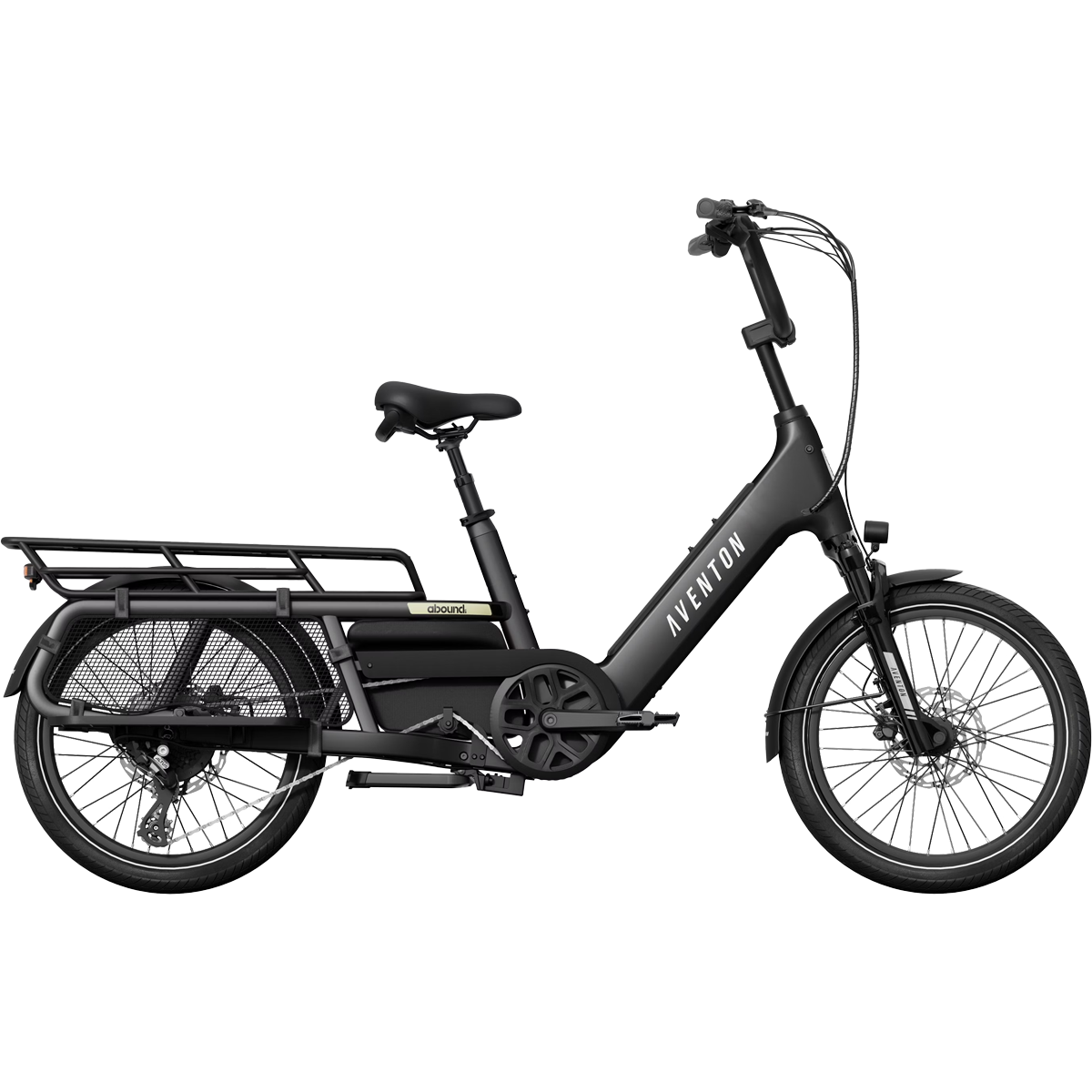

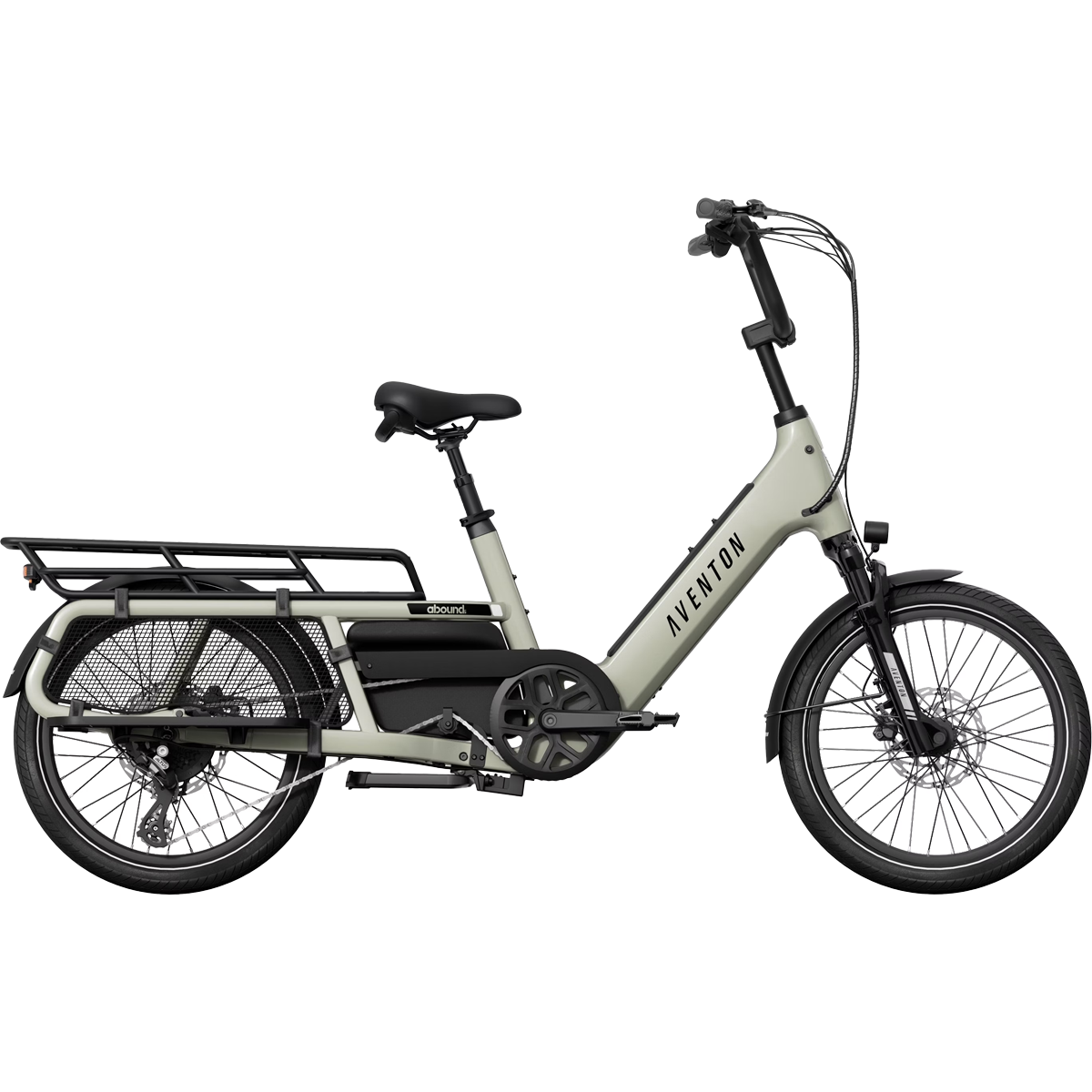

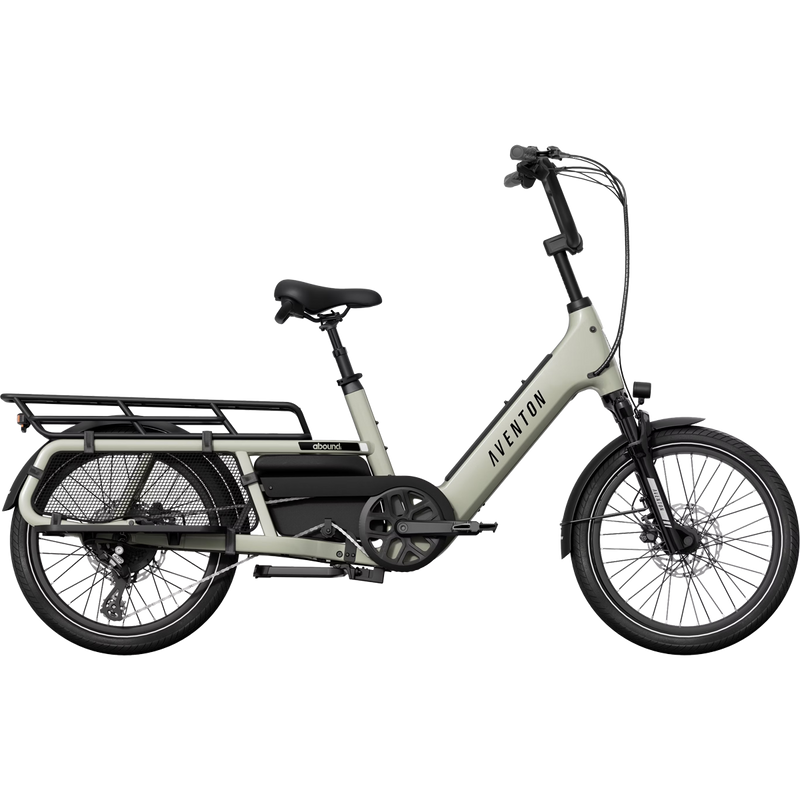

Abound LR

Abound LR
$1,999.00

Color Matte Stealth
Size One Size Size Chart
Quantity:
Not available for shipping
Learn more
Not available for DoorDash
Learn more
  • Battery: Removable Internal Lithium-ion, 36v
  • Max Torque: 80Nm
  • Motor: Shengyi 36V 750w
  • Range: Up to 60 miles
  • Top Speed: Class 2: Top speed 20 mph
The Abound LR is the answer to all your cargo conundrums! The 750W motor, long rear rack, and 440lb payload capacity make this the ultimate cargo carrier. Whether you're loading up the kids, your beach day essentials, or your most ambitious grocery h
Returns & Price Matching
ComponentPart
EBIKE CLASSClass 2 Ebike
MOTORShengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)
THROTTLEAventon LH Handlebar Mounted
MOTOR TORQUE80Nm
CONTROLLER36V/33A
DISPLAYAventon BC147
SPEEDClass 2 - Up to 20 mph
BATTERY WEIGHT8.7lbs
BATTERYRemovable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
SENSORSDouble Sided Bottom Bracket Torque Sensor
PEDAL ASSIST3 Levels (with Ride Tune Customization)
CHARGER36V Output: 42V/ 4A
CHARGING TIME FROM 0% TO 100%5 hours
RANGEUp to 60 miles
FRAMEGravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery
WEIGHT88lbs
PEDALS9/16" Composite Platform
FORKThreaded Steerer Tube for Quill Stem 15x110 spacing, 51mm travel, adjustable lockout black stanchions
REAR SPACING175mm
FORK SPACING110mm
CARRY CAPACITYCarry Up To 2 Passengers
TOTAL WEIGHT LIMIT440 lbs
REAR RACK WEIGHT LIMIT143 lbs

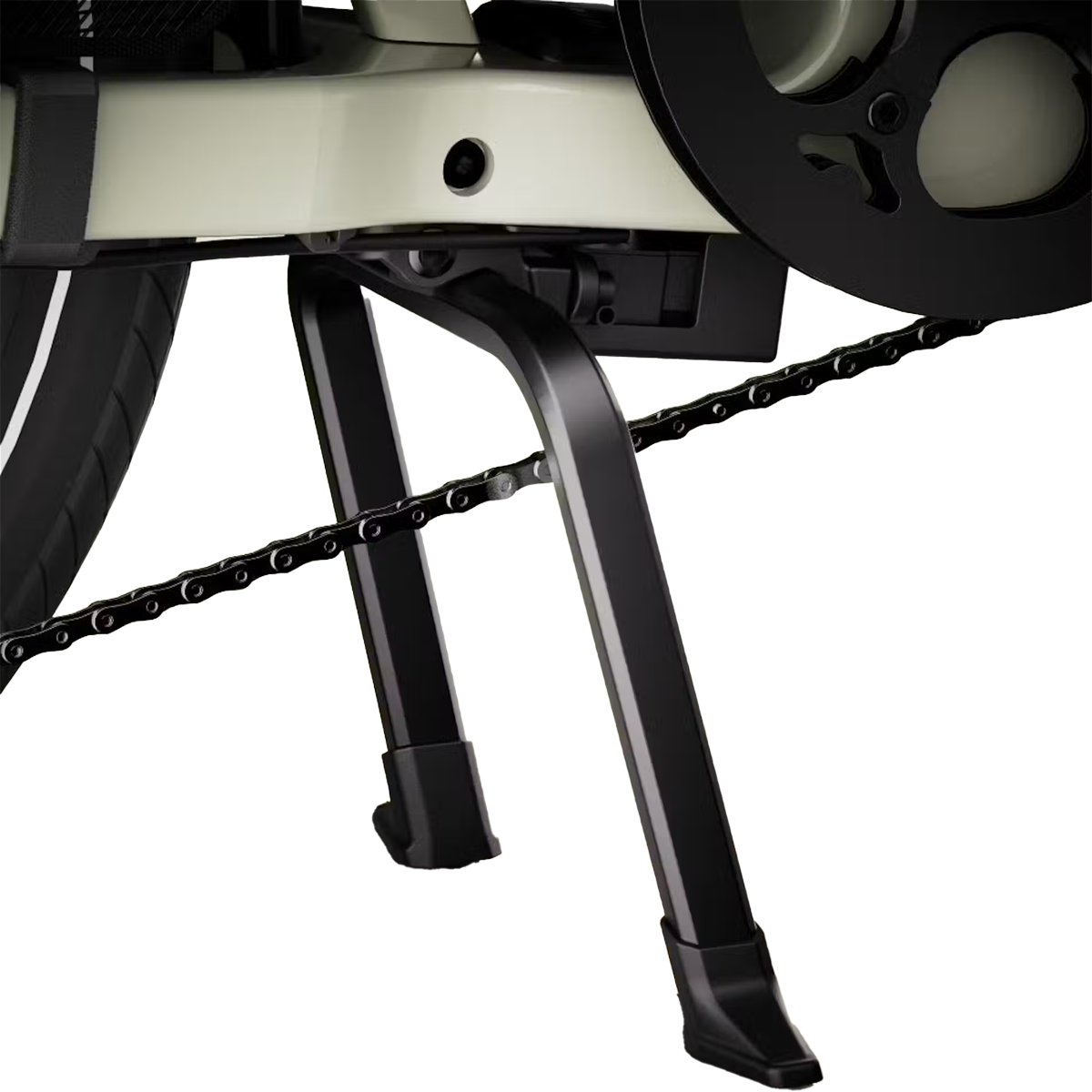

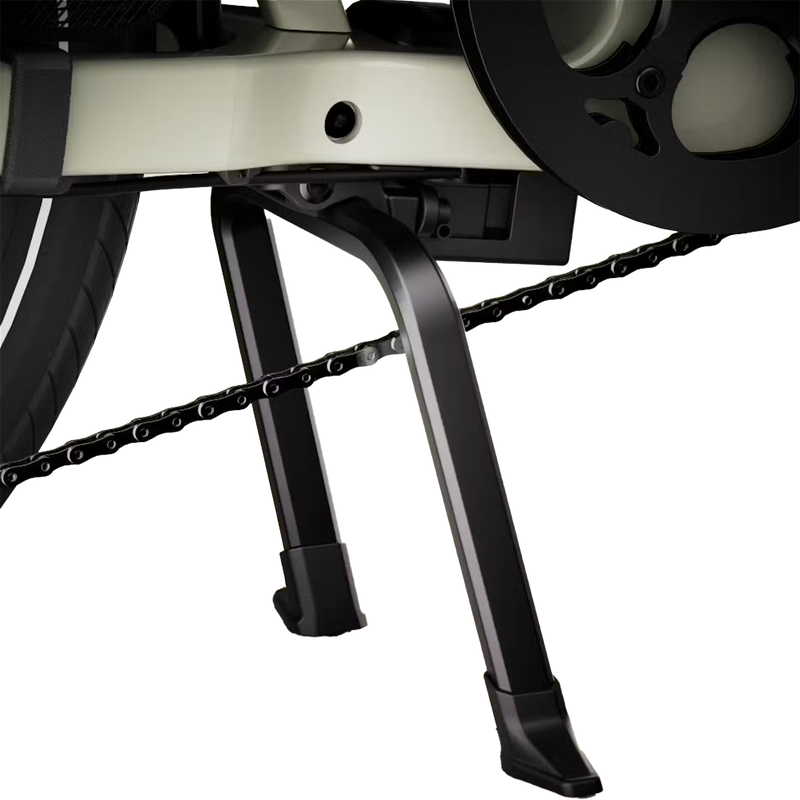

KICKSTANDE-Lock Kickstand w/ Alarm
BOTTOM BRACKETSquare Taper, Sealed, Dual-Sided Torque Sensor
CRANKSET3pc, 165mm crank arm
REAR DERAILLEURShimano Altus RD-M310 8 Speed
CASSETTE12-32T / 8 Speed Shimano CS HG200-8
LIGHTSFront and Rear Lights Integrated w/ Turn Signals
SHIFTERShimano 8 Speed Trigger SL-M315-8R
FRONT BRAKETektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
REAR BRAKETektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
FRONT BRAKE ROTOR180mm 6 bolt
REAR BRAKE ROTOR203mm 6-bolt
CHAIN7/8 speed 154L
CHAINRING52 tooth
CHAINRING BCD104
FRONT WHEELDouble Wall Aluminum, 20in, 36hole, 13g, 20x110 Thru Axle, Schrader Valve
REAR WHEELDouble Wall Aluminum, 20in, 36hole, 12g, Nutted Hub Drive Motor, Scharder Valve
TIRES20x3.0 Innova IA-2131 Urban Tire Refective Sidewalls
SADDLEAventon Saddle w/ grab handle by Selle Royal
SEATPOSTAventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
SEATPOST CLAMP34.9mm
HANDLEBARSBMX Style Aluminum 31.8mm, 720mm
HEADSETH886HW Peilin 28.6mm * 56mm * 56mm H19.5mm 6pcs
GRIPSAventon Ergonomic Comfort lock on grips

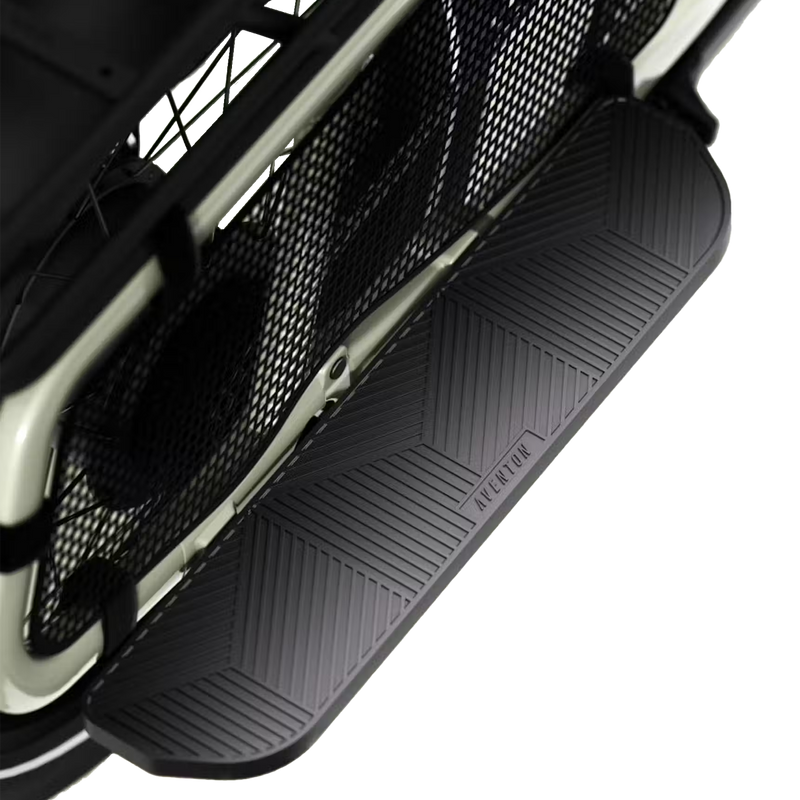

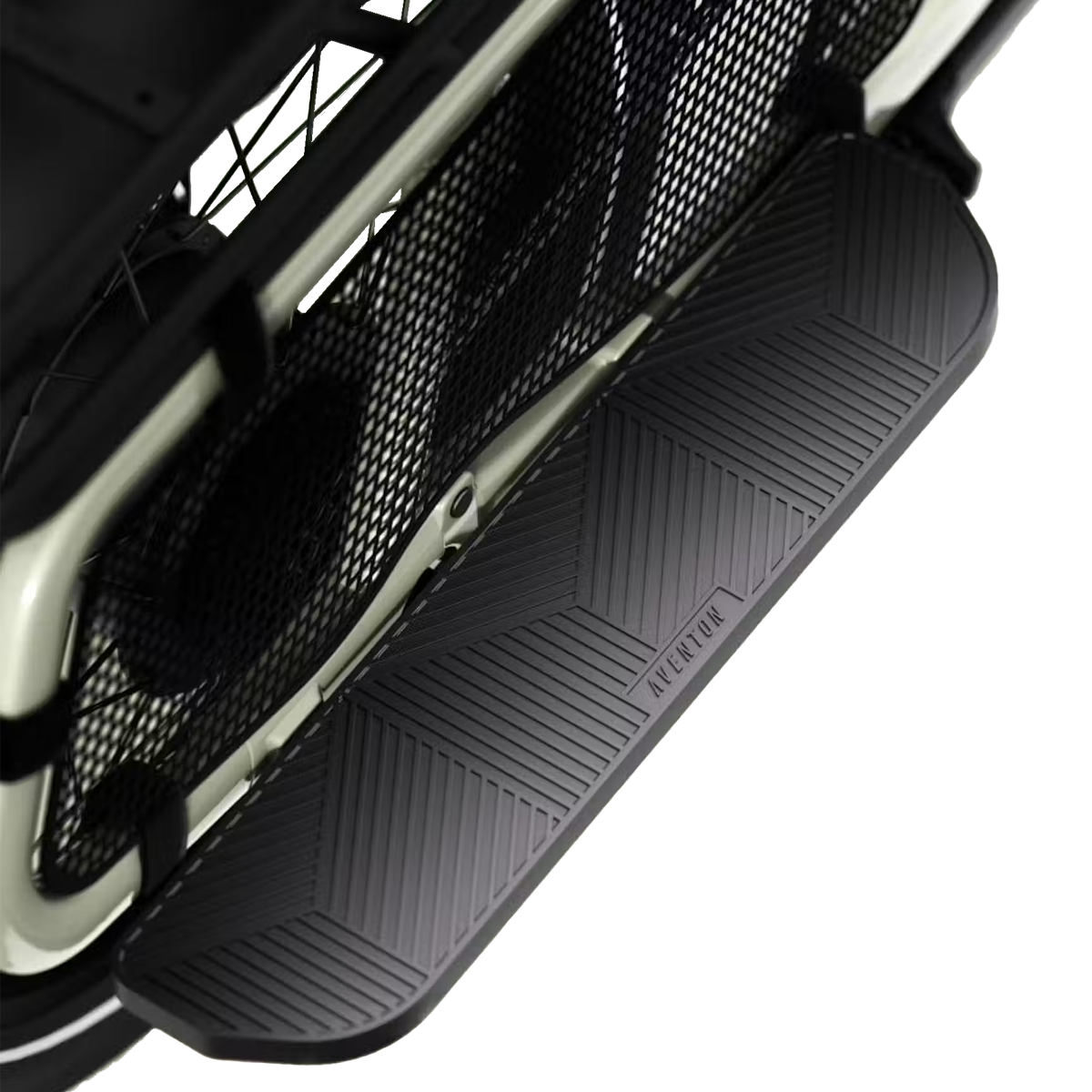

FOOTBOARDSIncluded
STORAGE BAGLocking, Included
REAR RACK/FENDERSIncluded
WATER RESISTANCEIPX4
BATTERY SAFETY CERTIFICATIONSCertified to UL 2271
SAFETY CERTIFICATIONSUL and TUV Safety Certified
UL 2849
IDEAL USECargo & Utility

* Specs subject to change
