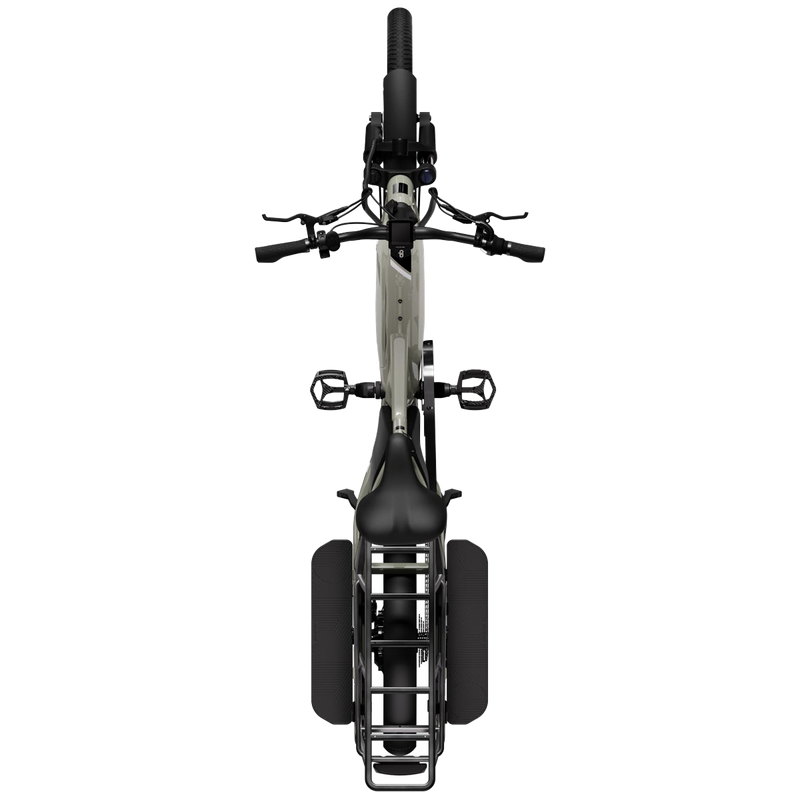

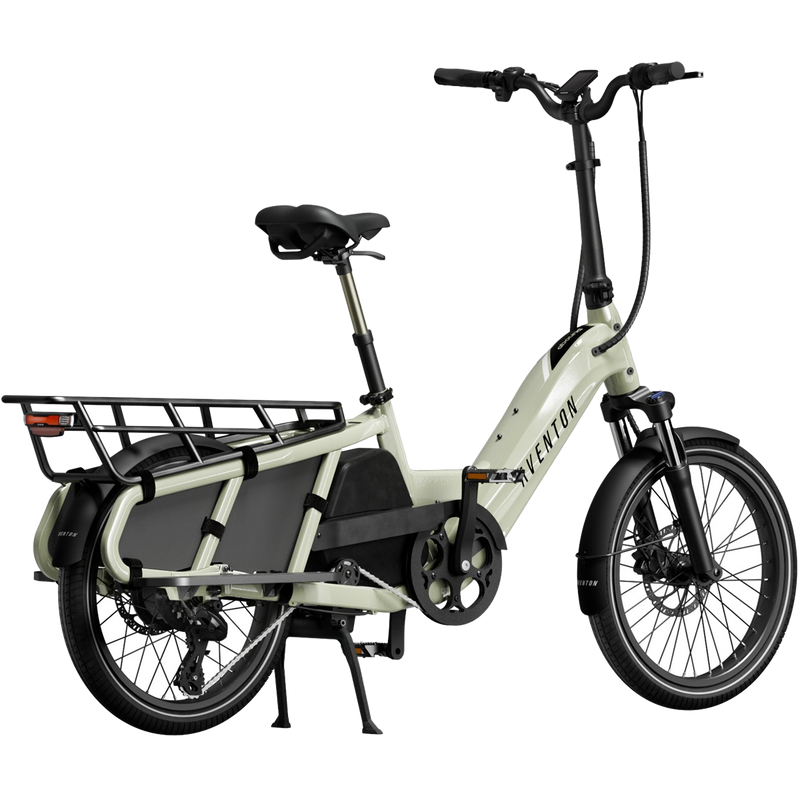

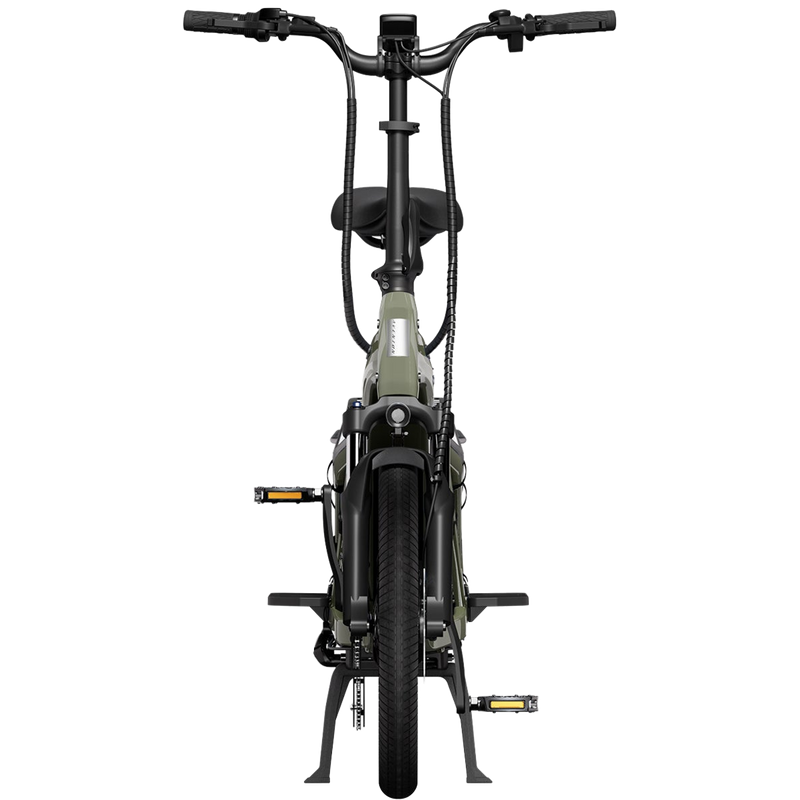

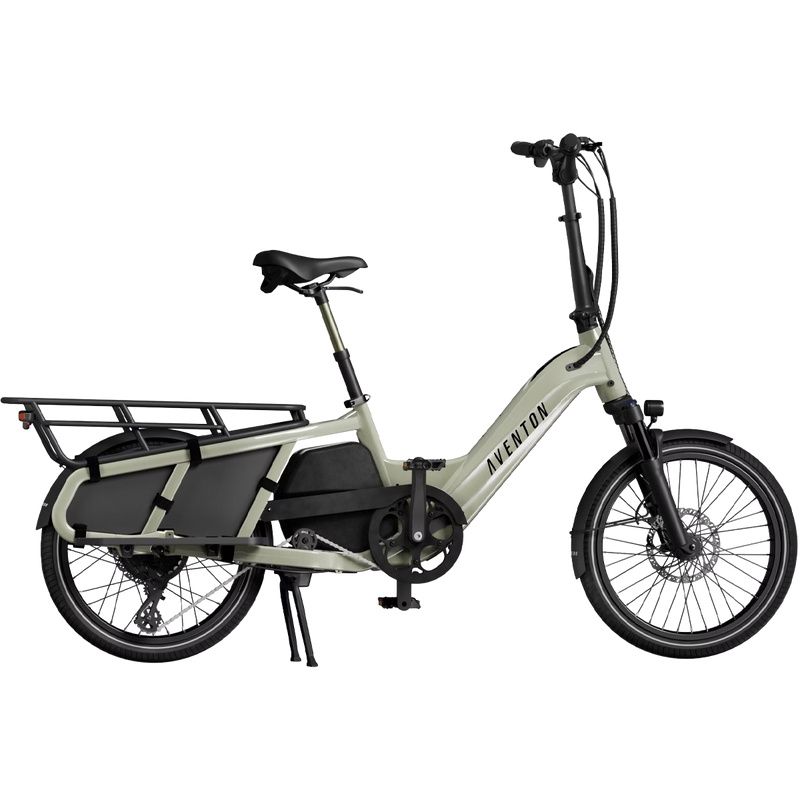

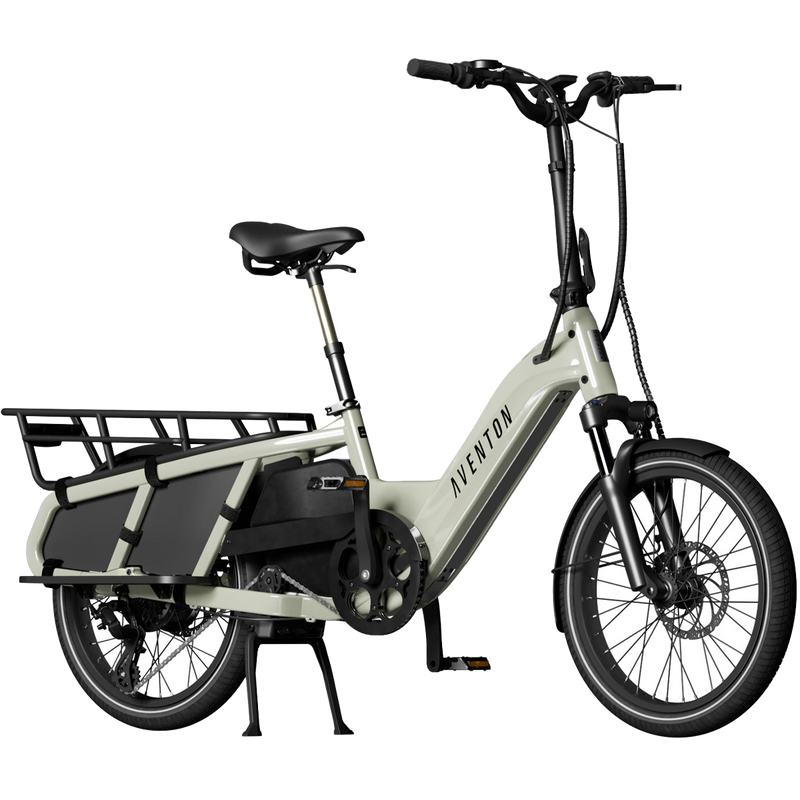

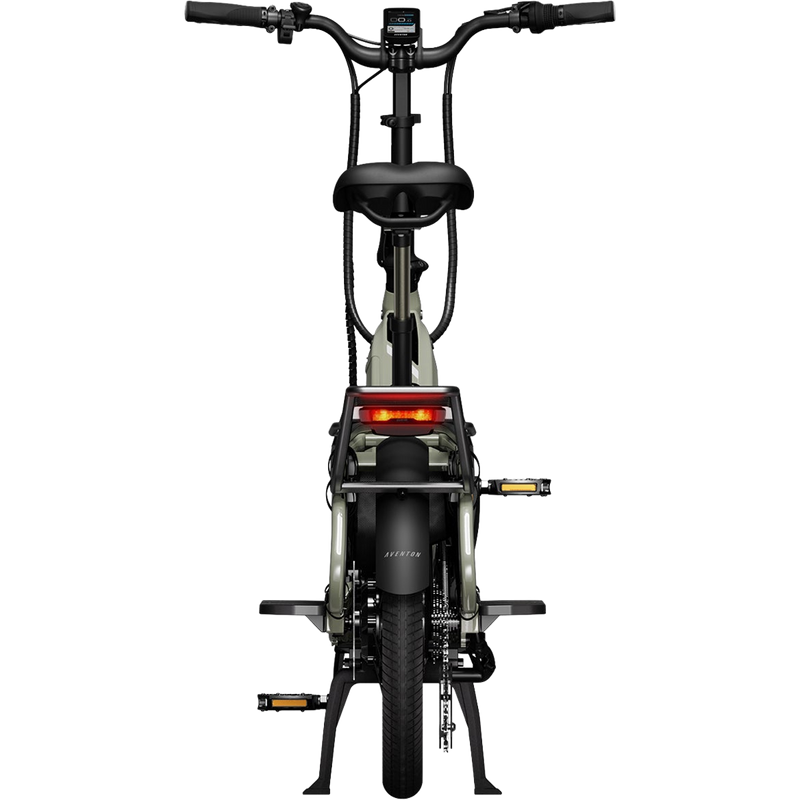

Abound Ebike
Haul it all with the Abound, Aventon’s first ever cargo ebike! Its versatility and step-through frame puts the you in you-tility. Rack it, stack it, and load the kiddos, too! Equipped with a torque sensor and powerful 750W rear hub motor, getting around with everything you need in tow has never been easier. Let Abound do most of the heavy lifting by switching between the four new pedal assist levels: eco, tour, sport, and turbo. The all-new turn signal functionality alerts others that you’re making moves, while the front headlight sheds light on the road ahead. With Abound, the possibilities are boundless.
- Backlit LCD Display
- Torque Sensor
- Front Suspension
- Fenders and Rear Rack
- Dropper Seatpost
- Storage Bag
- Footboards
- Integrated Lights with Turn Signal Functionality
- Hub Motor and Battery
- Pedal Assist and Throttle
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
| Component | Part |
|---|---|
| MOTOR | 750w (sustained), 48v Rear Hub |
| THROTTLE | Throttle on demand |
| DISPLAY | LCD Smart "Easy Read" |
| SPEED | 20 MPH |
| BATTERY | Samsung 2100 cells, 48V, 14.4AH, 678.2Wh, UL UN38.3 MSDS certification |
| SENSORS | Torque Sensor |
| PEDAL ASSIST | 4 Levels |
| CHARGER | 48V, 3 Amp Fast Charger |
| RANGE | Up to 50 miles |
| FRAME | Double-Butted Aluminum Alloy |
| WEIGHT | 82 lbs |
| PEDALS | 9/16" Alloy Platform |
| FORK | Suspension Fork with 50mm travel, with lockout |
| TOTAL WEIGHT LIMIT | 440 lbs |
| REAR RACK WEIGHT LIMIT | 143 lbs |
| CENTER STAND | Included, center mount |
| BOTTOM BRACKET | Square Taper, Sealed, Torque Sensor |
| CRANKSET | 170mm w/ 52 T |
| REAR DERAILLEUR | Shimano 7 speed |
| CASSETTE | 14-28T, 7 Speed |
| LIGHTS | Front and rear lights integrated |
| SHIFT LEVER | 7 Speed Twist |
| BRAKES | Hydraulic |
| CHAIN | 148 Link, 7 Speed |
| RIM | Double Wall Aluminum 36h Front & Rear |
| SPOKES | Black Stainless 13G Front / Iron 12G Rear |
| TUBES | Butyl Rubber, Schrader Valve |
| HUBS | Hubs: 36H Disc Nutted Front, Nutted Rear |
| TIRES | 20" x 2.4" |
| SADDLE | Aventon Saddle |
| SEATPOST | Dropper Seatpost, 30.9mm x 440mm |
| STEM | Folding, Height Adjustable, 31.8mm, 9 Degree Rise |
| SEAT CLAMP | 34.9mm Quick Release |
| HANDLEBARS | Aluminum 31.8mm, 700mm |
| HEADSET | Sealed Bearing Headset |
| GRIPS | Ergonomic Comfort |
| FOOTBOARDS | Aluminum |
| STORAGE BAG | Polyester, EVA Waterproof |
| REAR RACK/FENDERS | Included |
* Specs subject to change
