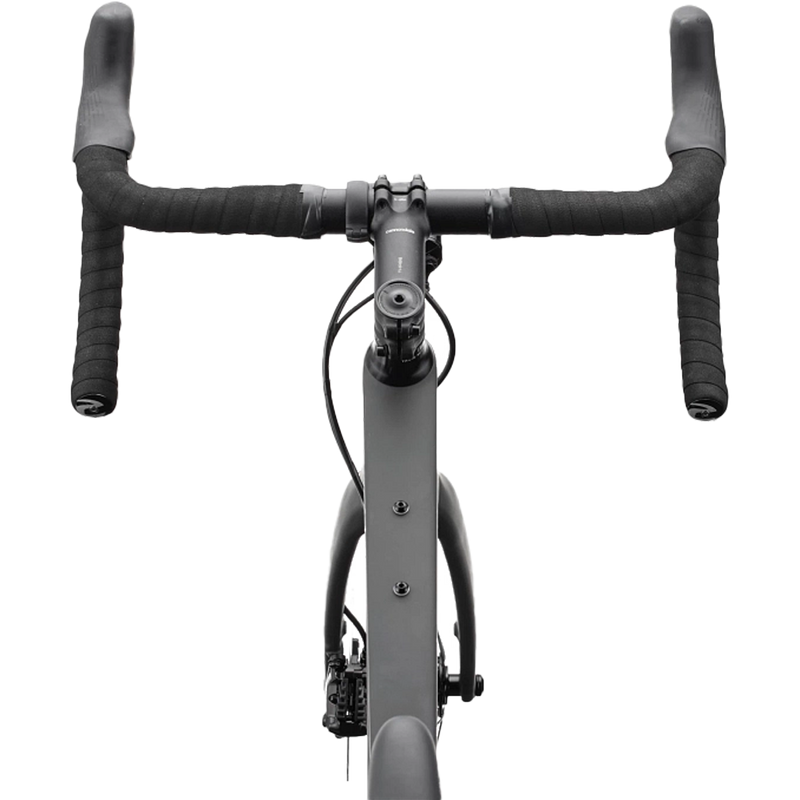

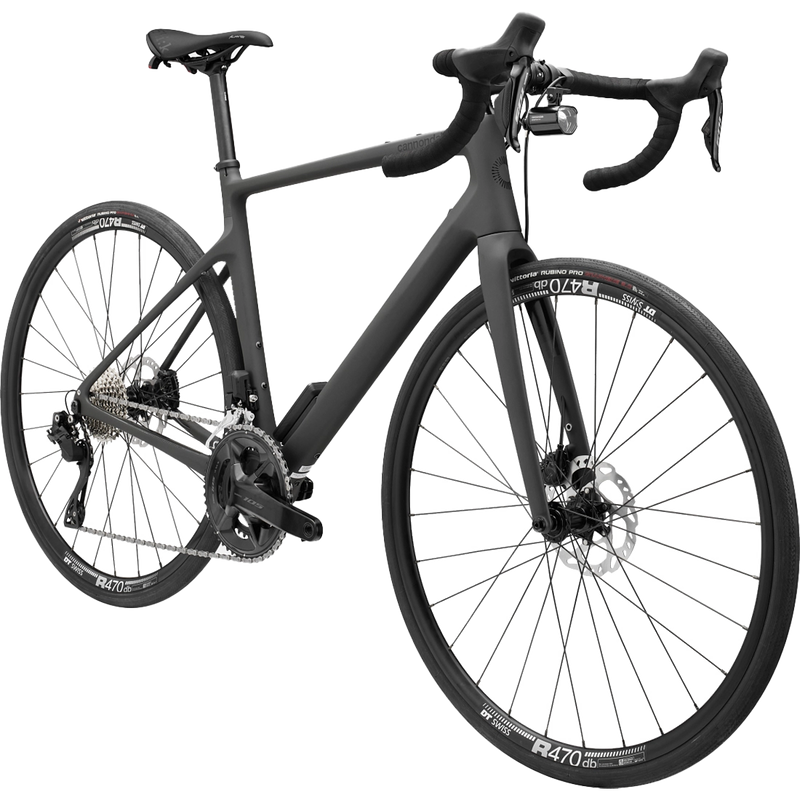

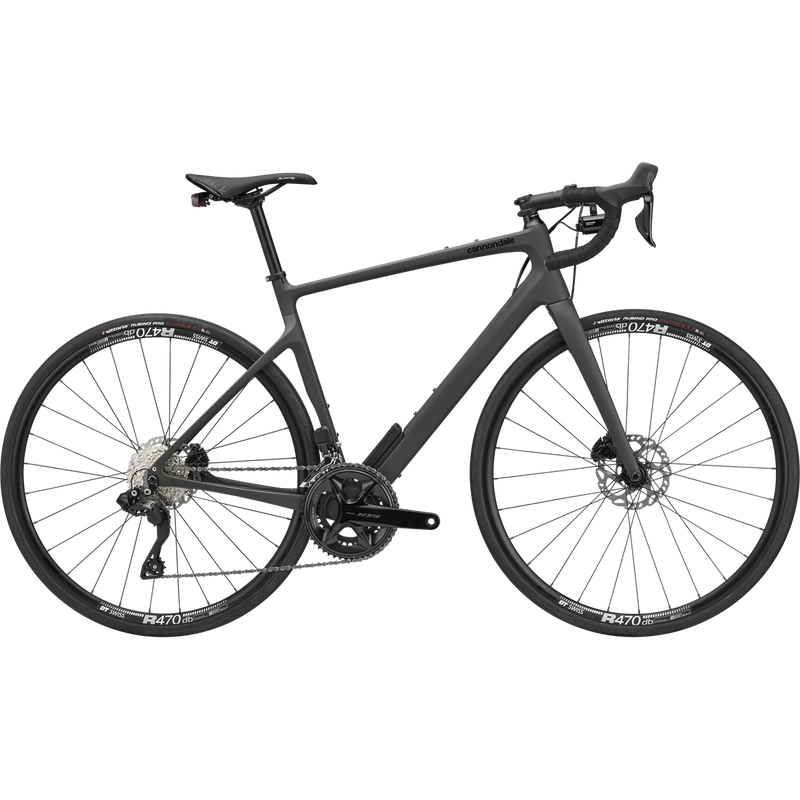

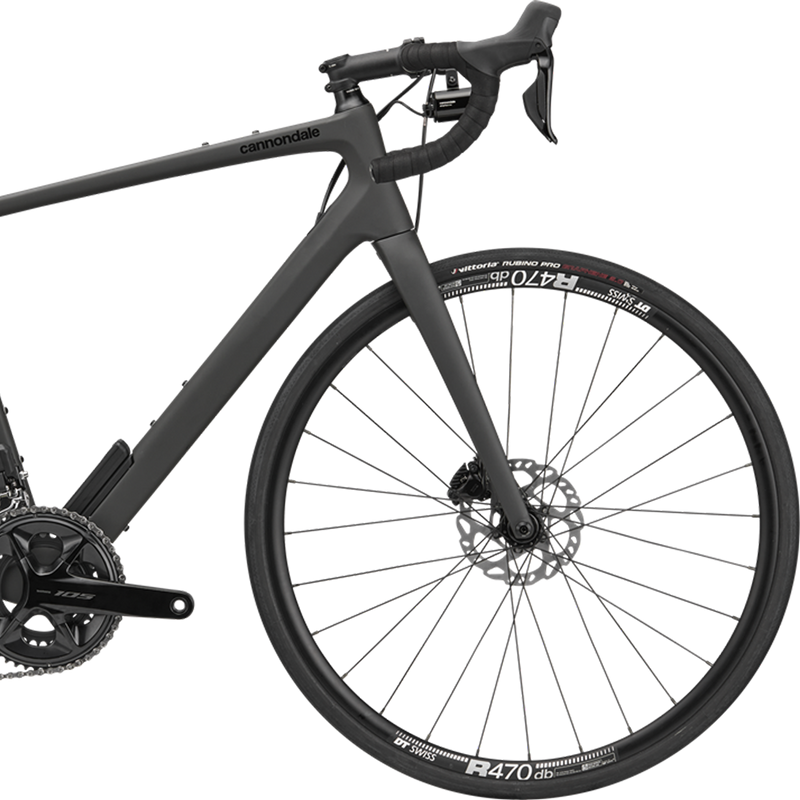

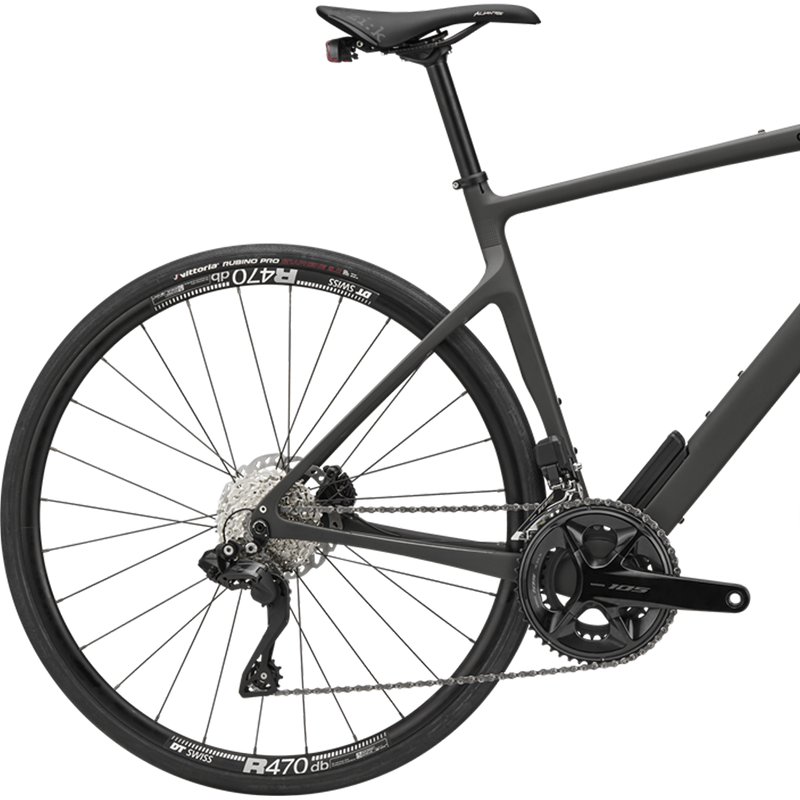

Synapse Carbon 2 LE

Minimum quantity	Discount
Buy 2 +	Get 10% discount

Minimum quantity

Discount

Buy 2 +

Get 10% discount

RIDER HEIGHT	BIKE SIZE
5'2" - 5'6"	48 cm
5'5" - 5'9"	51 cm
5'7" - 5'11"	54 cm
5'9" - 6'1"	56 cm
6'0" - 6'4"	58 cm
6'3" - 6'8"	61 cm

Brakes: Shimano 105 7170 hydraulic disc
Crank: Shimano 105 7100
Drivetrain: Shimano 105 Di2 7150
Frame: Carbon
Wheels: 700x30c

Road Reimagined. Roll smooth, roll fast, roll confident. Wherever the road takes you, roll with Synapse – Cannondale's most comfortable, all-around, up-for-anything, pure road machine. Where it thrives: The open road, up & down hills, rough pave ... READ ON

Road Reimagined. Roll smooth, roll fast, roll confident. Wherever the road takes you, roll with Synapse – Cannondale's most comfortable, all-around, up-for-anything, pure road machine.

Where it thrives: The open road, up & down hills, rough pavement
What it's built for: Comfort, handling, going long

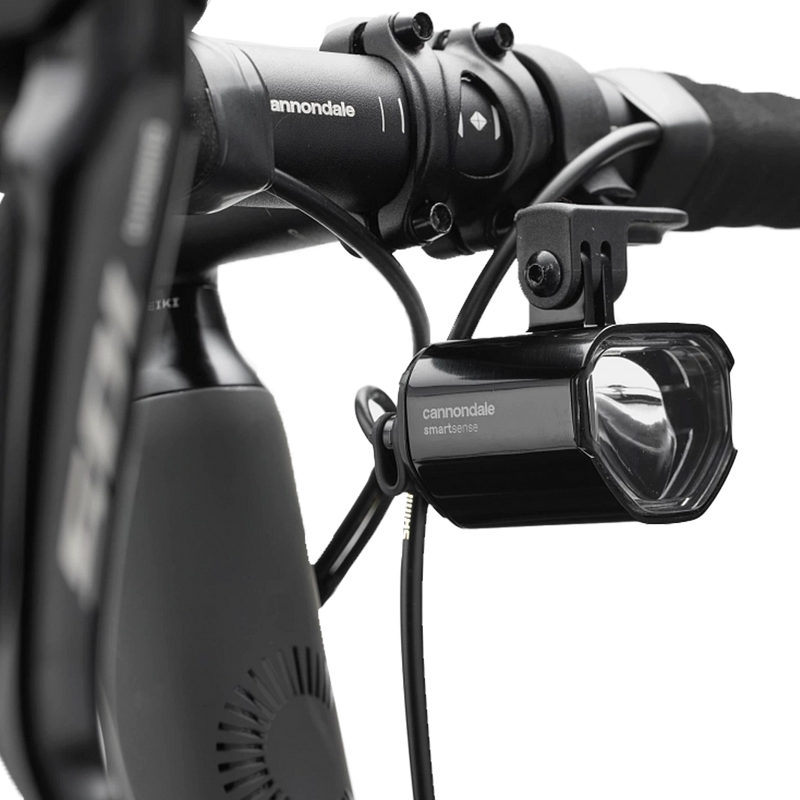

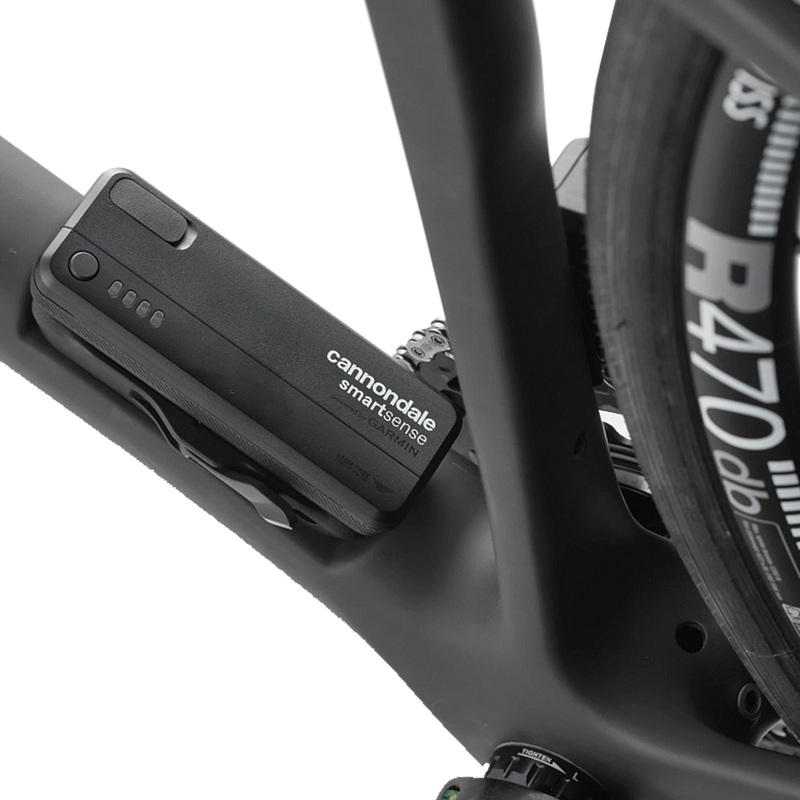

Lightweight Synapse Carbon frameset / SmartSense system with front and rear lights
Shimano 105 Di2 12-speed group w/ hydraulic disc brakes
DT Swiss R470 wheels

Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.

Returns & Price Matching

We Want you to

Lve your purchase

Love the price

We'll price-match if you find a better deal

Love it now

If you find it for less within 3 months we'll give you a gift card for the difference

Don't love it? Bring it Back

If at any time you don't love your purchase, bring it back for a refund, credit or repair

Component	Part

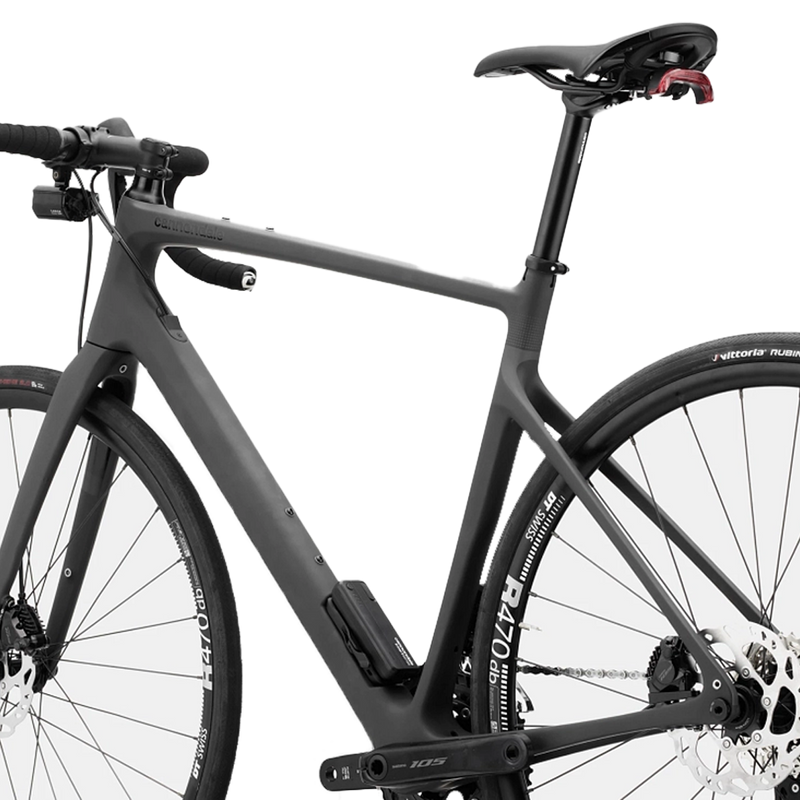

FRAME	Synapse Carbon, SmartSense enabled, Proportional Response size-specific design, BSA threaded BB, flat mount brake, 12x142mm thru axle, thru-tube internal cable routing with Switch Plate, removable fender bridge, hidden rack/fender mounts
FORK	Synapse Carbon, integrated crown race, Proportional Response size-specific design, 12x100mm thru-axle, thru-tube internal routing, hidden fender mounts
HEADSET	Synapse Sealed Bearing, integrated, 1-1/4"-1-1/8"

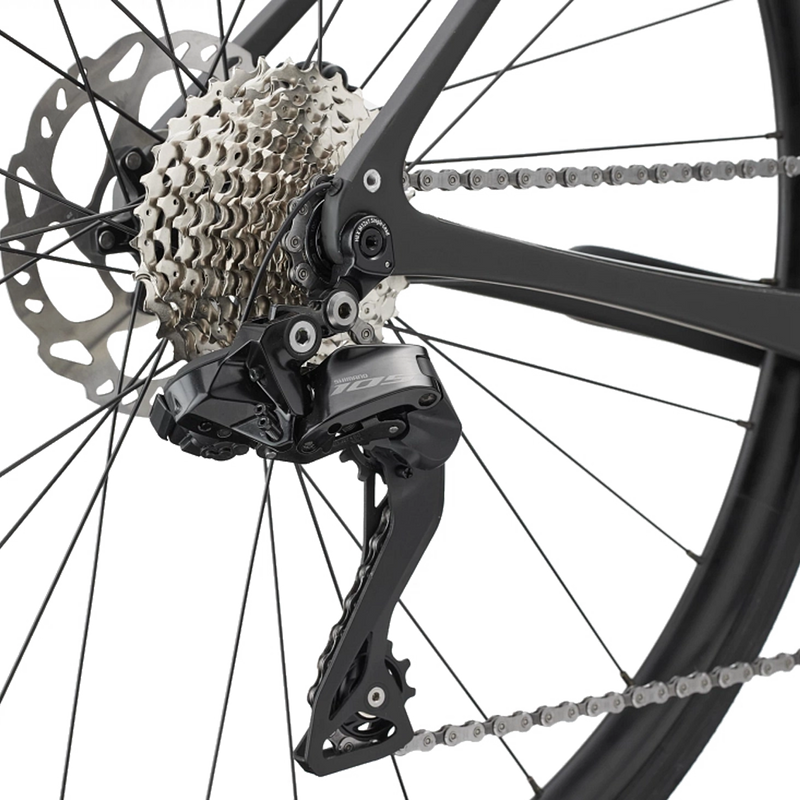

DERAILLEUR, REAR	Shimano 105 Di2 7150
DERAILLEUR, FRONT	Shimano 105 Di2 7150, braze-on
SHIFTERS	Shimano 105 Di2 7170, hydraulic disc, 12-speed
CHAIN	Shimano 105 7100, 12-speed

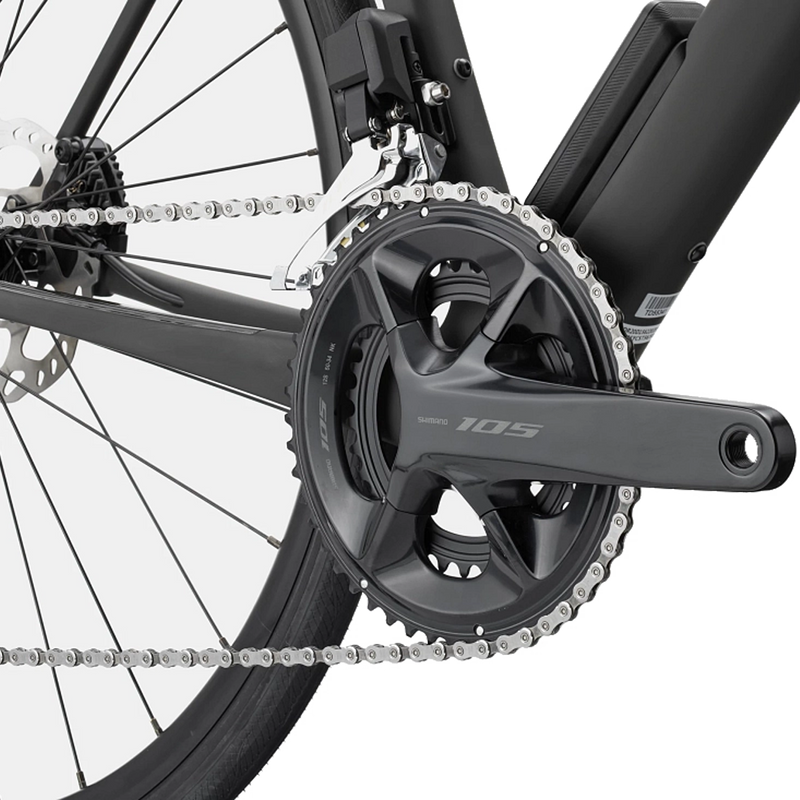

CRANK	Shimano 105 7100, BSA, 50/34
REAR COGS	Shimano 105 7100, 12-speed, 11-34
BOTTOM BRACKET	Shimano 105 R7100, BSA
BRAKES	Shimano 105 7170 hydraulic disc, 160/160mm RT70 rotors
BRAKE LEVERS	Shimano 105 Di2 7170 hydraulic disc
RIMS	DT Swiss R470 db, 28h
HUB, FRONT	Formula CL-712, 12x100mm centerlock
HUB, REAR	Formula RXC-400, 12x142mm centerlock
SPOKES	Stainless Steel, 14g
TIRES	Vittoria Zaffiro Pro Reflective, 700x30c
HANDLEBAR	Cannondale 3, 6061 Alloy, Compact
STEM	Cannondale 3, 6061 Alloy, 31.8, 7°
GRIPS	Fabric Knurl Bar Tape, 3.5mm
SADDLE	Fizik Aliante Delta, S-alloy rails
SEATPOST	Cannondale 3 SmartSense, 6061 Alloy, 27.2x350mm (48-56), 400mm (58-61)
WHEEL SENSOR	Cannondale Wheel Sensor
EXTRAS	SmartSense with Lights, Trainer-compatible thru-axle

* Specs subject to change

		48 CM	51 CM	54 CM	56 CM	58 CM	61 CM
A	SEAT TUBE LENGTH (CM)	40.7	44.3	48	52	55	59
B	TOP TUBE HORIZONTAL (CM)	53.3	54.4	55.5	56.7	57.9	59.8
C	TOP TUBE ACTUAL (CM)	51	52.1	53.3	54.7	56	57.9
D	HEAD TUBE ANGLE	71.3°	71.4°	73.1°	73.2°	73.3°	73.4°
E	SEAT TUBE ANGLE	73.0°	73.0°	73.0°	73.0°	73.0°	73.0°
F	STANDOVER (CM)	71.2	74.2	77.3	78.7	83.3	86.8
G	HEAD TUBE LENGTH (CM)	10.9	13	14.3	16.4	18.7	21.8
H	WHEELBASE (CM)	99.1	100.2	98.7	99.8	101.1	102.8
I	FRONT CENTER (CM)	58.8	59.8	58.3	59.4	60.6	62.3
J	CHAIN STAY LENGTH (CM)	41.5	41.5	41.5	41.5	41.5	41.5
K	BOTTOM BRACKET DROP (CM)	7.5	7.5	7.3	7.3	7	7
L	BOTTOM BRACKET HEIGHT (CM)	27	27	27.2	27.2	27.5	27.5
M	FORK RAKE (CM)	5.5	5.5	4.5	4.5	4.5	4.5
N	TRAIL (CM)	5.9	5.8	5.8	5.7	5.6	5.6
O	STACK (CM)	53	55	57	59	61	64
P	REACH (CM)	37.1	37.6	38.1	38.7	39.3	40.2
